Copper Split Bolt Connector 8 AWG STR – 12 AWG SOL | Tap to 16 | 610-00812
Shipping calculated at checkout
SKU: 610-00812
Out of stock
Open here

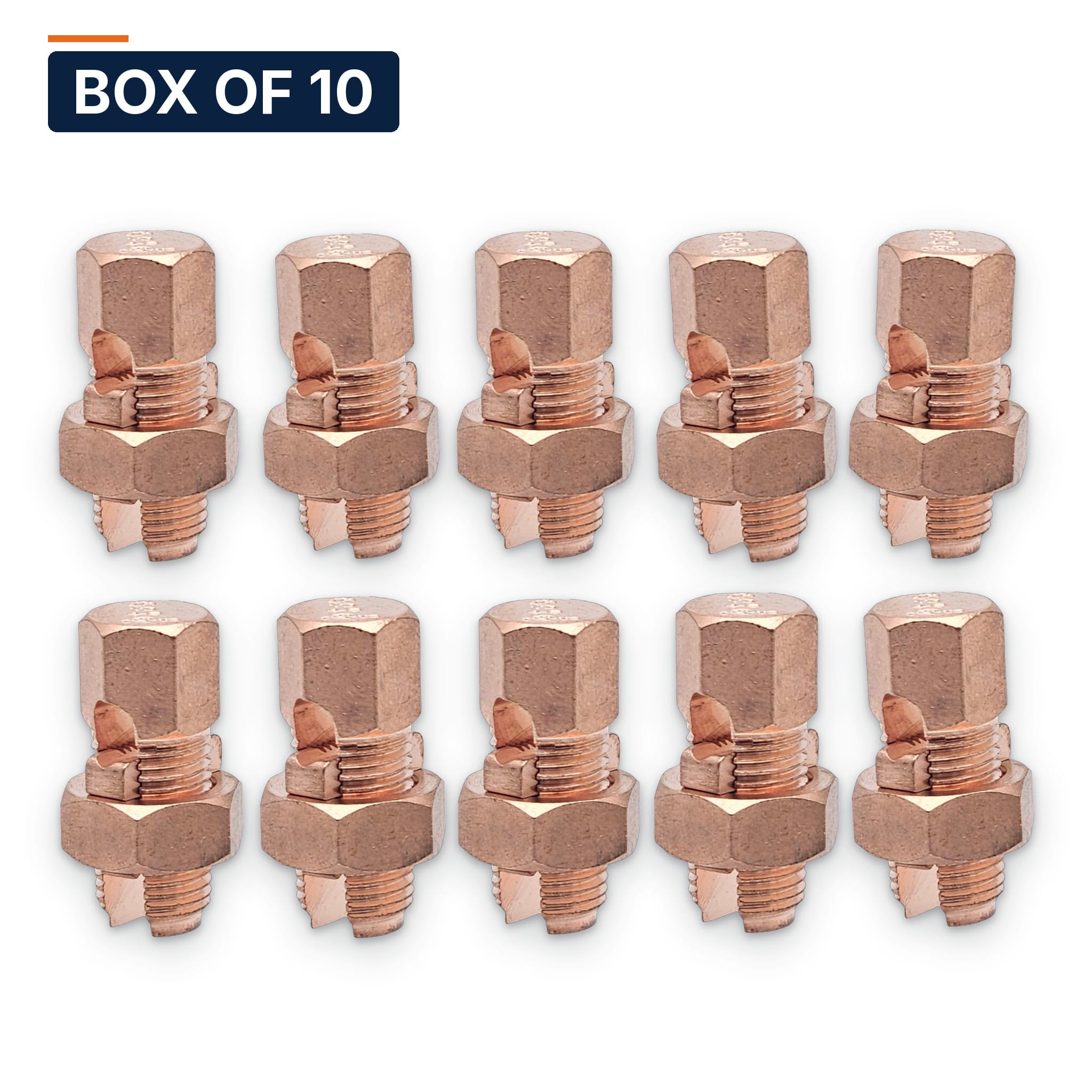

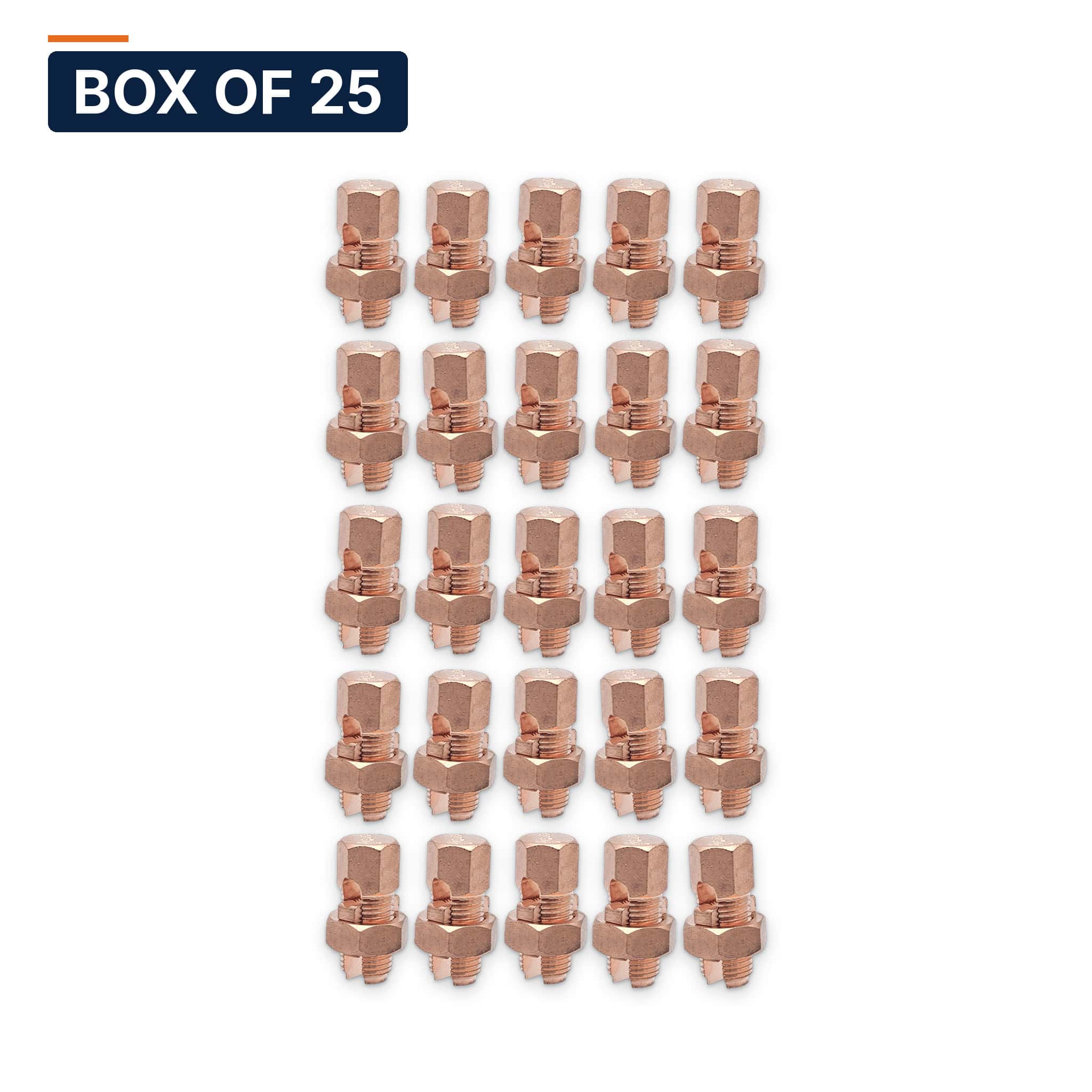

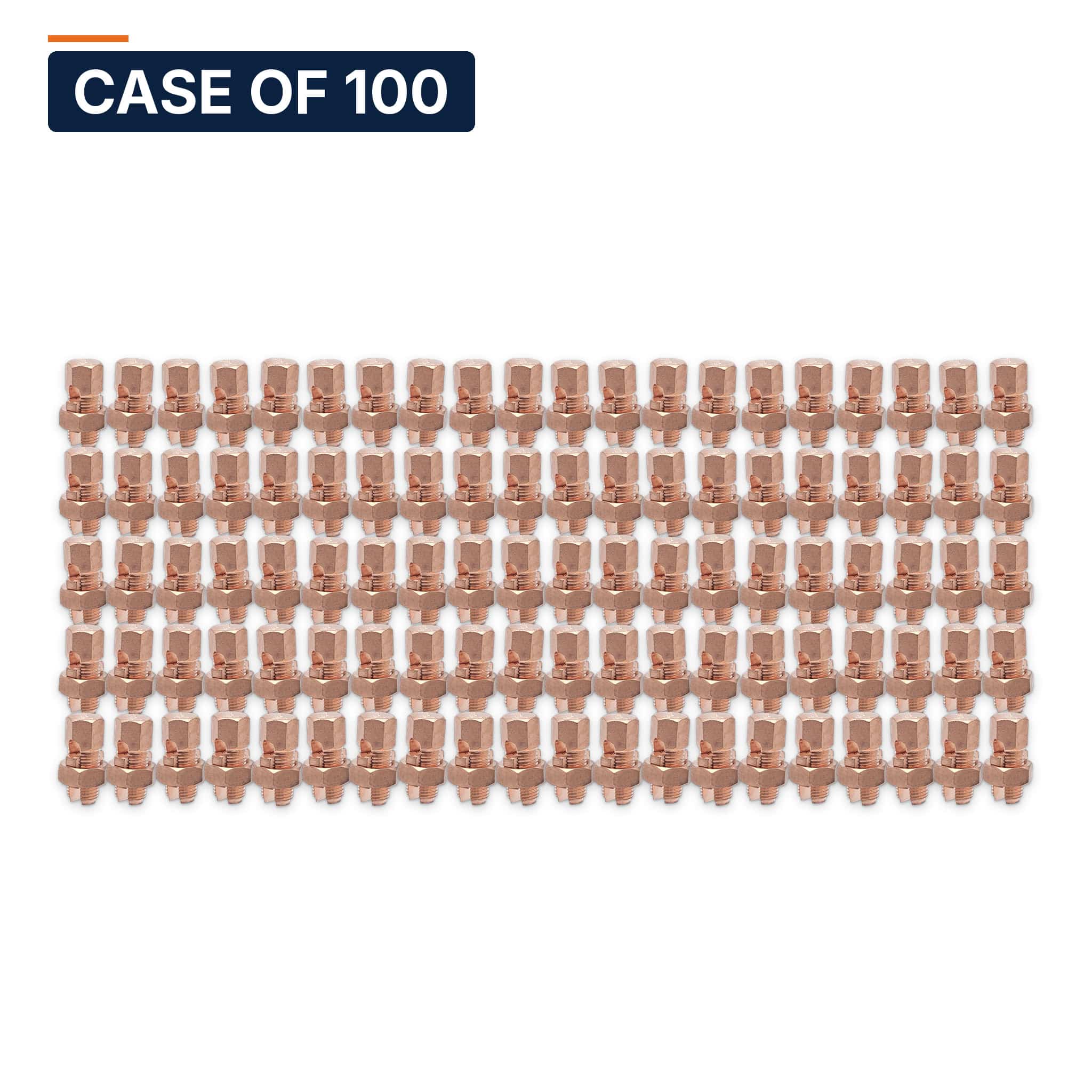

CT 610-00812 — copper-alloy split bolt connector for 8 AWG stranded through 12 AWG solid copper, minimum tap 16 AWG beside a full-size run. Wrench-installed splice or tap for grounding, bonding, and small feeder work. Direct cross for Burndy SERVIT® KS15, ILSCO IK-8N, and Blackburn 8H.
| Part No. | 610-00812 |
|---|---|
| Equal main & tap | 8 AWG STR – 12 AWG SOL Cu |
| Min. tap with max. main | 16 AWG |
| Material | High-strength copper alloy body, bolt and pressure bar |
| Rating | 600 V, 90°C; UL 486A/B and UL 467 class; direct burial in earth or concrete |
| Torque (max. conductors) | 80 in-lb — follow connector marking |
| Weight / HS | 0.06 lb / 8536.90.4000 |
Cross-reference
| Manufacturer | Part No. | Published range |
|---|---|---|
| Burndy SERVIT® | KS15 | 10–8 STR, tap 14 |
| ILSCO | IK-8N (IK-8) | 8–16 STR, tap 16 |
| Blackburn / ABB | 8H, 8H3 | 8 STR–10 SOL; 8H3: 8 STR–12 SOL, tap 16 |
| NSI | N-8* | max-size naming; verify range |
Cross-references identify copper-alloy split bolts of equivalent published range; dual-rated Cu/Al bodies (KSU, SK, HPS) are a different class. *Pattern-matched; confirm on datasheet.
Where it's used
- Bonding jumpers and equipment grounds on #8–#12 copper
- Telecom and CATV ground taps to ground bars and halo rings
- Repair splices in accessible boxes (NEC 300.15) where a crimp tool is not on site
How to install
Strip, wire-brush bright, seat the run in the bolt saddle with the tap alongside, hand-run the nut, torque to the marked value, then insulate to the conductor's rating per NEC 110.14(B) (rubber tape + vinyl, or a snap-on split bolt cover). Not permitted for buried or encased grounding electrode conductor splices (NEC 250.64(C)) — use irreversible compression there. Full guide: Split Bolt Connectors: Sizing, Torque, Taping, and the NEC; brand chart: Split Bolt Cross-Reference.
Stocked in Oxnard, CA — same-day shipping on orders by 2PM ET. Volume and trade pricing through the trade desk.
