6-Position Bolt-Down Fuse Block for MIDI / MEGA / ANL Fuses | 12–48V DC, Sealed Cover
Shipping calculated at checkout
SKU: 191286330:3231480#400 A;210200070:-2#12V-48V
10000 in stock
Open here

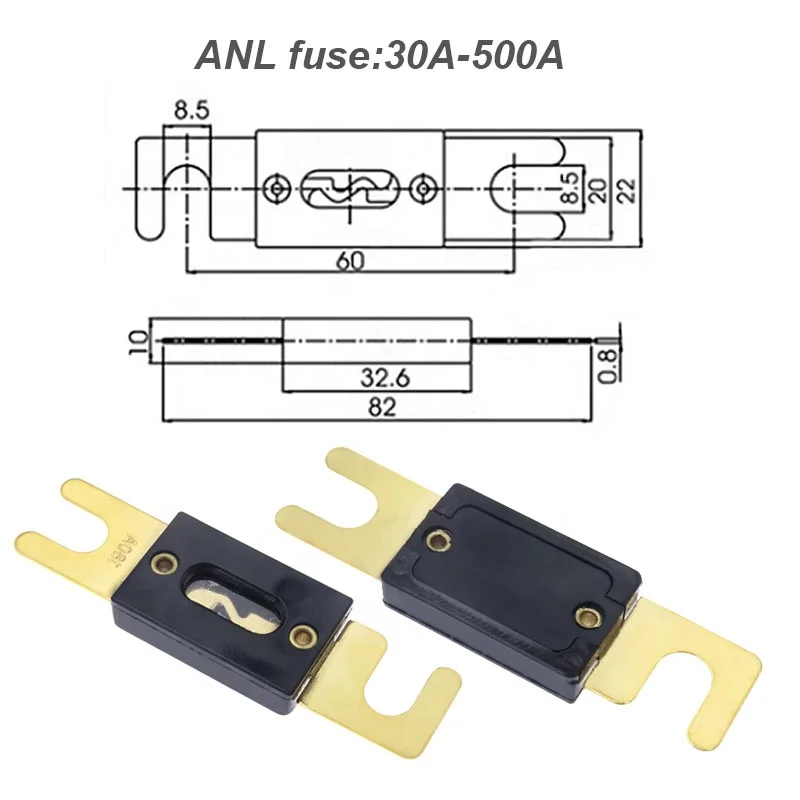

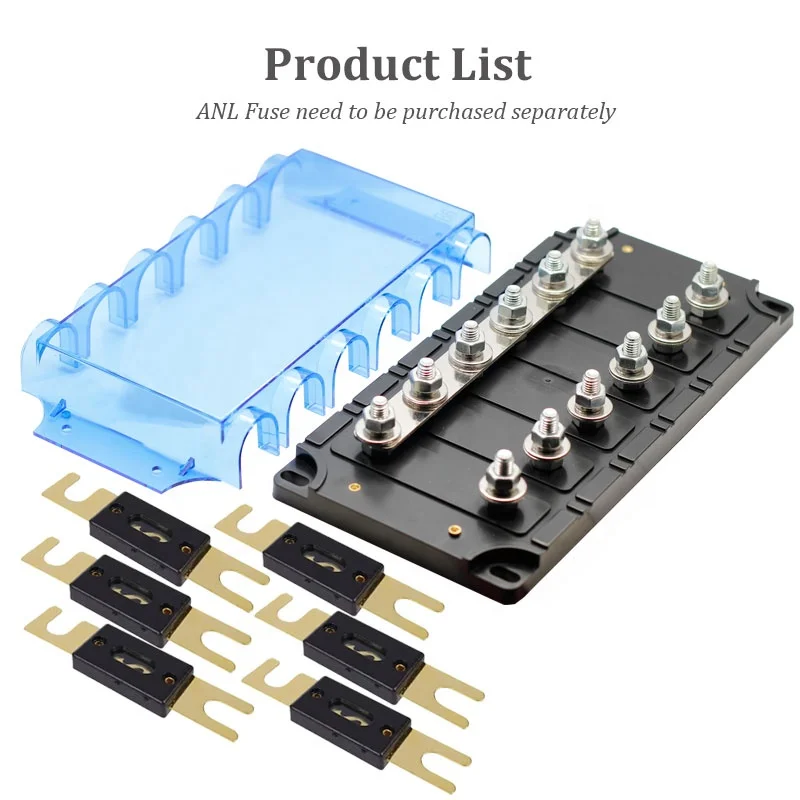

6-position bolt-down fuse block for MIDI / ANS / MEGA / ANL bolt-on fuses, 12–48 V DC, sealed cover. Six independently fused outputs on M5 studs from a common input bus, for distributing a main feed to inverters, chargers, DC-DC units, and thruster or winch circuits. Ships with one fuse rating installed per the selected option (30–400 A). Class cross for the Blue Sea Systems MIDI/AMI and MEGA/AMG fuse block families.
| Options | 30, 40, 50, 100, 250, or 400 A fuse installed (bolt-down MIDI/ANS/MEGA class) |
|---|---|
| Positions | 6 |
| Voltage | 12–48 V DC (fuse elements rated 32 V unless MRBF/Class T) |
| Terminals | M5 studs per position; main input stud |

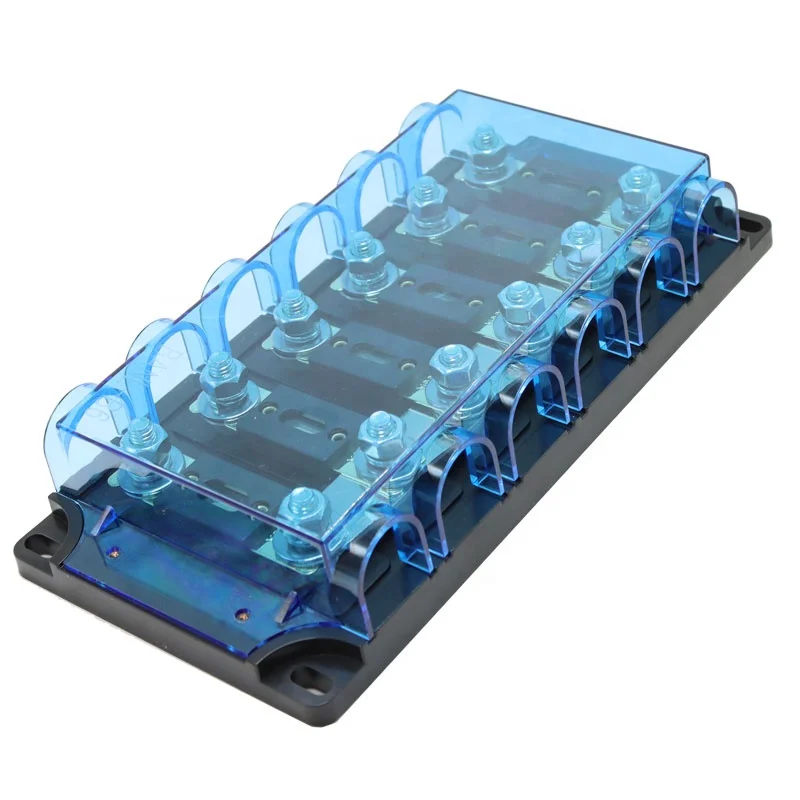

| Body | Flame-retardant thermoplastic base, gasketed clear cover (splash-resistant) |
Cross-reference
| Manufacturer | Family | Notes |
|---|---|---|
| Blue Sea Systems | MIDI/AMI fuse blocks (5006 class); MEGA/AMG (5001 class) | Single-position blocks; this unit consolidates six |
| Eaton Bussmann | MIDI / MEGA fuse holders (HMEG / HMIDI class) | Bolt-on fuse holders |
Family-level crosses by fuse type; verify fuse element voltage and interrupt rating for the bank.
Where it's used
- Distribution from a main battery feed to several 30–400 A loads on vans, RVs, boats, and solar systems
- Replacing a cluster of single MIDI/MEGA holders with one panel
- Lead-acid and AGM banks up to 32 V nominal fuse rating; use MRBF or Class T at the battery on lithium banks
How to install

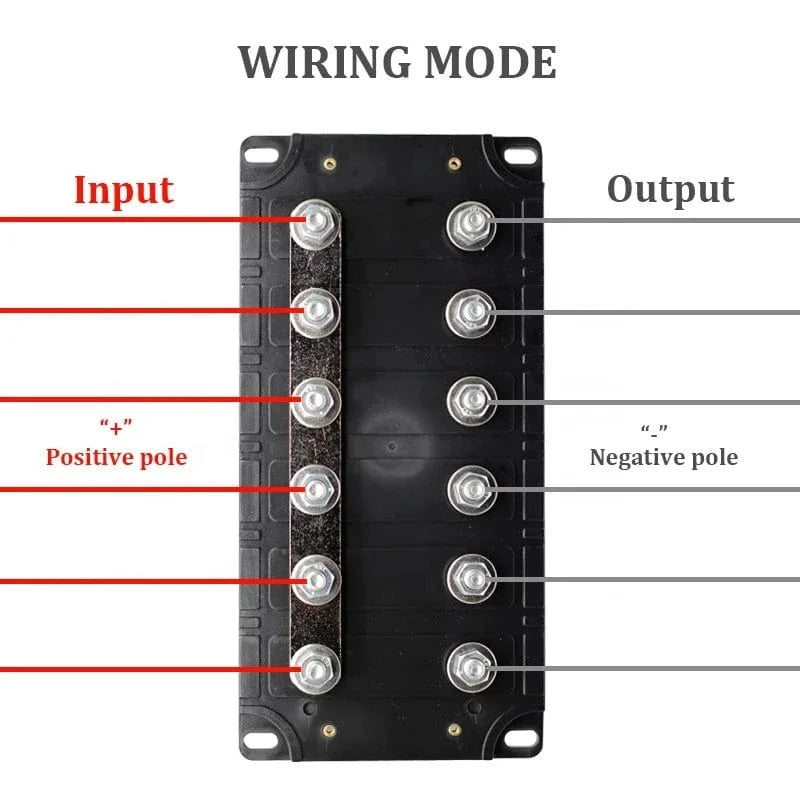

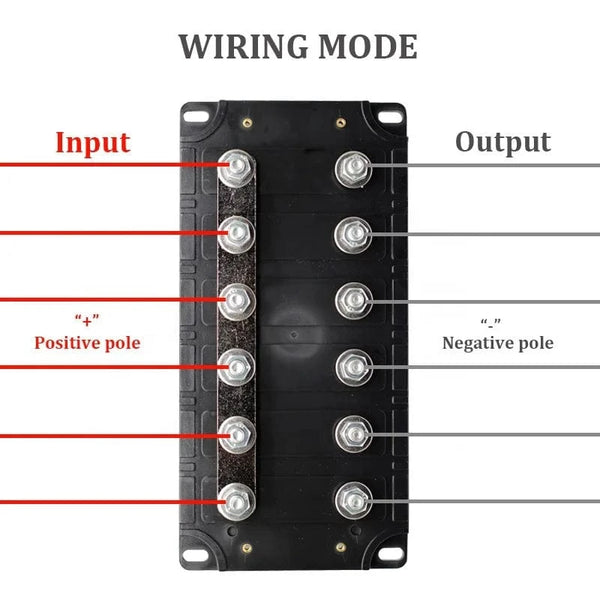

Mount flat, feed the input stud from a fuse within 7 in of the battery (ABYC E-11), land each load lug under its fuse with the supplied hardware, torque M5 studs to 40 in-lb, and keep the cover fitted. Guide: DC Power Distribution for 12/24/48 V Systems.
Ships from Oxnard, CA. Volume and trade pricing through the trade desk.
