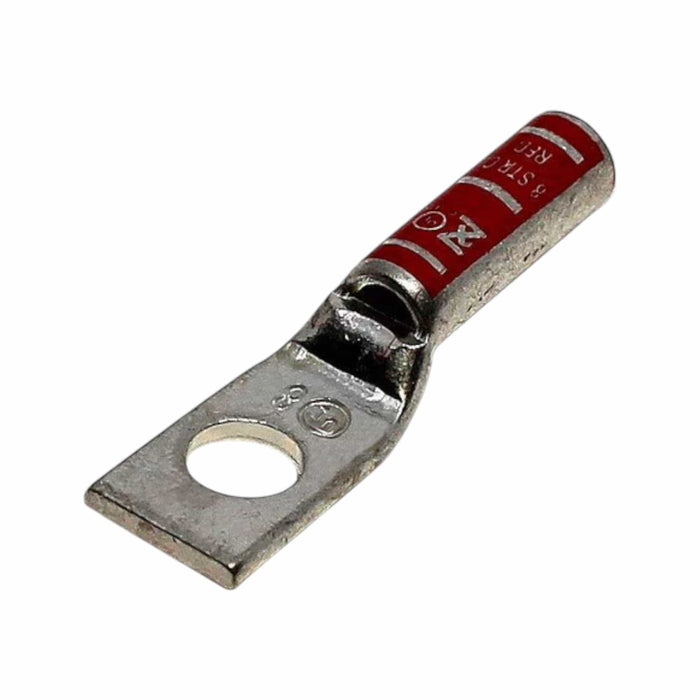

Copper Long Barrel One Hole Compression Lug 8 AWG 5/16-Inch Bolt Size, 25-Pack
Shipping calculated at checkout
SKU: 210-98064B-25
40 in stock
Open here
The Conversions Tech is a reliable copper compression lug designed for secure electrical connections. Featuring an 8 AWG conductor size, a 5/16-inch bolt size, and a long barrel, this tin-plated lug ensures optimal performance and durability in a variety of applications. The red color code simplifies identification, enabling efficient installations. This high-performance connector is an excellent choice for professionals seeking a dependable, long-lasting solution for their electrical systems.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-98064B-25 |
| Manufacturer catalog number | LB8516 |
| Conductor | 8 AWG copper, Class B stranded through M (flex-rated) |
| Stud | 5/16 in, 1 hole |
| Barrel | Long, 0.81 in (E), chamfered entry, inspection window |
| Overall length | 1.69 in (B) |
| Tongue width | 2.169 Inch |
| Tongue thickness | 0.328 Inch |
| Die | Index 21, Red, two crimps |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 50 A at 75 C |
| Color code | Red |
Key Features
- Reliable Copper Construction: Made from high-quality copper to ensure excellent electrical conductivity and long-lasting reliability.
- 8 AWG Conductor Size: Designed for 8 AWG wires, making it suitable for small to medium-sized electrical systems.
- 5/16 Inch Bolt Size: Features a 5/16-inch bolt hole, providing a secure and stable connection to terminals.
- Long Barrel Design: The long barrel enhances pull-out strength and allows for easier wire insertion, ensuring a solid and dependable connection.
- Tin Plating: Coated with tin plating to prevent corrosion and improve the lug's durability, ensuring reliable performance in various environments.
- Red Color Code: The red color code facilitates easy identification during installations, enhancing efficiency and reducing errors.
-
Efficient Installation: Designed for quick and reliable installation, making it an ideal choice for both professional electricians and contractors.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Red |
| Overall Length | 1.882 Inch |
| Barrel Length | 0.812 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 8 AWG |
| Stud Size | 5/16 Inch |
| Die Index | I-21 |
| Pad Size | 0.875 Inch L X 0.593 Inch W X 0.093 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| Insulation ID/OD | 0.179 Inch ID X 0.272 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
Specifications
| Part Number | 210-98064B |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
