1-Hole Compression Lug 8 AWG 5/16" Stud | 35kV 90°C UL/CE
Shipping calculated at checkout
SKU: 210-98002A
850 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

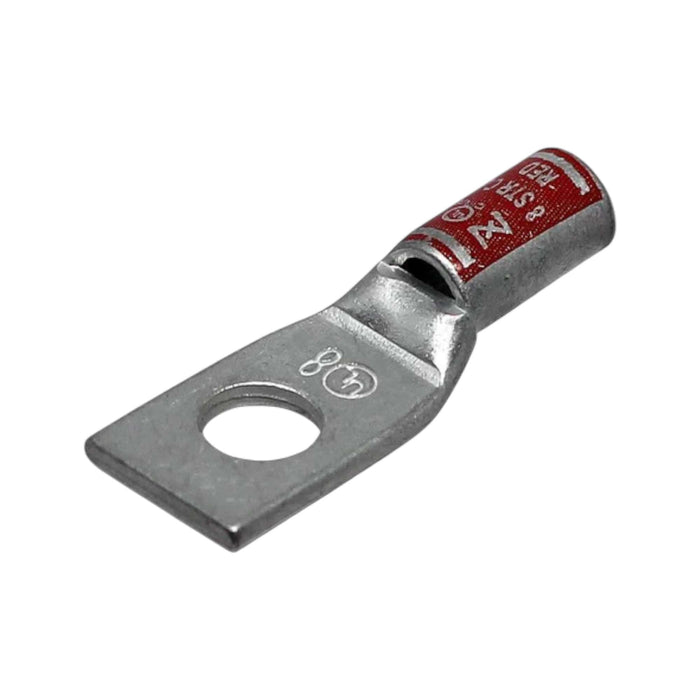

The Conversions Tech 1-Hole Compression Lug is engineered for terminating 8 AWG copper conductors in high-voltage electrical systems. The short barrel design with chamfered entry streamlines wire insertion, while the integrated sight window enables visual confirmation of proper conductor seating. Electro-tin-plated copper construction delivers conductivity and corrosion resistance for utility, industrial, and commercial applications rated up to 35 kV.
Specifications
- Wire Size: 8 AWG copper
- Stud/Bolt Size: 5/16"
- Material: Seamless electro-tin-plated copper
- Voltage Rating: 35 kV max
- Current Rating: 50A max
- Temperature Rating: 90°C
- Color Code: Red
- Overall Length (L): 34.9mm (1.40")
- Neck Length (L1): 19.1mm (0.75")
- Outer Diameter (D): 13.7mm (0.54")
- Inner Diameter (D1): 7.1mm (0.28")
- Hole Diameter (D2): 4.8mm (0.19")
- Width (B): 12.7mm (0.50")
- Hole Spacing (E): 8.8mm (0.35")
- Thickness (F): 1.5mm (0.06")
- Certifications: UL Approved, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to standard one-hole short barrel compression lugs from major manufacturers. Form factor matches industry-standard dimensions for 8 AWG / 5/16" stud applications at lower distributor cost.
FAQ
What compression tool die size is required for this lug?
Use the die size specified by your compression tool manufacturer for 8 AWG copper short barrel lugs. Verify die index before crimping.
Is this lug suitable for outdoor or wet location use?
The electro-tin-plated copper construction provides corrosion resistance. For specific environmental applications, verify compatibility with local codes and installation requirements.
Does the sight window indicate proper crimp completion?
The sight window enables visual confirmation of conductor insertion depth. Final crimp quality must be verified with proper tooling and die selection per manufacturer instructions.
