Two-Hole Long Barrel Compression Lug 6 AWG 1/2" Stud | 90°C 65A
Shipping calculated at checkout
SKU: 210-09955
195 in stock
Open here

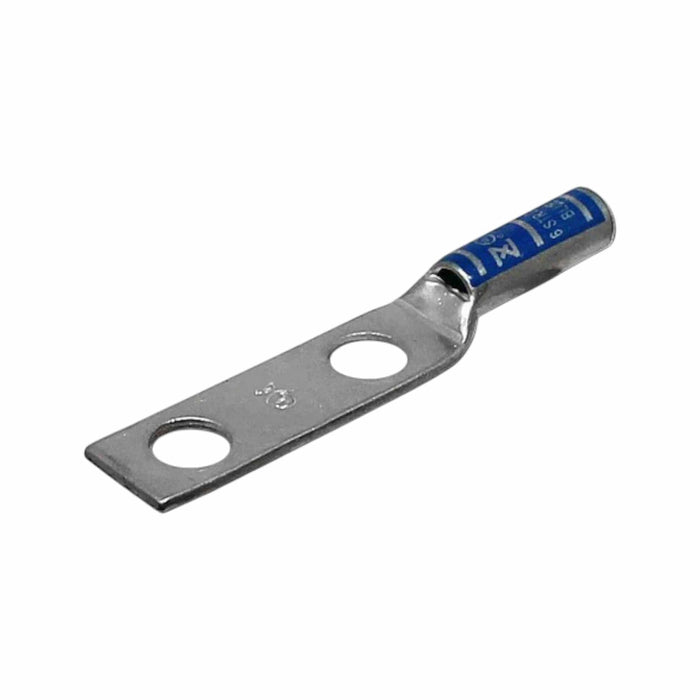

The Conversions Tech two-hole long barrel compression lug terminates 6 AWG copper conductors on 1/2-inch studs. The tin-plated copper construction and extended barrel length maximize conductivity and mechanical retention for industrial, commercial, and utility electrical connections. Blue color coding aids field identification during installation.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-09955 |
| Manufacturer catalog number | LT612 |
| Conductor | 6 AWG copper, Class B stranded through M (flex-rated) |
| Stud | 1/2 in, 2 hole, 1.75 in center spacing |
| Barrel | Long, 0.90 in (E), chamfered entry, inspection window |
| Overall length | 3.91 in (B) |
| Tongue width | 0.593 Inch |
| Tongue thickness | 0.087 Inch |
| Die | Index 24, Blue, two crimps |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 65 A at 75 C |
| Color code | Blue |
Specifications
- Conductor Size: 6 AWG
- Stud Size: 1/2 Inch
- Material: Tin-Plated Copper
- Color Code: Blue
- Overall Length (L): 99.2mm (3.91 Inches)
- Barrel Length (L1): 73.2mm (2.88 Inches)
- Additional Length (L2): 44.5mm (1.75 Inches)
- Diameter (D): 17.8mm (0.70 Inches)
- Diameter 1 (D1): 7.9mm (0.31 Inches)
- Diameter 2 (D2): 5.9mm (0.23 Inches)
- Width (B): 22.9mm (0.90 Inches)
- Pad Hole Diameter (E): 13mm (0.51 Inches)
- Pad Hole Spacing (F): 1.2mm (0.05 Inches)
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Maximum Amp Rating: 65A
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to standard two-hole long barrel compression lug configurations from major manufacturers. Conversions Tech lugs provide comparable electrical and mechanical performance at reduced cost for large-scale procurement.
FAQ
What crimping tool is required for this 6 AWG long barrel lug?
Use a compression tool with dies rated for 6 AWG copper and long barrel configurations. Verify die compatibility with the 73.2mm barrel length and 17.8mm outer diameter before crimping.
Does the 90°C rating apply to all installation conditions?
The 90°C rating applies to the lug material under standard conditions. Final ampacity depends on conductor insulation rating, ambient temperature, and bundling per NEC Article 310.
Why specify a two-hole lug versus single-hole for 6 AWG?
Two-hole mounting provides superior mechanical stability and torque retention on 1/2-inch studs, reducing loosening from vibration or thermal cycling in industrial environments.
Specifications
| Part Number | 210-09955 |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
