Long Barrel Two-Hole Compression Lug 6 AWG 1/4" Bolt | 90°C 35kV 65A UL
Shipping calculated at checkout
SKU: 210-09950
844 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

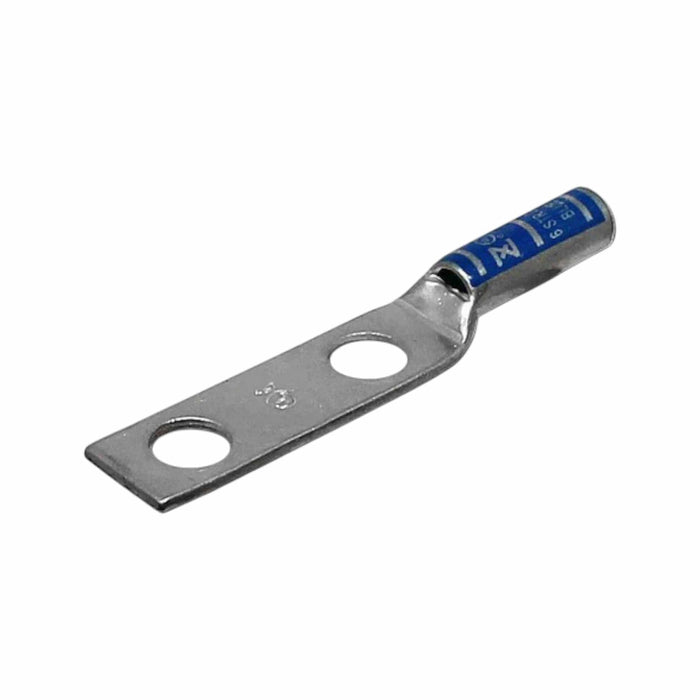

Long barrel two-hole compression lug for 6 AWG copper conductors. Tin-plated copper construction with 1/4-inch bolt size and 3/4-inch hole spacing. Designed for industrial, commercial, and residential electrical connections requiring secure mechanical termination and high current-carrying capacity. The extended barrel length provides increased contact surface area for enhanced conductivity and pull-out strength when properly crimped.
Specifications
- Conductor Size: 6 AWG
- Bolt/Stud Size: 1/4 inch
- Number of Holes: 2
- Hole Spacing: 3/4 inch
- Material: Tin-plated copper
- Color Code: Blue
- Overall Length (L): 57.2mm (2.25 inches)
- Barrel Length (L1): 31.1mm (1.23 inches)
- Additional Length (L2): 12.7mm (0.50 inches)
- Diameter (D): 11.4mm (0.45 inches)
- Diameter 1 (D1): 7.9mm (0.31 inches)
- Diameter 2 (D2): 5.9mm (0.23 inches)
- Width (B): 22.9mm (0.90 inches)
- Pad Hole Diameter (E): 7.1mm (0.28 inches)
- Pad Hole Spacing (F): 1.9mm (0.08 inches)
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 65A
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent form factor to long-barrel two-hole compression lugs from major manufacturers. Suitable replacement for comparable 6 AWG 1/4-inch bolt two-hole lugs used in switchgear, panelboard, and equipment termination applications.
FAQ
What crimp die is required for this long barrel lug?
Use a crimping tool and die set specified for 6 AWG long barrel compression lugs. The extended barrel length requires full-length crimping to achieve rated pull-out strength and electrical performance per UL 486A-486B.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating permits full use of 6 AWG copper ampacity per NEC Table 310.16 (75°C or 90°C column as applicable). The 65A maximum amp rating aligns with standard 6 AWG current-carrying capacity.
Can this lug be used for medium voltage terminations?
The 35 kV voltage rating supports medium voltage applications with proper insulation and clearances. Verify specific installation requirements including phase-to-phase and phase-to-ground spacing for your system voltage.
