Long Barrel Two-Hole Compression Lug 6 AWG 3/8" Stud | 90°C 35kV 65A UL
Shipping calculated at checkout
SKU: 210-09953
970 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

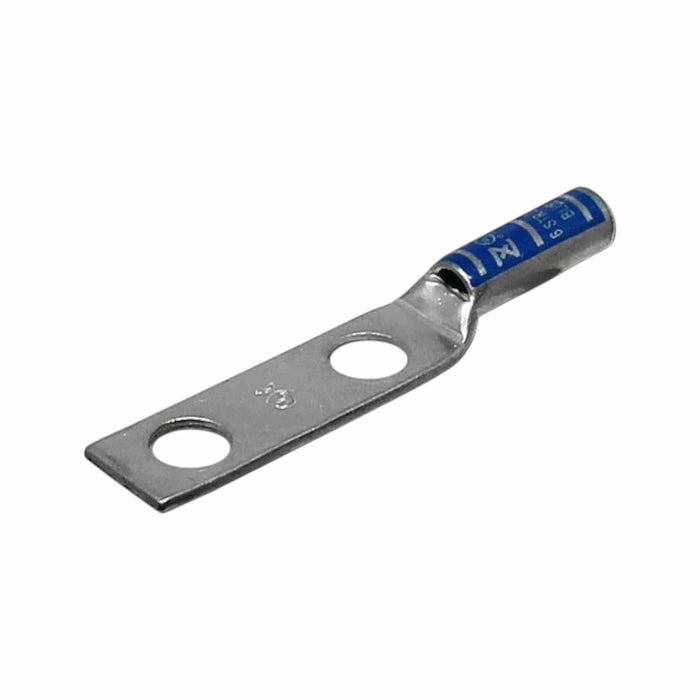

Long barrel two-hole compression lug for 6 AWG copper conductor. Features a 3/8-inch stud size with dual mounting holes on 3/4-inch centers. Tin-plated copper construction with blue color code for wire size identification. Rated 90°C, 35kV, 65A maximum. Used in industrial, commercial, and residential electrical systems requiring secure terminations with mechanical redundancy.
Specifications
- Conductor Size: 6 AWG
- Stud Size: 3/8 Inch
- Number of Holes: 2
- Hole Spacing: 3/4 Inch (19.05mm)
- Material: Tin-Plated Copper
- Color Code: Blue
- Overall Length (L): 91.6mm (3.61 Inches)
- Barrel Length (L1): 65.5mm (2.58 Inches)
- Additional Length (L2): 44.45mm (1.75 Inches)
- Diameter (D): 15.2mm (0.60 Inches)
- Diameter 1 (D1): 7.9mm (0.31 Inches)
- Diameter 2 (D2): 5.9mm (0.23 Inches)
- Width (B): 22.9mm (0.90 Inches)
- Pad Hole Diameter (E): 10.4mm (0.41 Inches)
- Pad Hole Spacing (F): 1.4mm (0.06 Inches)
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Maximum Amp Rating: 65A
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to standard long-barrel two-hole compression lug forms from major manufacturers. Dual-hole design provides backup mounting security for critical connections in vibration-prone environments.
FAQ
Why choose a long barrel lug over a standard barrel?
The extended barrel length (65.5mm / 2.58 inches) provides greater surface contact area for the compression crimp, reducing resistance and improving current-carrying capacity. Long barrel designs are preferred for medium-voltage applications and where maximum pull-out strength is required.
What does the blue color code indicate?
The blue color code identifies this lug as sized for 6 AWG conductor per industry standard color-coding systems. This allows quick visual verification during installation and inspection to prevent mismatched terminations.
Is this lug suitable for 35kV applications?
The 35kV voltage rating applies to the lug's insulation properties when properly installed with compatible insulation and clearances. Verify system voltage, insulation coordination, and local code requirements for your specific installation.
