Two-Hole Copper Compression Lug 4 AWG #10 Stud | 35kV 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-98086
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

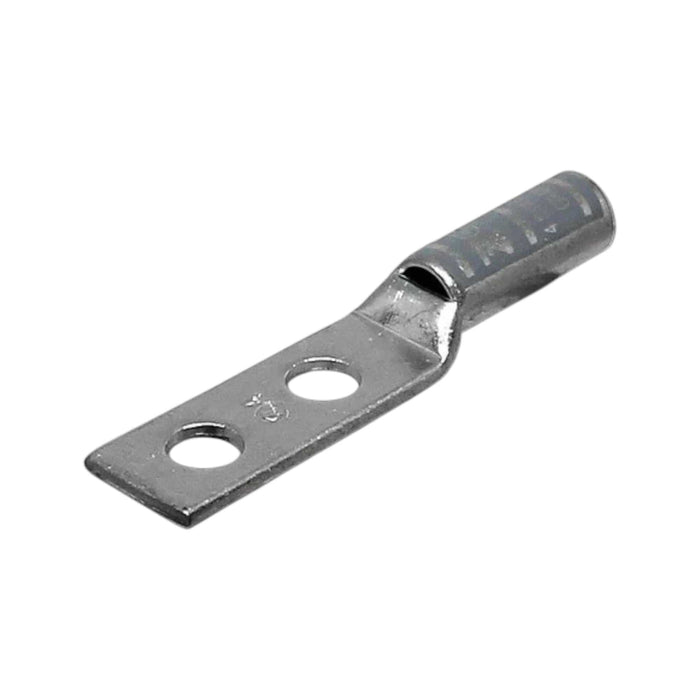

The Conversions Tech two-hole copper compression lug is engineered for terminating 4 AWG copper conductors in medium-voltage applications. This long-barrel, tin-plated lug provides dual mounting points with 1-inch hole spacing for mechanical stability in switchgear, transformers, panelboards, and industrial power distribution equipment. The chamfered barrel entry facilitates conductor insertion, while the gray color code enables quick field identification during installation.
Specifications
- Conductor Size: 4 AWG
- Stud Size: #10
- Pad Holes: 2
- Pad Hole Spacing: 1 inch
- Material: Seamless Electro-Tin Plated Copper
- Barrel Type: Long Barrel, Chamfered Entry
- Barrel Length: 1.125 inches
- Inner Diameter: 0.25 inch
- Outer Diameter: 0.343 inch
- Overall Length: 2.796 inches
- Pad Size: 1.437" L x 0.486" W x 0.093" Thk
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Color Code: Gray
- Die Index: I-29
Cross-Reference
Equivalent form factor to Burndy YAV, Panduit LCCX, and Ilsco CCL two-hole compression lugs. Conversions Tech lugs are engineered to US specifications and manufactured by certified partner factories, delivering comparable electrical and mechanical performance at reduced cost.
FAQ
What crimping tool and die are required for this lug?
Use a compression tool with die index I-29. The long barrel requires a full-cycle crimp to achieve the 35 kV rating. Verify die alignment before crimping to ensure proper compression across both barrel sections.
Is this lug suitable for outdoor or wet location applications?
The tin-plated finish provides corrosion resistance. For specific environmental ratings and application guidance, consult the NEC and local authority having jurisdiction regarding medium-voltage termination requirements.
Why two-hole mounting versus single-hole?
Dual mounting points distribute mechanical stress and resist loosening from vibration or thermal cycling. The 1-inch hole spacing matches standard busbar drilling patterns in switchgear and transformer terminations.
