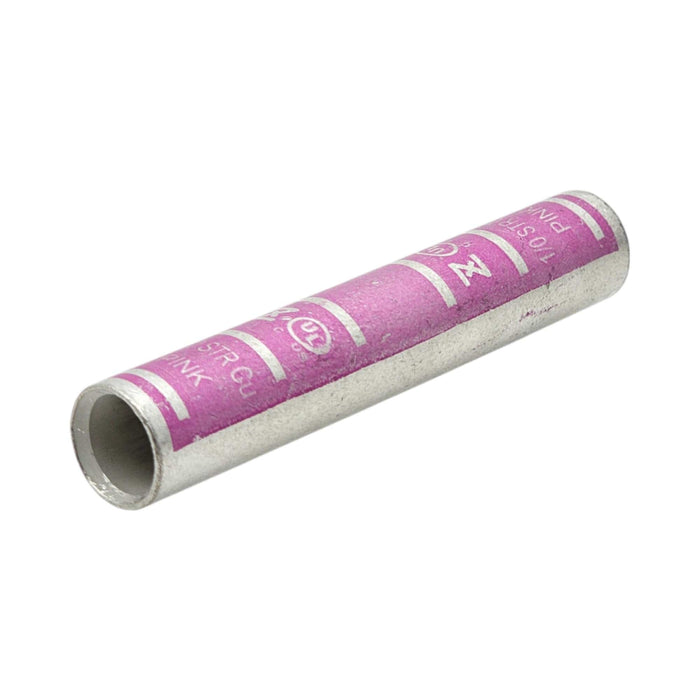

Copper Long Length Compression Connector 1/0 AWG

The Conversions Technology 1/0 AWG Copper Compression Splice (Long Barrel) is designed for high-demand commercial and industrial applications. Its advanced construction ensures exceptional conductivity, mechanical strength, and corrosion resistance, making it an ideal choice for critical electrical systems.

Specifications

• Type: Center Wire Stop
• Barrel Length: Extended (Long Barrel)
• Overall Length: 2.750 inches
• Inner Diameter: 0.39 inches
• Outer Diameter: 0.515 inches
• Conductor Material: Copper
• Voltage Rating: 35 kV
• Body Material: High-Strength Seamless Copper with Electro-Tin Plating
• Conductor Size: 1/0 AWG
• Color Code: Pink
• Barrel Design: Long with Chamfered End
• Application: Grounding and Bonding
• Temperature Rating: 90°C

Applications

This long-barrel copper compression splice is built for critical applications requiring enhanced mechanical strength and electrical reliability, including:

• High-voltage power distribution networks
• Industrial machinery connections
• Renewable energy installations (solar and wind systems)
• Grounding systems and bonding assemblies
• Critical infrastructure and substation components

Key Features

• Extended Barrel Design: Increases crimping area for enhanced mechanical stability and reduced electrical resistance.
• High-Strength Copper Construction: Seamless copper body with electro-tin plating ensures superior conductivity and corrosion resistance.
• Chamfered End: Simplifies conductor insertion for faster and more efficient installation.
• Color-Coded Identification: Pink marking ensures quick and accurate identification.
• Wide Operating Range: Rated for up to 35 kV and 90°C for use in demanding electrical systems.
