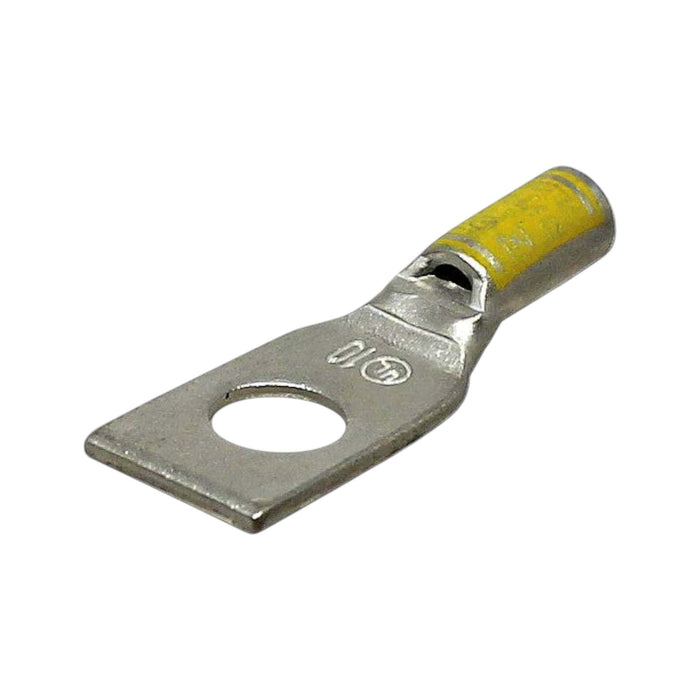

Copper Short Barrel One Hole Compression Lugs 10 AWG 1/4 Bolt Size

The Compression Lug is a reliable and durable solution for a wide range of electrical applications. Designed for 10 AWG conductors with a 1/4-inch bolt size, its long barrel ensures enhanced connectivity and stability. The tin-plated finish provides excellent corrosion resistance, ensuring longevity in various environments. The yellow color code simplifies identification, promoting quick and efficient installations. With its robust construction and versatile design, this lug is ideal for use in power distribution panels, industrial machinery, construction projects, and more, providing a secure and stable connection for long-lasting performance.

Key Features

• Seamless Electro-Tin Plated Copper: High-quality construction for enhanced conductivity and corrosion resistance.

• Yellow Color: Facilitates quick and efficient identification during installations.

• 1.569 Inch Overall Length: Provides ample space for secure conductor termination.

• 0.812 Inch Barrel Length: Long barrel design for optimal performance and stability.

• 35 kV Voltage Rating: Suitable for a wide range of voltage applications.

• 10 AWG Conductor Size: Accommodates various conductor sizes for versatility.

• 1/4 Inch Stud Size: Compatible with standard 1/4-inch stud sizes for easy installation.

• I-21 Die Index: Precision die index for consistent and reliable crimping.

• 0.562 Inch L X 0.374 Inch W X 0.093 Inch Thk Pad Size: Adequate pad size for secure connections.

• 1 Pad Hole: Designed for a single conductor termination for simplicity.

• Long Barrel Type: Ideal for applications requiring an extended barrel for enhanced connectivity.

• 0.179 Inch ID X 0.272 Inch OD Size: Precise insulation dimensions for effective electrical insulation.

• Chamfered Barrel Entry: Facilitates easy and smooth conductor insertion.

• Temperature Rating 90 Deg C: Suitable for applications with moderate temperature requirements.
