Short Barrel Compression Lug 6 AWG 3/8" Stud | 65A, 90°C, UL/CE
Shipping calculated at checkout
SKU: 210-98005A
Only 1 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

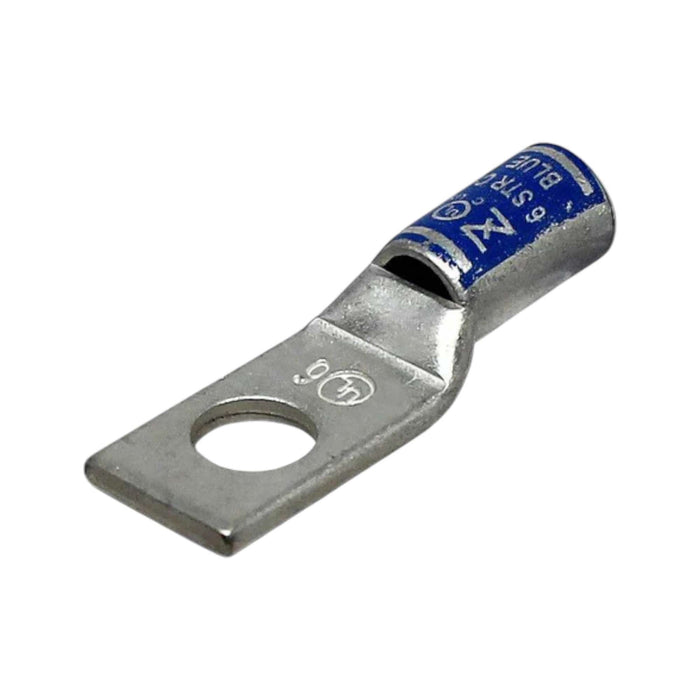

The Conversions Tech short barrel one-hole compression lug terminates 6 AWG copper conductors to 3/8" studs. The compact short-barrel design fits tight termination spaces in panelboards, switchgear, and industrial control enclosures. Blue color coding provides immediate wire-size identification during installation and maintenance.
Specifications
- Conductor Size: 6 AWG copper
- Stud/Bolt Size: 3/8"
- Configuration: One-hole, short barrel
- Material: Tin-plated copper
- Color Code: Blue
- Overall Length (L): 38mm (1.50")
- Neck Length (L1): 21.1mm (0.83")
- Outer Diameter (D): 15.2mm (0.60")
- Inner Diameter (D1): 7.9mm (0.31")
- Hole Diameter (D2): 5.9mm (0.23")
- Width (B): 13.7mm (0.54")
- Hole Spacing (E): 10.4mm (0.41")
- Thickness (F): 1.4mm (0.06")
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Ampacity: 65 Amps
- Certifications: UL Approved, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to short-barrel compression lugs from major manufacturers including Burndy, Panduit, and Ilsco. Same electrical and dimensional performance at distributor-level pricing.
FAQ
What crimping tool is required for this lug?
Use a standard compression crimping tool with dies sized for 6 AWG short-barrel lugs. Verify die compatibility with the specific barrel dimensions listed above before crimping.
Is this lug rated for 75°C or 90°C conductor ampacities?
The 90°C temperature rating supports 90°C ampacity calculations per NEC, though actual circuit ampacity may be limited by conductor insulation ratings or termination temperature limits of connected equipment.
Can this lug be used in medium-voltage applications?
The 35 kV voltage rating suits medium-voltage terminations. Confirm installation meets applicable NEC and local utility requirements for the specific voltage class and environment.
