4 AWG Copper Compression Lug 2-Hole #10 Bolt, 25-Pack | 1" Hole Spacing
Shipping calculated at checkout
SKU: 210-98046-25
40 in stock
Open here

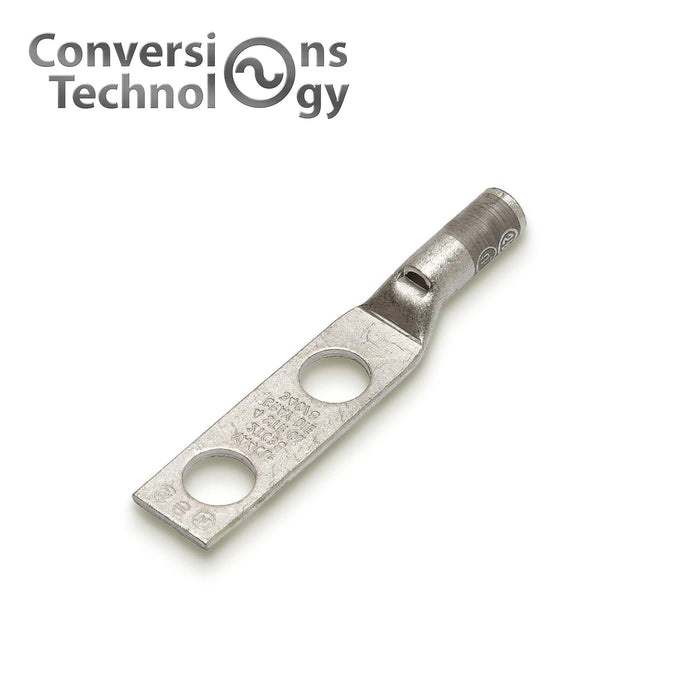

The Conversions Tech Copper Short Barrel Two Hole Compression Lug terminates 4 AWG copper conductors in medium-power electrical systems. This lug features a dual-hole mounting pattern for mechanical stability and is designed for panelboard, switchgear, and equipment grounding applications where secure compression connections are required. The standard barrel profile accommodates industry-standard compression tools, while the integrated sight window enables visual verification of conductor insertion depth prior to crimping.
Specifications
- Conductor Size: 4 AWG
- Material: Seamless Electro Tin Plated Copper
- Mounting: 2-hole configuration
- Bolt Size: #10
- Hole Spacing: 1 inch
- Overall Length: 2.671 inches
- Barrel Length: 0.5 inch
- Color Code: Gray
- Finish: Tin-plated
- Barrel Type: Standard
- Feature: Sight window for installation inspection
Cross-Reference
Equivalent to standard two-hole compression lug form factors from major manufacturers including Burndy, Panduit, and Ilsco. Conversions Tech lugs are engineered to US specifications and manufactured by certified partner factories to deliver comparable fit and performance at reduced cost.
FAQ
What compression tool die index should be used for this 4 AWG lug?
Refer to your compression tool manufacturer's die selection chart for 4 AWG copper conductors. The standard barrel design accepts industry-standard crimping tools; ensure the die index matches the conductor size and lug barrel dimensions.
Is the #10 bolt size compatible with standard hardware?
Yes, the #10 bolt mounting accepts standard #10-32 or #10-24 UNC hardware commonly used in electrical equipment. Verify thread pitch compatibility with your specific application.
Does the sight window indicate proper crimp completion?
The sight window provides visual confirmation of full conductor insertion before crimping. Proper crimp completion is verified by tool cycle completion and post-crimp dimensional inspection per tool manufacturer guidelines.
Specifications
| Part Number | 210-98046 |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 4 AWG, #10 Inch stud
CT P/N 210-98046 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Panduit | LCC4-12 * |
| NSI Industries | L4NP |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
