Copper Short Barrel Two Hole Compression Lugs 6 AWG #10 Bolt Size | 35
Shipping calculated at checkout
SKU: 210-98045C
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

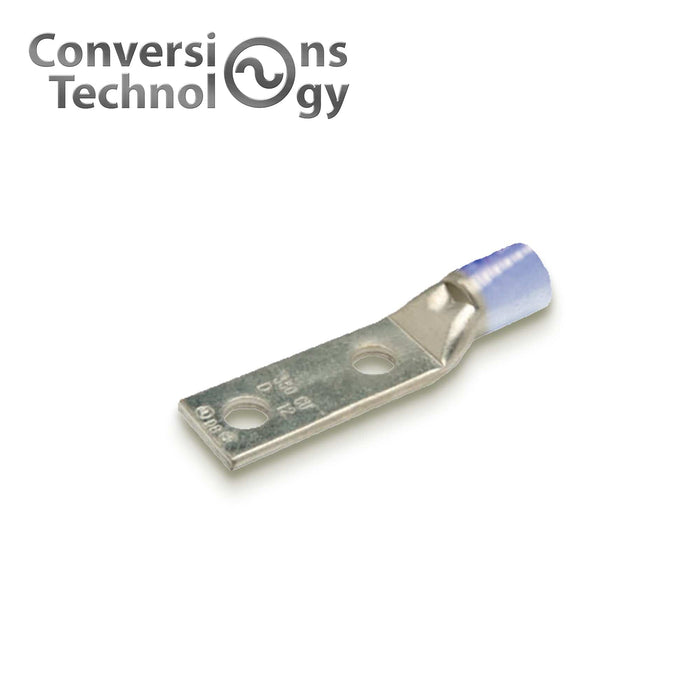

The Conversions Tech 6 AWG Copper Short Barrel Two-Hole Compression Lug is a dual-hole terminal connector engineered for secure, high-reliability electrical terminations in industrial and commercial power distribution systems. This lug terminates 6 AWG copper conductors to #10 stud terminals and busbars, with a two-hole pad configuration providing mechanical stability for vibration-prone environments. Typical applications include electrical panel grounding, power distribution blocks, renewable energy inverter connections, and control system terminations where visual verification of conductor seating is required.
Specifications
- Material: Seamless electro-tin-plated copper
- Conductor size: 6 AWG
- Stud size: #10
- Pad holes: 2
- Pad hole spacing: ¾ in (19.05 mm)
- Pad dimensions: 1.437 in L × 0.44 in W × 0.087 in Thk
- Barrel type: Standard
- Barrel length: 0.5 in (12.7 mm)
- Inner diameter: 0.203 in (5.15 mm)
- Outer diameter: 0.295 in (7.49 mm)
- Overall length: 2.132 in (54.1 mm)
- Cable entry: Chamfered type
- Color code: Blue
- Voltage rating: 35 kV
- Die index: I-24
- Sight window: Yes
Cross-Reference
Equivalent to industry-standard two-hole compression lug form factors used in power distribution and grounding applications. Conversions Tech lugs deliver comparable electrical and mechanical performance to established brands at reduced procurement cost, with specifications verified by our US engineering team and production managed through certified partner facilities.
FAQ
What crimping die should be used with this lug?
Use die index I-24 for proper crimp geometry and UL-compliant terminations. Always verify conductor insertion through the sight window before crimping.
Is this lug suitable for outdoor installations?
The electro-tin-plated copper construction provides corrosion resistance for indoor and outdoor environments. Verify specific installation requirements against local code and application voltage ratings.
Why does this lug have two mounting holes?
The dual-hole pad with ¾-inch spacing provides rotational stability and resistance to loosening from vibration or thermal cycling, commonly required in industrial panels, transformers, and heavy equipment grounding.
