Two-Hole Copper Compression Lug 4 AWG 1/4" Stud, 25-Pack | Tin-Plated
Shipping calculated at checkout
SKU: 210-98046B-25
40 in stock
Open here

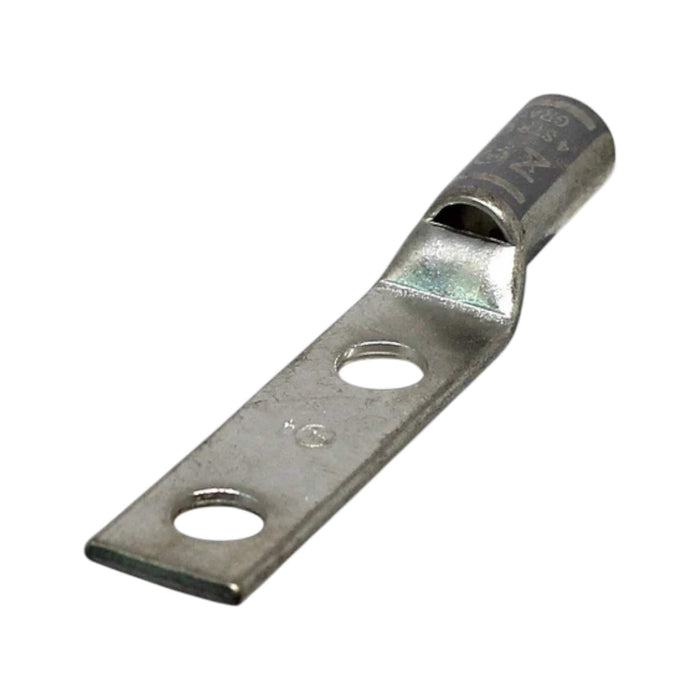

The two-hole copper compression lug is a short-barrel terminal connector engineered for medium-voltage power distribution, industrial control panels, and commercial electrical installations. Designed for 4 AWG copper conductors, this lug provides a dual-bolt mounting pattern for redundant mechanical retention and improved current distribution across bus bars or equipment terminals. The integrated sight window enables visual verification of full conductor insertion prior to crimping, reducing installation errors in field conditions.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 4 AWG
- Stud Size: 1/4 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1 Inch
- Pad Dimensions: 1.687" Length x 0.486" Width x 0.093" Thickness
- Barrel Type: Standard
- Barrel Length: 0.5 Inch
- Inner Diameter: 0.25 Inch
- Outer Diameter: 0.343 Inch
- Overall Length: 2.421 Inches
- Cable Entry: Chamfered Type
- Die Index: I-29
- Voltage Rating: 35 kV
- Color Code: Gray
Cross-Reference
Equivalent to two-hole compression lug form factors from Panduit, Burndy, and Ilsco for 4 AWG conductor applications. Compatible with standard industry tooling and installation practices at reduced procurement cost.
FAQ
What crimping tool is required for this lug?
Use a compression tool with die index I-29. Verify the die code stamped on your tooling matches this specification to ensure proper crimp geometry and electrical integrity.
Why does this lug have two holes instead of one?
The 1-inch spaced dual-hole pattern provides mechanical redundancy and distributes clamping force across two fasteners. This configuration resists loosening from vibration and thermal cycling better than single-stud designs in heavy-duty applications.
Is this lug rated for outdoor or wet location use?
The electro-tin plating provides corrosion resistance suitable for industrial environments. For specific environmental ratings and appropriate sealing methods, consult the complete installation instructions and applicable NEC articles for your application.
Specifications
| Part Number | 210-98046B |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 4 AWG, 1/4 Inch stud
CT P/N 210-98046B is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Panduit | LCC4-12 * |
| NSI Industries | L4NP |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
