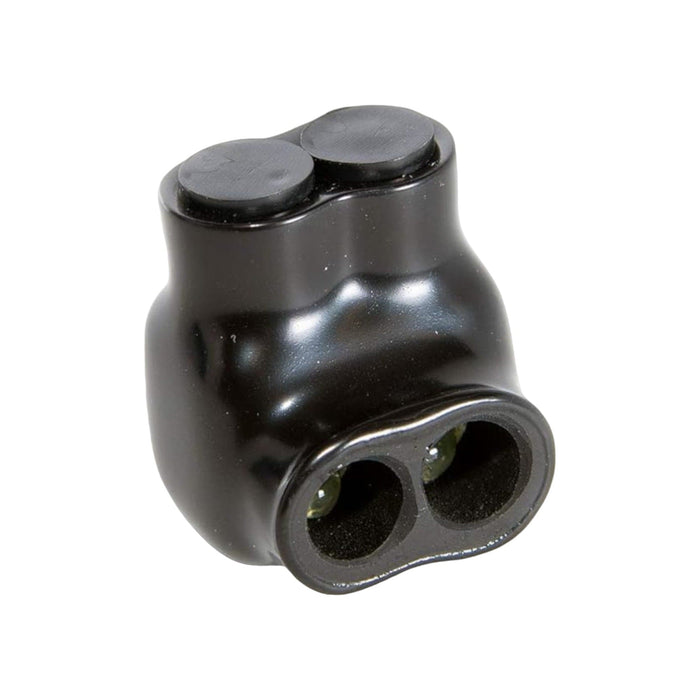

Insulated Tap Connectors 2 port single-side Entry 14 AWG - 2 AWG
Shipping calculated at checkout
SKU: 610-2002214
Out of stock
Open here
Insulated Tap Connectors – NEC 230.46-Compliant, UV-Resistant
Secure, corrosion-proof splicing starts with Conversions Tech insulated tap connectors. Engineered for 2 AWG to 14 AWG aluminum or copper conductors, our rounded, plastisol-insulated body delivers 600 V, 90 °C, AL9CU performance on line-side service gear, switchboards, and branch circuits—fully certified to cULus & UL 486A/B.
Top SEO-Driven Benefits
- Adjustable set-screw design – high-pressure, low-resistance bonds for stable ampacity.
- NEC 230.46 ready – approved for line-side taps on residential, commercial, and industrial panels.
- Gel-filled, UV-resistant plastisol jacket – blocks moisture, salt, and chemicals indoors or out.
- Quick single-side entry – lands two conductors in seconds; pull-out plugs keep debris away.
- High current capacity – up to 130 A (Cu) / 100 A (Al) with AL9CU 90 °C rating.
Key Specifications
| Gauge Range | 2 AWG – 14 AWG (Cu/Al) |
|---|---|
| Voltage Rating | 600 V AC/DC |
| Connector Body | High-strength aluminum alloy |
| Insulation | UV-stabilized plastisol (black) |
| Max Amps | 130 A Cu | 100 A Al |
| Certifications | UL 486A/B · cULus · NEC 230.46 compliant |
Ideal Applications
Residential mains • Commercial switchgear • Industrial machinery • Power distribution panels • HVAC & solar BOS • Marine & automotive DC systems.
Download the full spec sheet to see dimensional drawings, torque values, and installation guidelines, and choose Conversions Tech for code-compliant, maintenance-free taps on every project.
