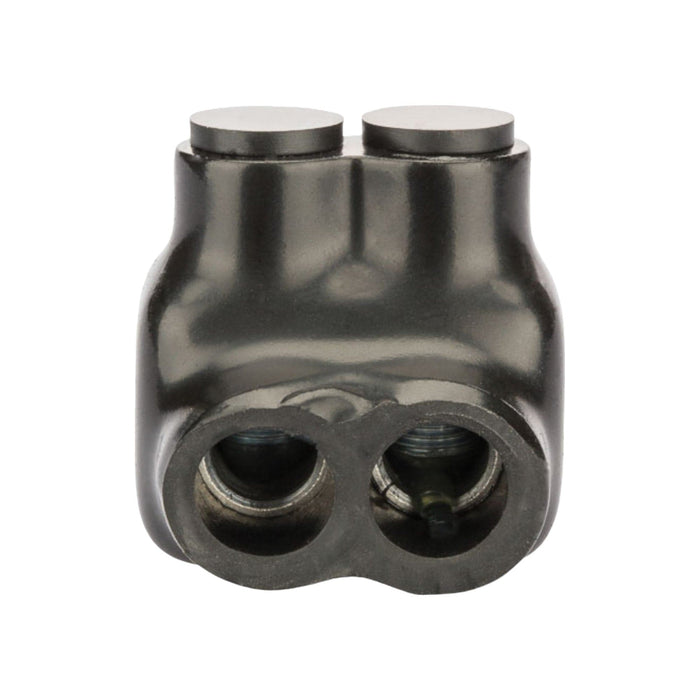

Insulated Tap Connector — 2 AWG–6 AWG | Single-Side Entry | 600V | cULus Listed | Conversions Tech
The Conversions Tech Insulated Tap Connector is a precision-engineered solution designed to create secure, reliable connections between multiple conductors. Featuring a rounded body and UV-resistant plastisol insulation, this connector offers exceptional durability, corrosion resistance, and ease of installation. Fully compliant with NEC Article 230.46, it’s ideal for residential, commercial, and industrial electrical applications requiring long-lasting, code-approved performance.
Each connector is pre-filled with oxide inhibitor gel to ensure a stable, low-resistance electrical connection. Its removable plugs protect the ports and screws from moisture and contaminants, making it a dependable choice for line-side and service equipment connections in demanding environments.
Key Technical Specifications
| Wire Gauge Range | 2 AWG – 6 AWG |
| Connection Type | Set Screw |
| Insulation Material | UV-resistant Plastisol |
| Features | Single-Side Entry, Removable Plugs, Pre-Filled Oxide Inhibitor |
| Voltage Rating | 600 V |
| Material | High-Strength Aluminum Alloy |
| Certifications | cULus Listed • Meets NEC 230.46 • UL 486A/B (File No. E186991) |
| Conductor Type | Copper or Aluminum (Class B, Class C) |
| Max Amperage | 130 A (Cu), 100 A (Al) |
| Temperature Rating | 90°C (AL9CU) |
| Environmental Rating | Cold Temperature Rated to -45°C |
| Origin | USA *Stock product may be sourced elsewhere. |
Key Features
- Secure Connections: Adjustable set screws and rounded body design provide high-pressure, low-resistance bonding.
- Single-Side Wire Entry: Connects two conductors (2–6 AWG) for streamlined installation.
- NEC 230.46 Compliant: Meets all requirements for line-side connections on service equipment.
- Ergonomic Design: Smooth plastisol insulation ensures comfort and grip during installation.
- Removable Plugs: Protects entry ports and screws from debris, moisture, and contamination.
- Pre-Filled Oxide Inhibitor: Prevents corrosion, ensuring long-term electrical stability.
- UV & Chemical Resistance: Insulation resists sunlight, abrasion, and harsh chemicals for longevity.
Applications
- Residential electrical systems
- Commercial and industrial building wiring
- Power distribution networks
- HVAC and automation systems
- Infrastructure and utility installations
- Marine and automotive electrical setups
- Machinery and equipment connections
Frequently Asked Questions (FAQs)
1. What wire sizes are supported?
These connectors support wire sizes from 2 AWG to 6 AWG for both copper and aluminum conductors.
2. Are they compliant with NEC 230.46?
Yes. Insulated Tap Connectors meet NEC 230.46 standards, approved for line-side service connections.
3. What insulation is used?
They are made with UV-resistant plastisol insulation that resists UV rays, chemicals, and abrasion.
4. Do they come pre-filled with oxide inhibitor?
Yes. Each connector is factory pre-filled with oxide inhibitor gel to prevent corrosion and maintain conductivity.
5. Can they be used outdoors?
Absolutely. The UV-resistant insulation allows for outdoor installation and protection from weathering.
6. What certifications do they have?
These connectors are cULus listed and meet UL 486A/B standards under UL File No. E186991.
