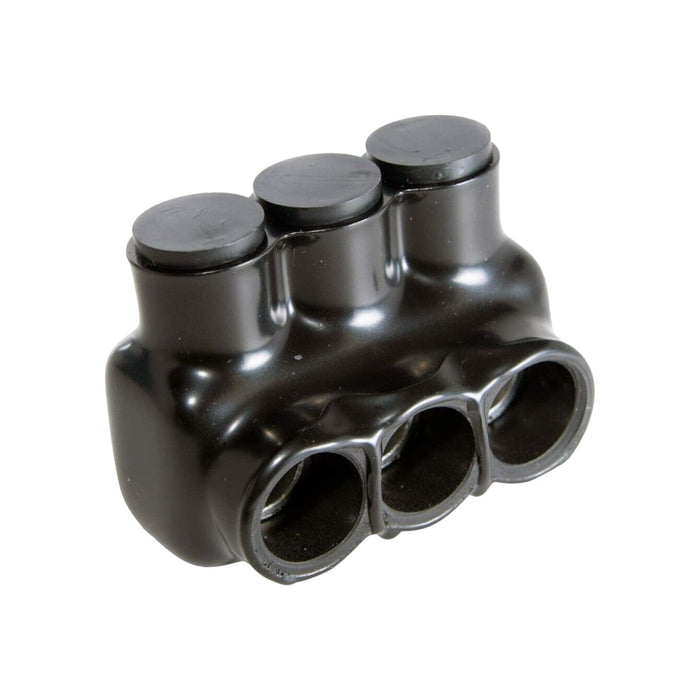

Insulated Tap Connectors 3 port single-side Entry 6 AWG - 2 AWG
Shipping calculated at checkout
SKU: 610-2003026
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech Insulated Tap Connectors — 2 AWG–6 AWG | Single-Side Entry | 600V | cULus Listed | NEC 230.46 Compliant
Conversions Tech Insulated Tap Connectors are engineered for secure, code-compliant, and efficient connections between multiple conductors. With a rounded, ergonomic body and UV-resistant plastisol insulation, these connectors deliver long-lasting reliability and low-resistance performance in both residential and commercial electrical systems. Perfectly compliant with NEC Article 230.46, they are ideal for line-side connections on service equipment and power distribution networks.
Each connector features single-side wire entry for 2–6 AWG conductors and is pre-filled with oxide inhibitor gel to ensure corrosion resistance and stable conductivity. The removable plugs and durable aluminum body make installation easy while maintaining protection against dust and moisture.
Key Technical Specifications
| Wire Gauge Range | 2 AWG – 6 AWG |
| Connection Type | Set Screw |
| Insulation Material | UV-resistant Plastisol |
| Voltage Rating | 600 V |
| Material | High-Strength Aluminum Alloy |
| Finish | Plastisol Insulated (UV Resistant) |
| Certifications | cULus Listed • NEC 230.46 Compliant • UL 486A/B (File No. E186991) |
| Conductor Type | Copper or Aluminum (Class B, Class C) |
| Conductor Count | 3 |
| Max Amperage | 130 A (Cu), 100 A (Al) |
| Temperature Rating | 90°C (AL9CU) |
| Environmental Rating | Cold Temperature Rated to -45°C |
| Origin | USA *Stock product may be sourced elsewhere. |
Key Features
- Secure Connections: Adjustable set screws ensure reliable, low-resistance connections.
- Single-Side Entry: Quickly connects up to three conductors for simplified installation.
- NEC 230.46 Compliant: Approved for line-side service equipment connections.
- Pre-Filled Oxide Inhibitor: Gel-filled ports prevent corrosion and ensure conductivity.
- Removable Plugs: Protects set screws and ports from debris and moisture.
- Ergonomic Design: Rounded plastisol body enhances comfort and grip during installation.
- UV & Chemical Resistance: Long-lasting protection against harsh environments.
Applications
- Residential electrical systems
- Commercial and industrial building wiring
- HVAC and automation panels
- Power distribution and utility networks
- Automotive and marine systems
- Machinery and equipment connections
Frequently Asked Questions (FAQs)
1. What wire sizes can Conversions Tech Insulated Tap Connectors handle?
They support conductor sizes from 2 AWG to 6 AWG, suitable for copper and aluminum wiring systems.
2. Are these connectors NEC 230.46 compliant?
Yes. They meet NEC Article 230.46 requirements for line-side service equipment connections.
3. Do these connectors come pre-filled with oxide inhibitor?
Yes. Each connector is factory pre-filled with corrosion-preventive oxide inhibitor gel to maintain conductivity.
4. What insulation material is used?
The connectors are coated with UV-resistant plastisol insulation, designed to resist abrasion, sunlight, and chemicals.
5. Can these connectors be used outdoors?
Absolutely. Their weatherproof plastisol insulation ensures reliable performance in outdoor and harsh environments.
6. What certifications do these connectors carry?
They are cULus listed, UL 486A/B certified, and meet all NEC 230.46 compliance requirements.
