Sigma Wire & Cable | Bulk RG6 Coaxial Cable | Quad Shield | 1000 ft Wooden Reel | White
Shipping calculated at checkout
SKU: 881-105
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

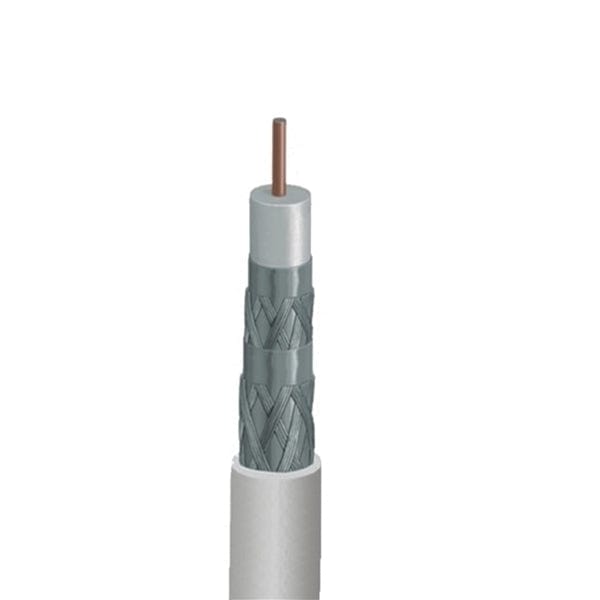

RG6 Quad Shield Coaxial Cable — 1000 ft White Wooden Reel
The RG6 Quad Shield Coaxial Cable delivers consistent, low-loss performance for cable TV, satellite, and broadband internet. Its four-layer shielding maximizes protection against EMI/RFI, while the white PVC jacket blends with modern interiors. Supplied on a durable 1000 ft wooden reel for smooth, tangle-free pulls on the jobsite.
Key Features
- Cable Type: RG6, 75 Ω impedance for CATV, satellite, and broadband.
- Shielding: Quad-layer (two foil + two braid) for superior interference rejection.
- Conductor: 18 AWG copper-clad steel (CCS) for strength and signal stability.
- Dielectric: Foam PE for controlled capacitance and low attenuation.
- Jacket: White PVC for clean indoor runs; suitable for outdoor conduit use.
- Compliance: UL Listed / CM rated; sweep tested up to 3 GHz.
- Reel: 1000 ft wooden reel for efficient, installer-friendly handling.
Technical Specifications
- Impedance: 75 Ω ± 1.5 Ω
- Nominal Capacitance: ~53 pF/m
- Dielectric Diameter: ~4.57 mm
- Outer Jacket Diameter: ~6.9–7.0 mm
- Operating Temperature: –40 °C to 75 °C
- Frequency Sweep: Up to 3 GHz (HDTV/satellite/broadband)
Applications
- Residential and commercial CATV & satellite TV
- Broadband internet and MoCA/return-path systems
- Broadcast/pro AV distribution and long-run installs
- High-interference environments requiring enhanced shielding
Downloads
Frequently Asked Questions
What is RG6 Quad Shield coaxial cable used for?
How does Quad Shield differ from Dual Shield RG6?
Is this cable suitable for outdoor or direct burial?
Is the cable sweep tested and what frequencies are supported?
Which connectors should I use?
Does the white jacket affect performance?
How does RG6 compare to RG59?
Is this cable rated for in-wall installation?
