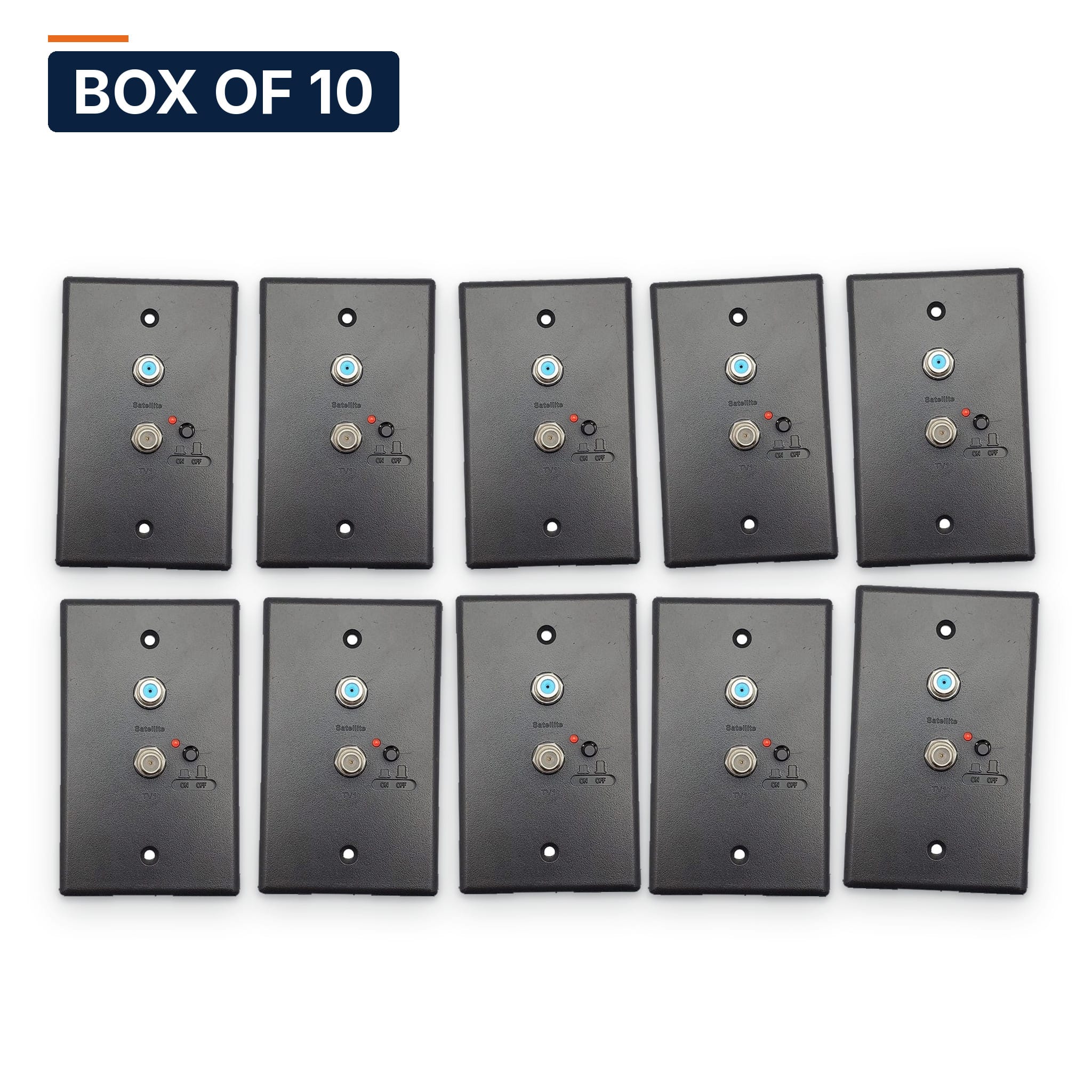

RV Antenna Power Supply Wall Plate, Black | 12 V DC, 2 TV Outputs, A/B Switch, Amplified Antenna | MP-002BK
Shipping calculated at checkout
SKU: MP-002BK
1788 in stock
Open here
The Conversions Tech Universal RV Antenna Wall-Plate Power Supply is a single-gang wall plate that delivers regulated +12 VDC to amplified RV antennas while providing antenna/cable/satellite source selection and dual TV outputs. Designed for motorhomes, travel trailers, toy haulers, and camper vans, the unit eliminates external splitters and cable swapping behind televisions.
Specifications
- Input Voltage: 12 V DC (0.15 A max)
- Antenna Output: Regulated +12 V DC, fused
- Coax Impedance: 75 Ω, gold-plated F ports
- Splitter Loss: ≤ 4 dB per port
- Plate Dimensions: 2.8 in W × 4.5 in H (single-gang)
- Color: Black
- Compatible with HD VISION 360® Antenna
Cross-Reference
Equivalent function to standard RV antenna power wall plates found in Winegard® and King® installations. Provides 12V antenna boost, A/B switching, and dual TV outputs at lower cost than OEM replacement units.
FAQ
Will this wall plate fit my existing RV wall opening?
The plate measures 2.8 in W × 4.5 in H and fits standard single-gang openings common in RV interiors. Verify your cutout dimensions before ordering.
Does the +12 VDC output work with non-Conversions Tech antennas?
The regulated +12 V DC fused output is compatible with HD VISION 360® Antenna and other amplified antennas requiring 12V DC power.
What is the splitter loss per TV output?
Built-in 2-way splitter introduces ≤ 4 dB loss per port. This is standard for passive splitters and acceptable for short coax runs typical in RV installations.
Specifications
| Part Number | MP-002BK |
| Category | Plate |
| Weight | 1.7 lb |
| HS Code | 8538.90.6000 |
| Country of Origin | China |
