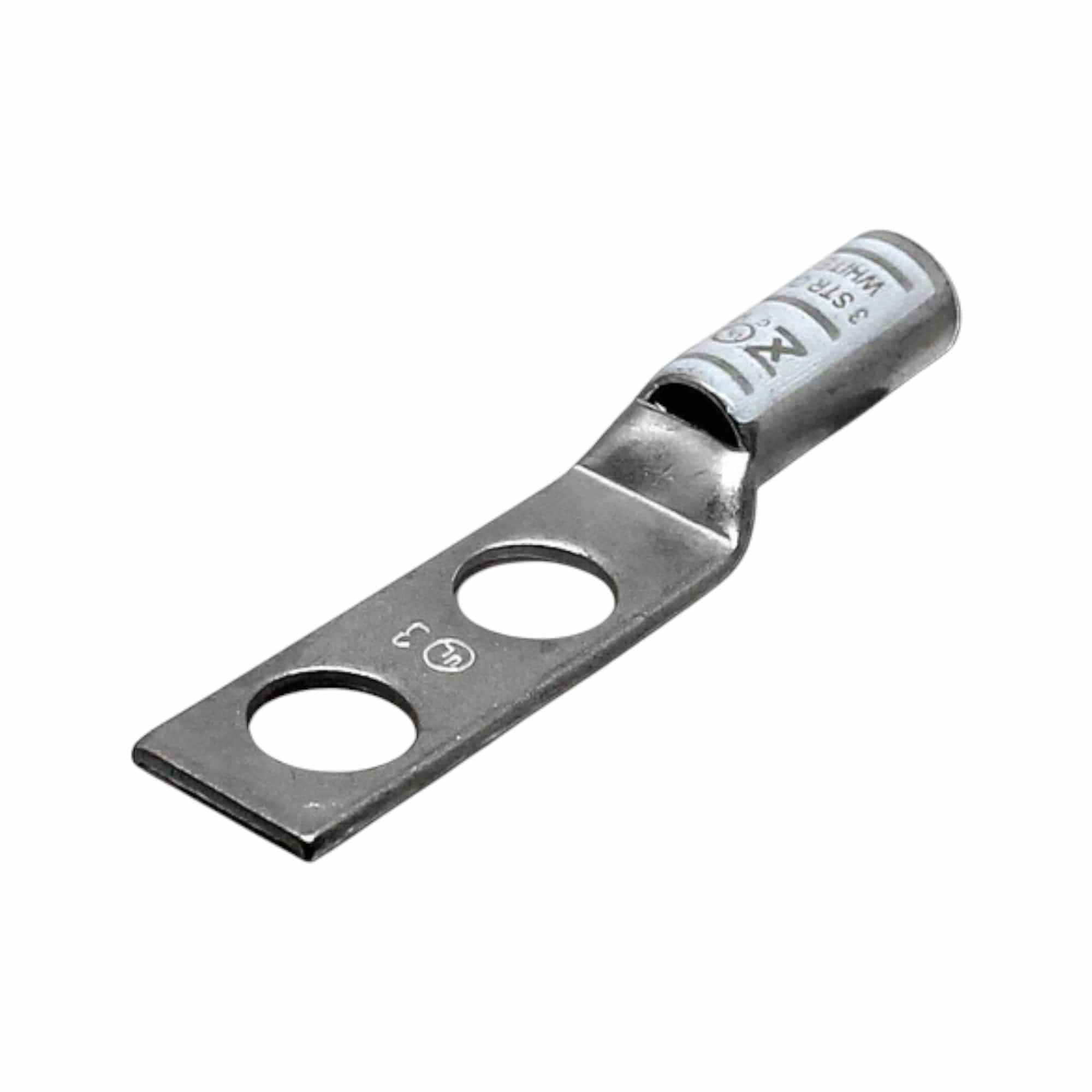

Copper Long Barrel Two Hole Compression Lugs 3 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09959
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is designed for secure, efficient electrical connections with 3/0 AWG conductors. Featuring a long barrel, dual holes, and a 1/4-inch bolt size, this tin-plated lug ensures reliable performance. The vibrant white color code allows for easy identification, making it an ideal choice for a range of high-performance electrical applications that require durability and efficiency.
Key Features
-
Secure Copper Construction: Provides excellent conductivity and ensures reliable electrical connections for 3/0 AWG conductors.
-
Dual Holes and 1/4-Inch Bolt Size: Features dual holes with a 1/4-inch bolt size, offering a secure attachment to terminals or busbars for stable and dependable connections.
-
Long Barrel Design: Enhances crimping, providing a strong, stable connection that resists vibration and loosening over time.
-
Tin-Plated Finish: Offers superior corrosion resistance and enhances conductivity, ensuring long-lasting performance in various environments.
-
Vibrant White Color Code: Facilitates easy identification, improving organization and speeding up installations.
- Ideal for High-Performance Applications: Perfect for electrical systems that require both durability and efficiency, ensuring reliable, high-performance connections in a wide range of demanding environments.
Technical Specifications
| Wire Size | 3 AWG |
|---|---|
| Stud Size | 1/4" Stud |
| Color | White |
| Overall Length (L) | 61mm (2.40") |
| Neck Length (L1) | 34.3mm (1.35") |
| Conductor Length (L2) | 15.9mm (0.63") |
| Outer Diameter (D) | 14.5mm (0.57") |
| Inner Diameter (D1) | 9.9mm (0.39") |
| Hole Diameter (D2) | 7.9mm (0.31") |
| Width (B) | 22.9mm (0.90") |
| Hole Spacing (E) | 7.1mm (0.28") |
| Thickness (F) | 2mm (0.08") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 170A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
