Copper Long Barrel Two Hole Compression Lugs 8 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98084A
199 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

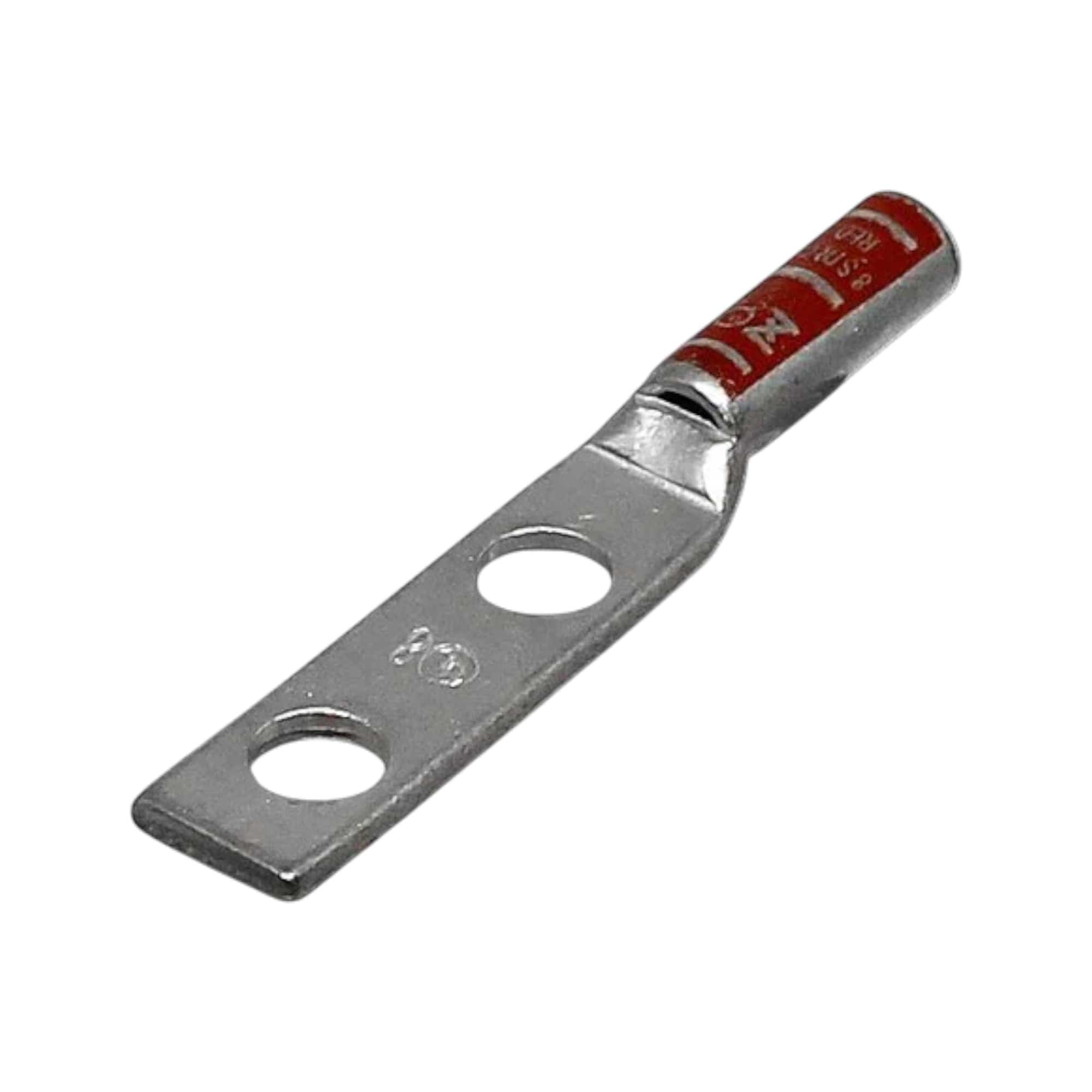

The Conversions Tech 2-Hole Copper Compression Lug is designed for secure and efficient electrical connections with 8 AWG conductors. Featuring a long barrel, 3/8-inch bolt size, and 1-inch hole spacing, this tin-plated lug ensures reliable, high-performance connections. The distinctive red color code simplifies identification, making it easy to spot in various applications. Built for durability and superior conductivity, this compression lug is ideal for demanding electrical systems where secure and efficient connections are critical.
Key Features
- Durable Copper Construction: Provides excellent conductivity and ensures long-lasting, secure connections for 8 AWG conductors.
- 3/8-Inch Bolt Size: Features a 3/8-inch bolt size, ensuring secure attachment to terminals or busbars for stable electrical connections.
- 1-Inch Hole Spacing: Designed with 1-inch hole spacing, offering flexibility and compatibility with a wide range of terminal configurations.
- Long Barrel Design: The extended barrel ensures efficient crimping, providing a secure and stable connection that enhances overall reliability.
- Tin-Plated Finish: Offers superior corrosion resistance and enhanced conductivity, ensuring long-term performance in various environments.
- Red Color Code: Simplifies phase identification, making it easy to spot and organize in electrical systems for efficient installation.
- Reliable, High-Performance: Built for durability and superior conductivity, making it ideal for demanding electrical systems that require secure and efficient connections.
Technical Specifications
| Wire Size | 8 AWG |
| Stud Size | 3/8" Stud |
| Color | Red |
| L | 70.2mm (2.77") |
| L1 | 46.5mm (1.83") |
| L2 | 25.4mm (1.00") |
| D | 15.2mm (0.60") |
| D1 | 7.11mm (0.28") |
| D2 | 4.83mm (0.19") |
| B | 20.6mm (0.81") |
| E | 10.4mm (0.41") |
| F | 1.4mm (0.06") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 50A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
