Two Hole Compression Lugs 1000 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98110b
111 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

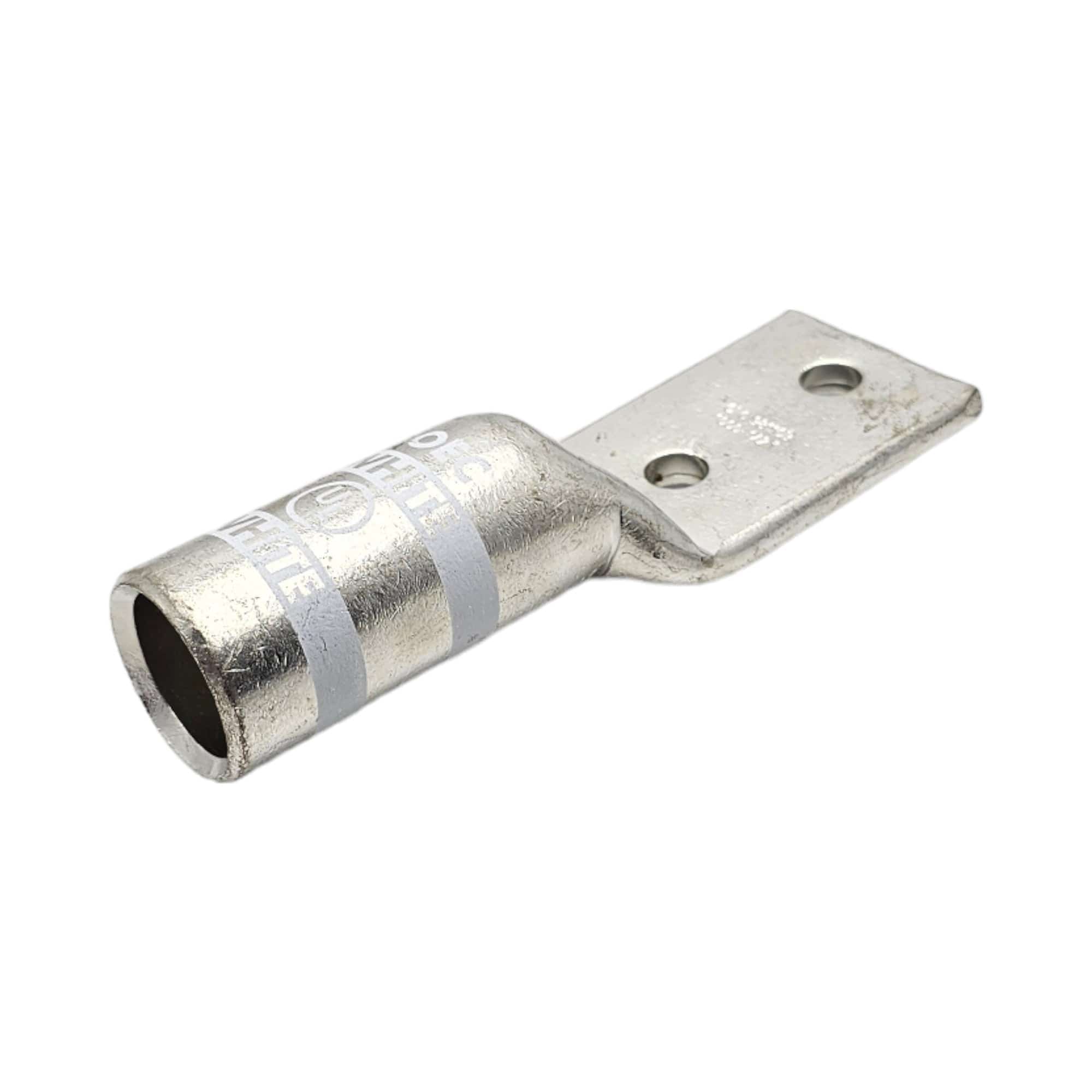

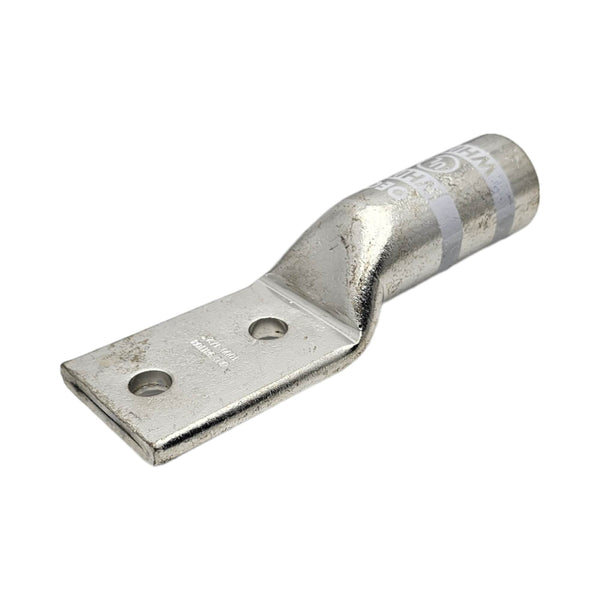

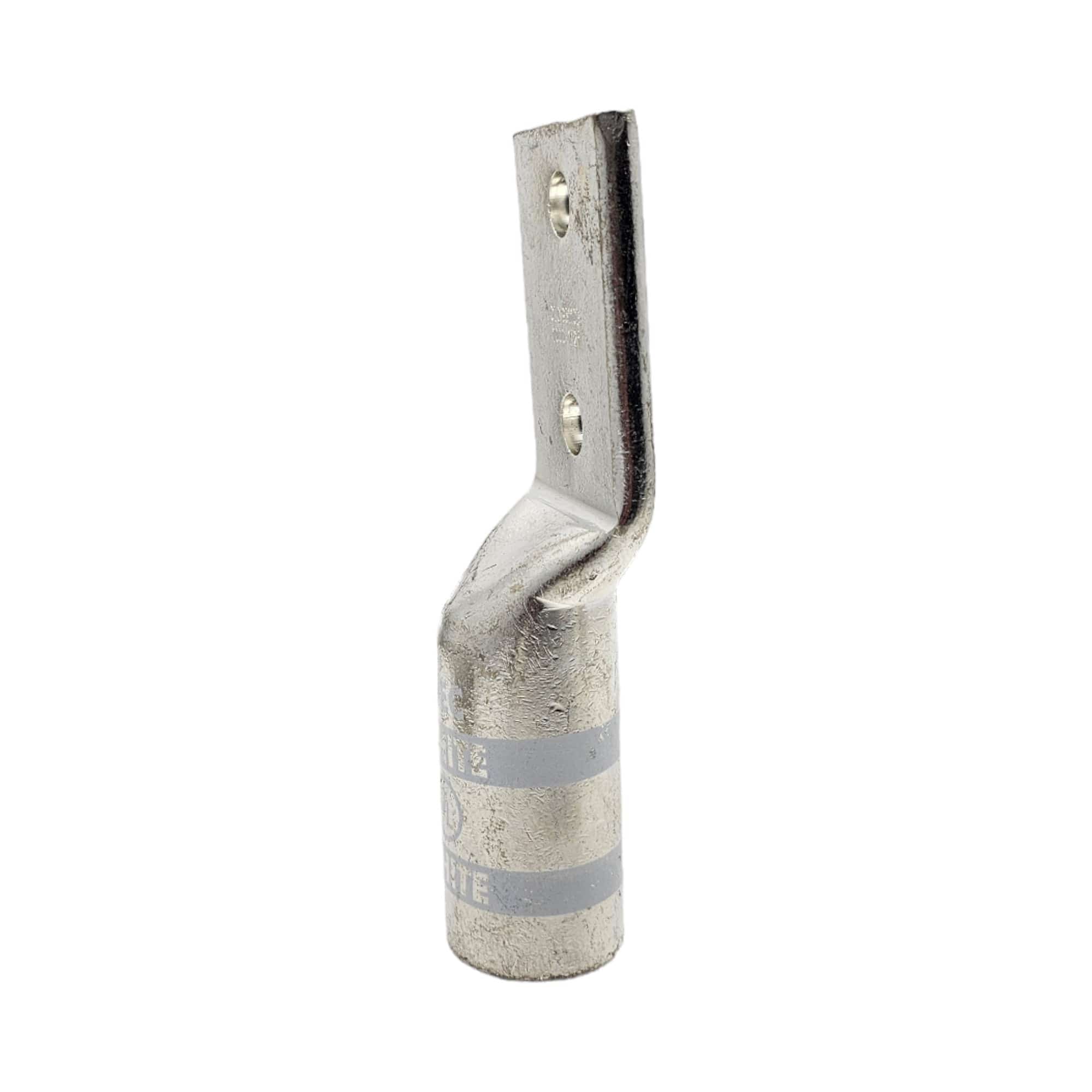

The Conversions Tech Copper Compression Lug is designed for efficient and secure electrical connections, particularly for 1000 MCM conductors. It features a 2-hole configuration with a 1/2-inch bolt size, ensuring a stable and robust connection. The long barrel design, coupled with a tin-plated finish, enhances its corrosion resistance and durability. This lug is a reliable solution for high-current applications, making it ideal for power distribution systems and other demanding industries that require secure and long-lasting electrical connections.
Key Features
-
Conductor Size Compatibility: Accommodates 1000 MCM conductors for heavy-duty applications.
-
Two-Hole Design: Ensures secure, stable connections with its 2-hole lug design.
-
Bolt Size: Features a 1/2-inch bolt size for easy installation.
-
Long, Straight Barrel: Provides added stability in electrical connections.
-
Cable Entry Type: Chamfered cable entry ensures secure placement.
- Temperature Rating: Withstands up to 90°C, suitable for various environments.
Technical Specifications
| Material | Electro Tin Plated High Strength Seamless Copper |
|---|---|
| Color | White |
| Overall Length | 7.025 Inch |
| Barrel Length | 3 Inch |
| Voltage Rating | 600 Volt to 35 Kilovolt |
| Conductor Size | 1000 MCM |
| Stud Size | 1/2 Inch |
| Die Index | I-125 |
| Pad Size | 3 Inch L X 2.169 Inch W X 0.328 Inch Thickness |
| Pad Hole(s) | 2 |
| Pad Hole Spacing | 1.75 Inch |
| Barrel Type | Long, Straight |
| Cable Entry Type | Chamfered |
| Wire Strip Length | 3.062 Inch |
| Temperature Rating | 90°C |
