Copper Short Barrel Two Hole Compression Lugs 4/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98054
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

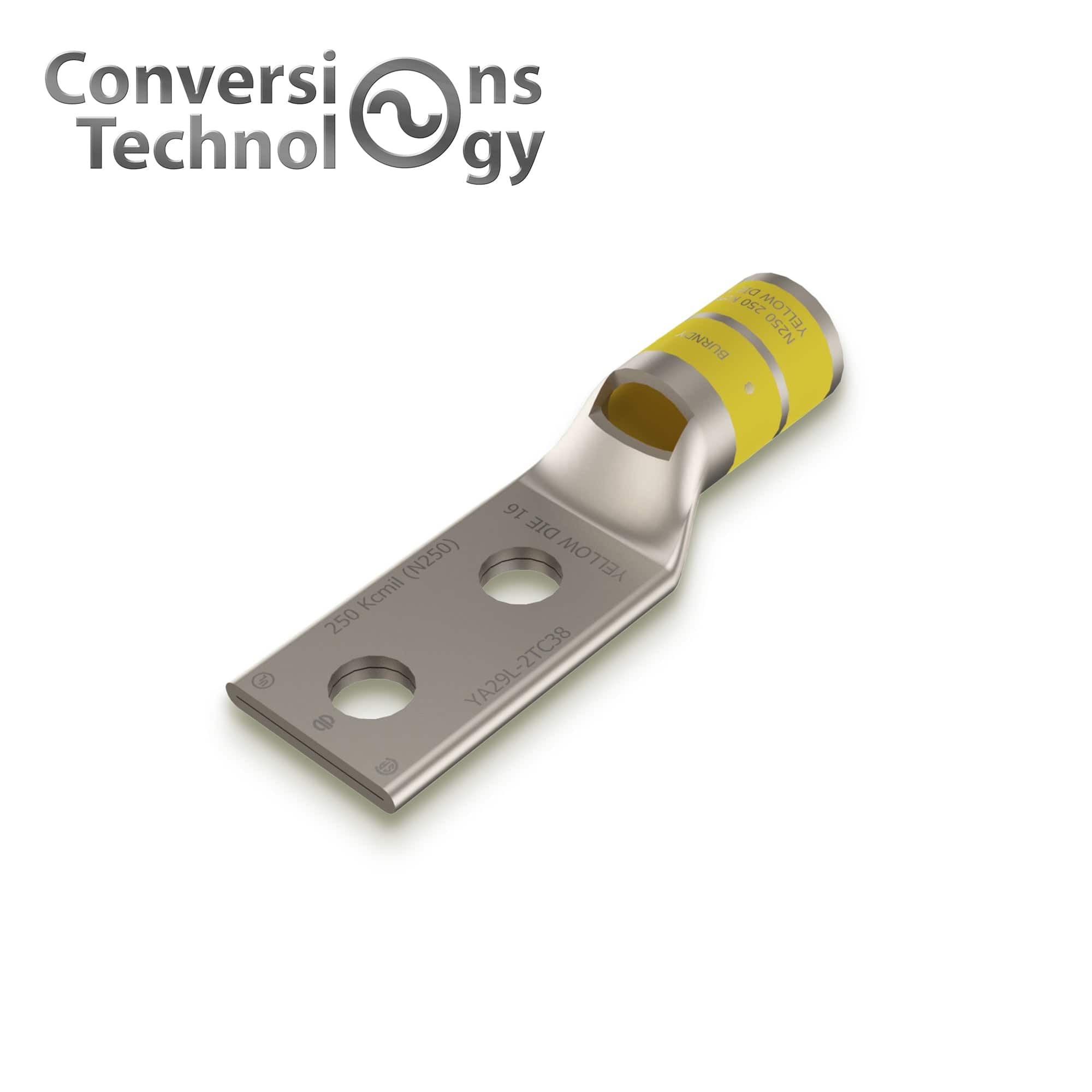

The Conversions Tech durable copper compression lug designed for secure electrical connections, accommodating 4/0 AWG conductors. It features a 1/4-inch bolt size, a standard barrel, and a sight window for easy inspection. The tin-plated finish provides corrosion resistance, while the distinctive yellow color code ensures easy identification. This lug offers reliability and durability for various electrical applications.
Key Features
- Designed for 4/0 conductors - Perfectly suited for 4/0 AWG conductors, ensuring secure and efficient electrical connections in heavy-duty applications.
- 1/4-inch bolt size - Compatible with 1/4-inch bolts, ensuring a secure and stable attachment to electrical components.
- Standard barrel design - Facilitates proper crimping, ensuring a stable and long-lasting connection.
- Sight window - Allows for easy inspection of the crimp, providing visual confirmation of a secure and proper connection.
- Distinctive yellow color code - Makes identification easy, reducing the chance of installation errors by quickly distinguishing the conductor size.
- Tin-plated finish - Provides excellent corrosion resistance, ensuring long-term durability and reliable performance in various environments.
-
Durable and reliable - Designed to withstand demanding electrical applications, delivering dependable connections in both industrial and commercial settings.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Yellow |
| Overall Length | 3.053 Inches |
| Barrel Length | 0.875 Inches |
| Conductor Material | Copper |
| Conductor Size | 4/0 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-54 |
| Pad Size | 1.687 Inch Length x 0.999 Inch Width x 0.141 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Inner Diameter | 0.546 Inch |
| Outer Diameter | 0.687 Inch |
| Barrel Entry Type | Chamfered |
