3/4 in. EMT Raintight Compression Connector, Insulated Throat, Steel | UL 514B | 3104-0034
Shipping calculated at checkout
SKU: 3104-0034
250 in stock
Open here
Goes with
CT 3104-0034 — 3/4" emt raintight compression connector, insulated throat, zinc-plated steel, thermoplastic throat. For EMT trade size 3/4 (OD 0.922"). UL 514B raintight (wet locations); concrete-tight; insulated throat per NEC 300.4(G).
| Part No. | 3104-0034 |
|---|---|
| Trade size | 3/4 in — fits OD 0.922 in |
| Raceway | EMT |
| Material / finish | Zinc-plated steel, thermoplastic throat |
| Listing | UL 514B raintight (wet locations); concrete-tight; insulated throat per NEC 300.4(G) |
| Package | Sold each; box quantities priced through the trade desk |
Cross-Reference: 3104-0034
| Brand | Part Number | Notes |
|---|---|---|
| RACO | 2913RT | Same trade size and fitting type |
| Bridgeport | 251-SRTI | Same trade size and fitting type |
| Conversions Tech | 3104-0034 | Stocked; same-day shipping on in-stock items |
Crosses match trade size, fitting type and listing class. Verify fit against the manufacturer data sheet for your application. Trademarks belong to their owners. Look up any competitor number on the cross-reference hub.
Where it's used
- Rooftop and exterior EMT entering enclosures (NEC 358.42 wet-location fittings)
- Wash-down and damp industrial areas
- Any entry for 4 AWG and larger where the insulated throat replaces a bushing
How to install

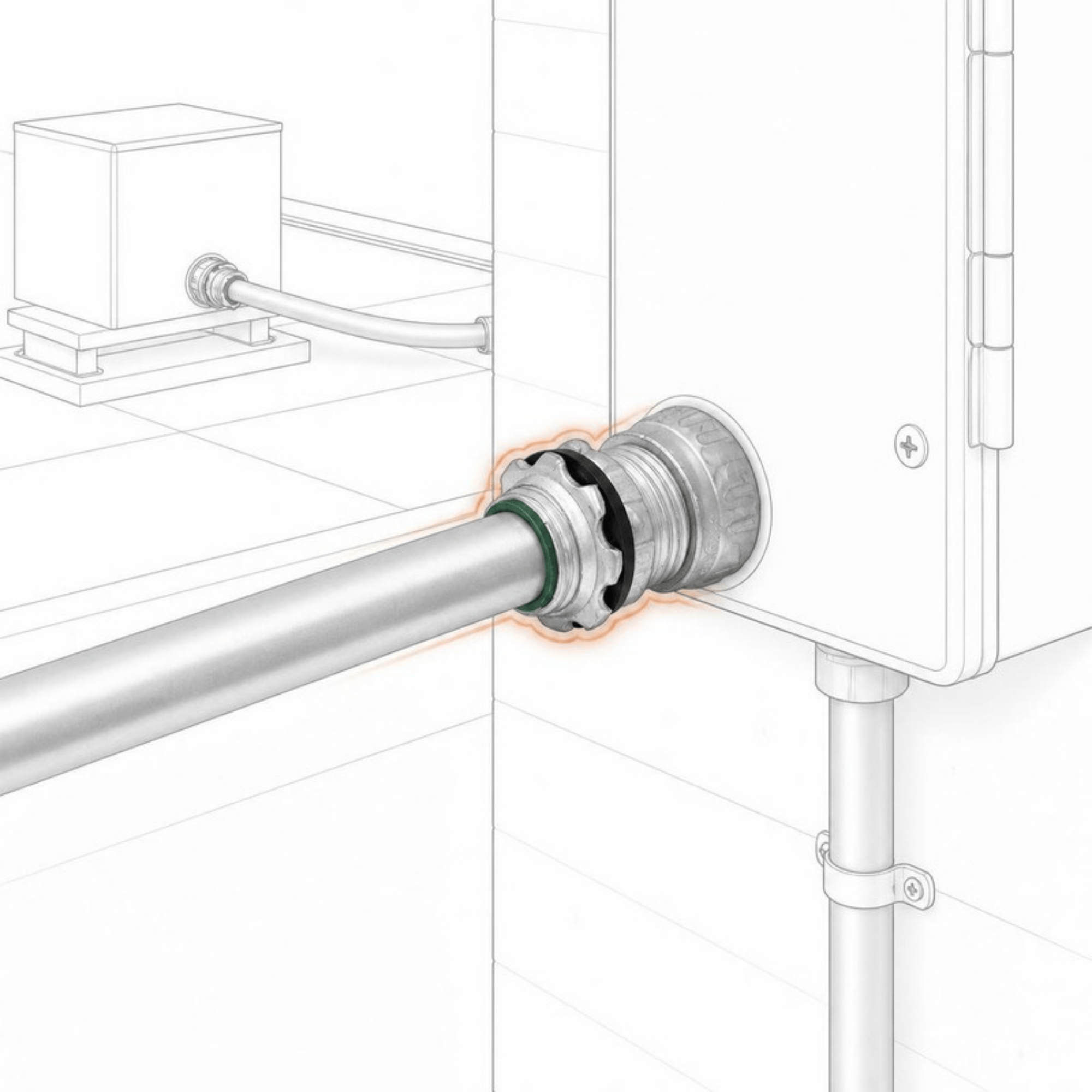

Tighten the gland nut until the sealing ring is visibly compressed against the tube; locknut inside wrench-tight. Do not reuse the sealing ring. Guide: EMT Fittings Guide — Set-Screw vs Compression vs Raintight (NEC 358).
Complete the run — 3/4 in.
Coupling · Locknut · Bushing · Grounding bushing · One-hole strap · Hanger
Stocked — same-day shipping on in-stock items. Volume and trade pricing through the trade desk.
