1-1/4 in. EMT Set-Screw Connector, Die-Cast Zinc | UL 514B | 3125-0114
Shipping calculated at checkout
SKU: 3125-0114
1000 in stock
Open here
CT 3125-0114 — 1-1/4" emt set-screw connector, zinc die-cast. For EMT trade size 1-1/4 (OD 1.510"). UL 514B; concrete-tight; dry and damp locations. Direct cross for RACO 2605.
| Part No. | 3125-0114 |
|---|---|
| Trade size | 1-1/4 in — fits OD 1.510 in |
| Raceway | EMT |
| Material / finish | Zinc die-cast |
| Listing | UL 514B; concrete-tight; dry and damp locations |

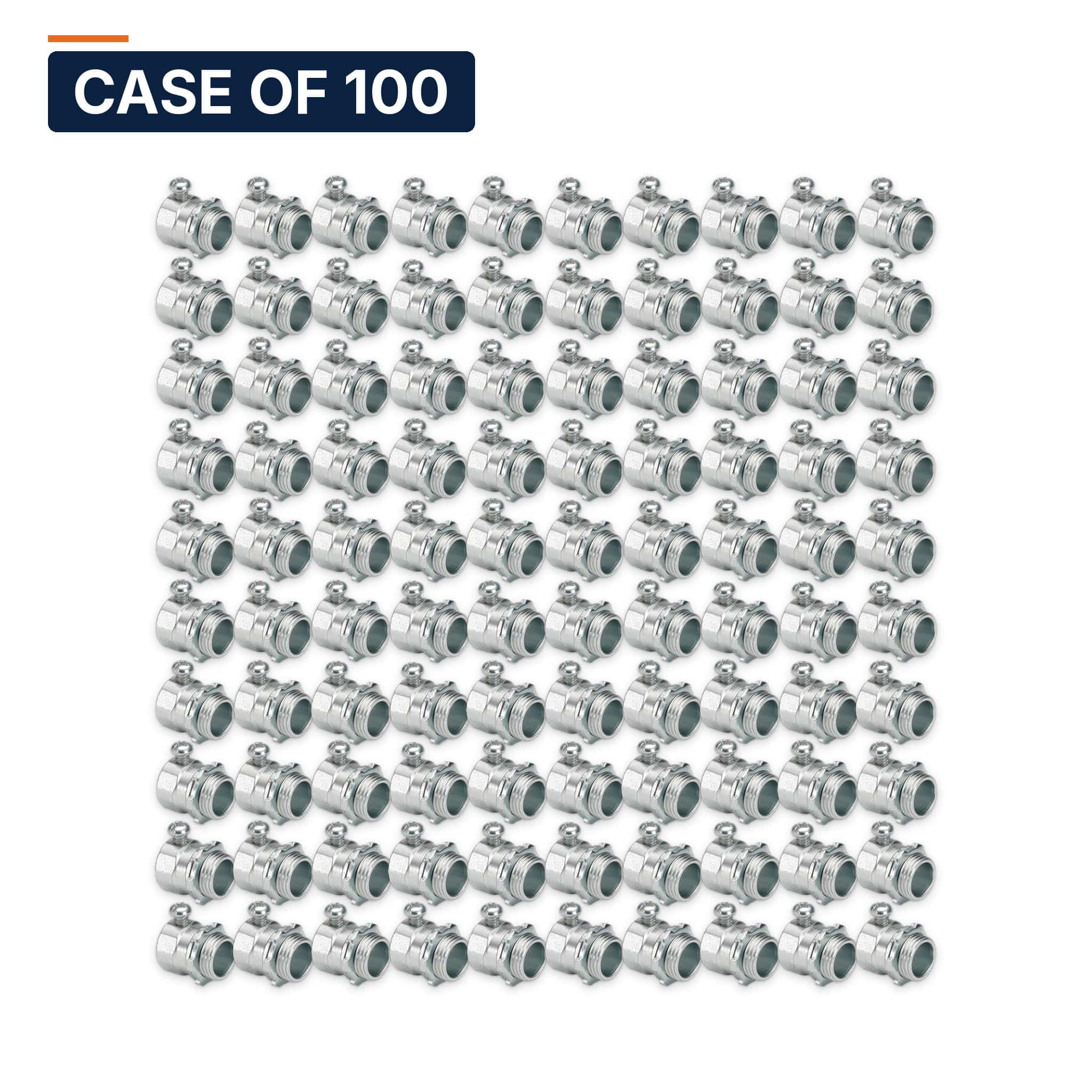

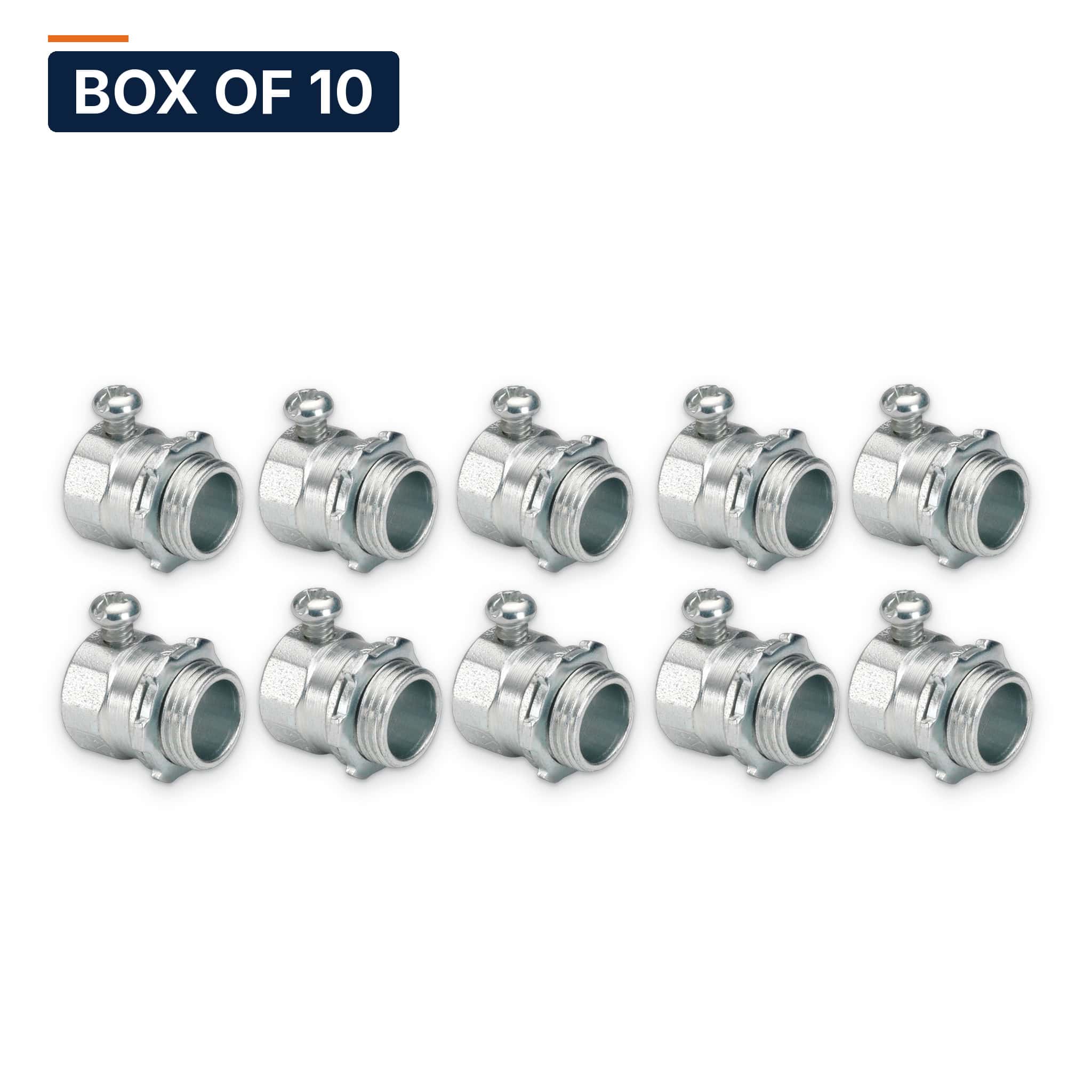

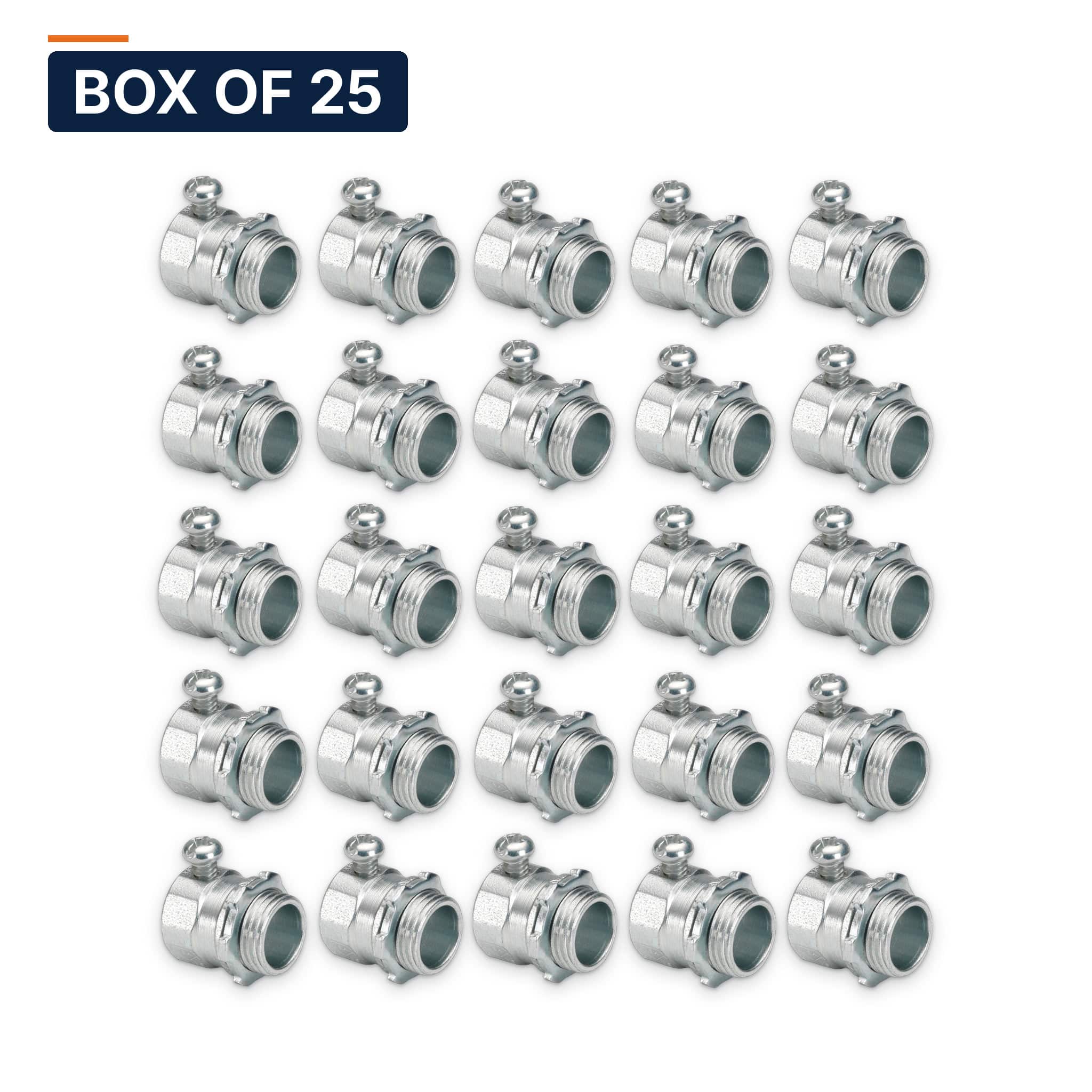

| Package | Sold each; box quantities priced through the trade desk |
Cross-reference
| Manufacturer | Part No. |
|---|---|
| RACO | 2605 |
| Bridgeport | 223-DC class |
Crosses identify fittings of the same trade size, raceway, and listing class. "Class" entries are family-level — confirm the exact number on the manufacturer datasheet.
Where it's used
- Indoor branch and feeder runs above ceilings and in walls
- Panel, box, and enclosure entries where speed matters
- Not for wet locations (use raintight compression)
How to install

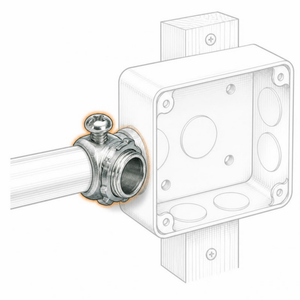

Insert the tube to the stop and tighten the set screw until it bites the tube wall without shearing the head; both screws on two-screw sizes. Locknut inside the box wrench-tight. Guide: EMT Fittings Guide — Set-Screw vs Compression vs Raintight (NEC 358).
Complete the run — 1-1/4 in.
Coupling · Locknut · Bushing · Grounding bushing · One-hole strap · Hanger
