2 in. EMT Squeeze Connector, Die-Cast Zinc | UL 514B | 3119-0002
Shipping calculated at checkout
SKU: 3119-0002
1000 in stock
Open here

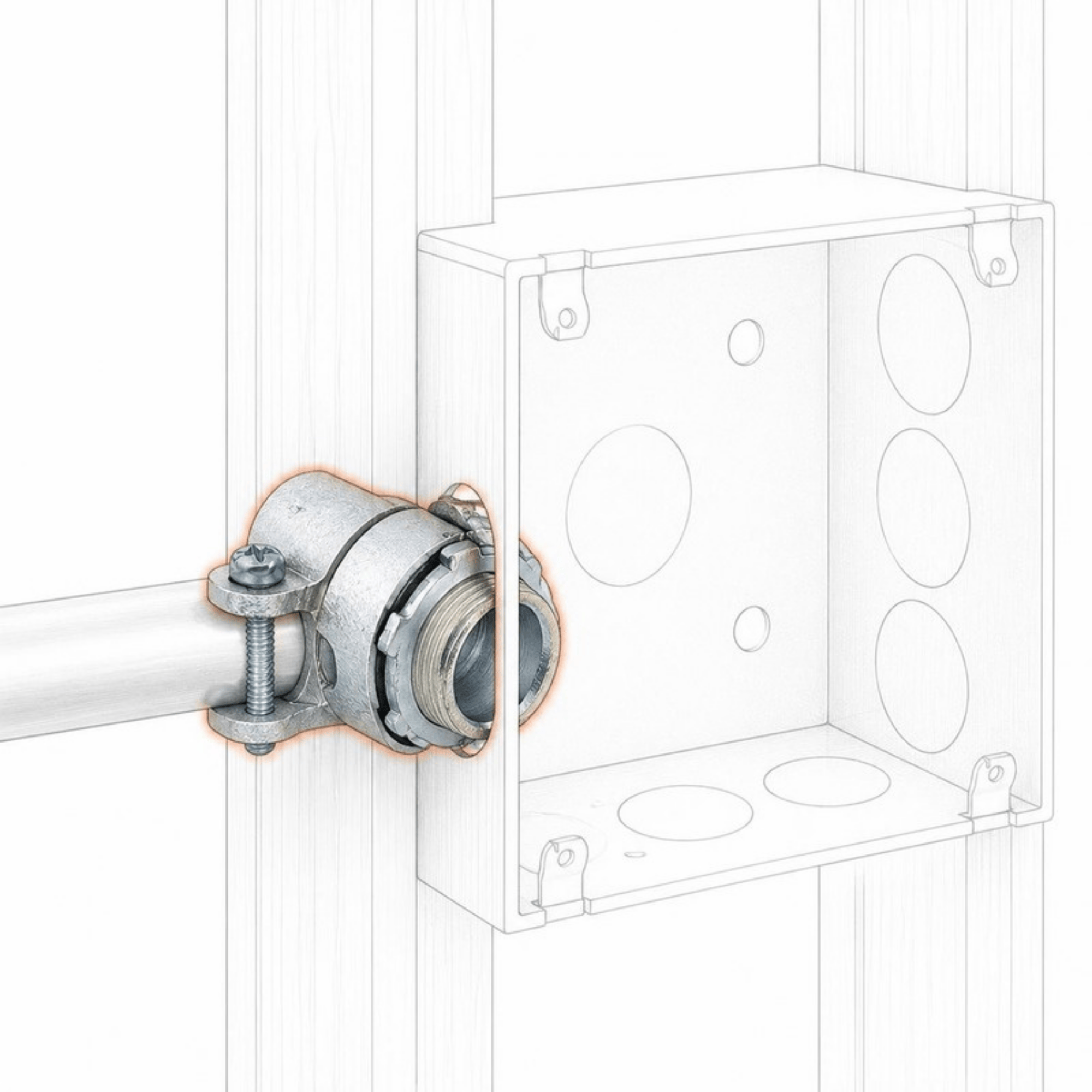

CT 3119-0002 — 2" emt straight squeeze connector, zinc die-cast. For EMT trade size 2 (OD 2.197"). UL 514B. Direct cross for RACO 2108.
| Part No. | 3119-0002 |
|---|---|
| Trade size | 2 in — fits OD 2.197 in |
| Raceway | EMT |
| Material / finish | Zinc die-cast |
| Listing | UL 514B |
| Package | Sold each; box quantities priced through the trade desk |
Cross-reference
| Manufacturer | Part No. |
|---|---|
| RACO | 2108 |
| Bridgeport | 416-DC2 |
Crosses identify fittings of the same trade size, raceway, and listing class. "Class" entries are family-level — confirm the exact number on the manufacturer datasheet.
Where it's used
- Tight spaces where a compression nut cannot be turned
- Retrofit entries in existing enclosures
- Temporary and modular installations
How to install
Slip over the tube, tighten the clamp screw evenly until the halves close; locknut inside wrench-tight. Guide: EMT Fittings Guide — Set-Screw vs Compression vs Raintight (NEC 358).
Complete the run — 2 in.
Coupling · Locknut · Bushing · Grounding bushing · One-hole strap · Hanger
Stocked in Oxnard, CA — same-day shipping on orders by 2PM ET. Volume and trade pricing through the trade desk.
