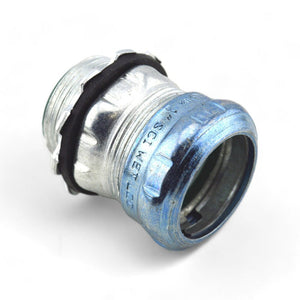

3/4" EMT Compression Connector Raintight | cULus Listed, Zinc-Plated Steel
Shipping calculated at checkout
SKU: 3103-0034
500 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The 3/4" EMT Compression Connector Raintight is a steel fitting designed to connect 3/4" Electrical Metallic Tubing (EMT) conduit to electrical boxes or enclosures in outdoor, wet, or damp locations. The compression mechanism secures the conduit while the integrated raintight seal prevents moisture ingress. This non-insulated connector is specified for applications where wire temperature protection is not required, offering a cost-effective solution for wet location installations.
Specifications
- Trade Size: 3/4"
- Material: Steel with zinc-electroplating
- Design: Screw-on compression with pre-installed knockout seal
- Listing: cULus Listed
- Wet Location Rated: Complies with NEC 2008 358.42 and 314.15 for wet locations
- Marking: "Wet Location"
- Insulation: Non-insulated
Cross-Reference
Equivalent to standard raintight EMT compression connectors from major manufacturers. Functionally comparable to Crouse-Hinds and Appleton wet location EMT compression fittings at lower cost.
FAQ
What does "raintight" mean for this connector?
Raintight indicates the connector includes a pre-installed knockout seal that prevents water ingress when properly installed, meeting NEC requirements for wet locations per 2008 NEC 358.42 and 314.15.
Can this connector be used in wet locations?
Yes. This connector is cULus Listed and marked "Wet Location" for compliance with NEC wet location requirements. The zinc-electroplated steel construction provides corrosion resistance in damp environments.
What is the difference between insulated and non-insulated EMT connectors?
Non-insulated connectors do not include a thermoplastic throat to protect conductors from abrasion or high temperatures. This connector is non-insulated, making it suitable for applications where wire temperature protection is not required and cost is a priority.
