Split Bolt Connector 2 Awg (Max) - 6 Awg (Max)
Shipping calculated at checkout
SKU: 610-00261
418 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

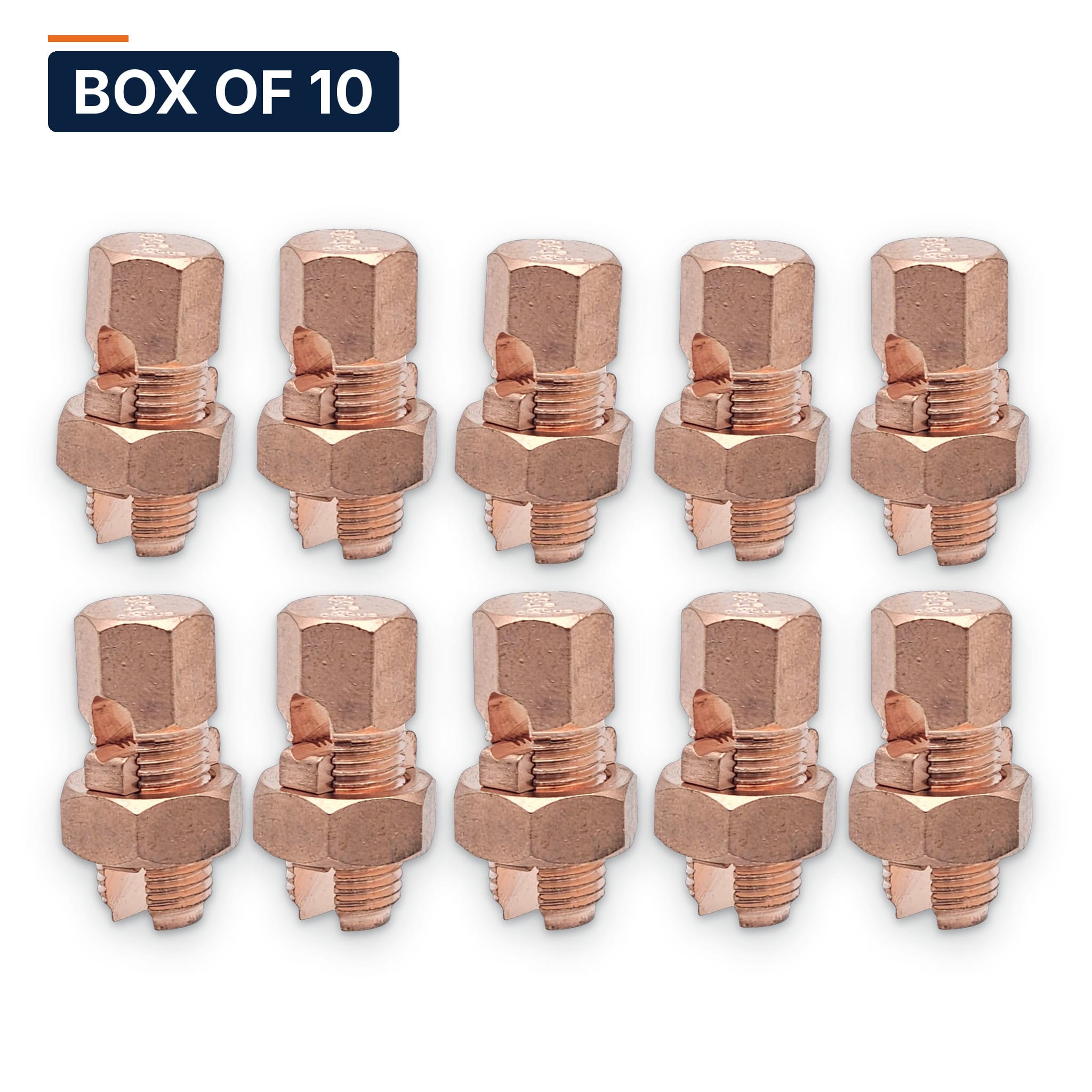

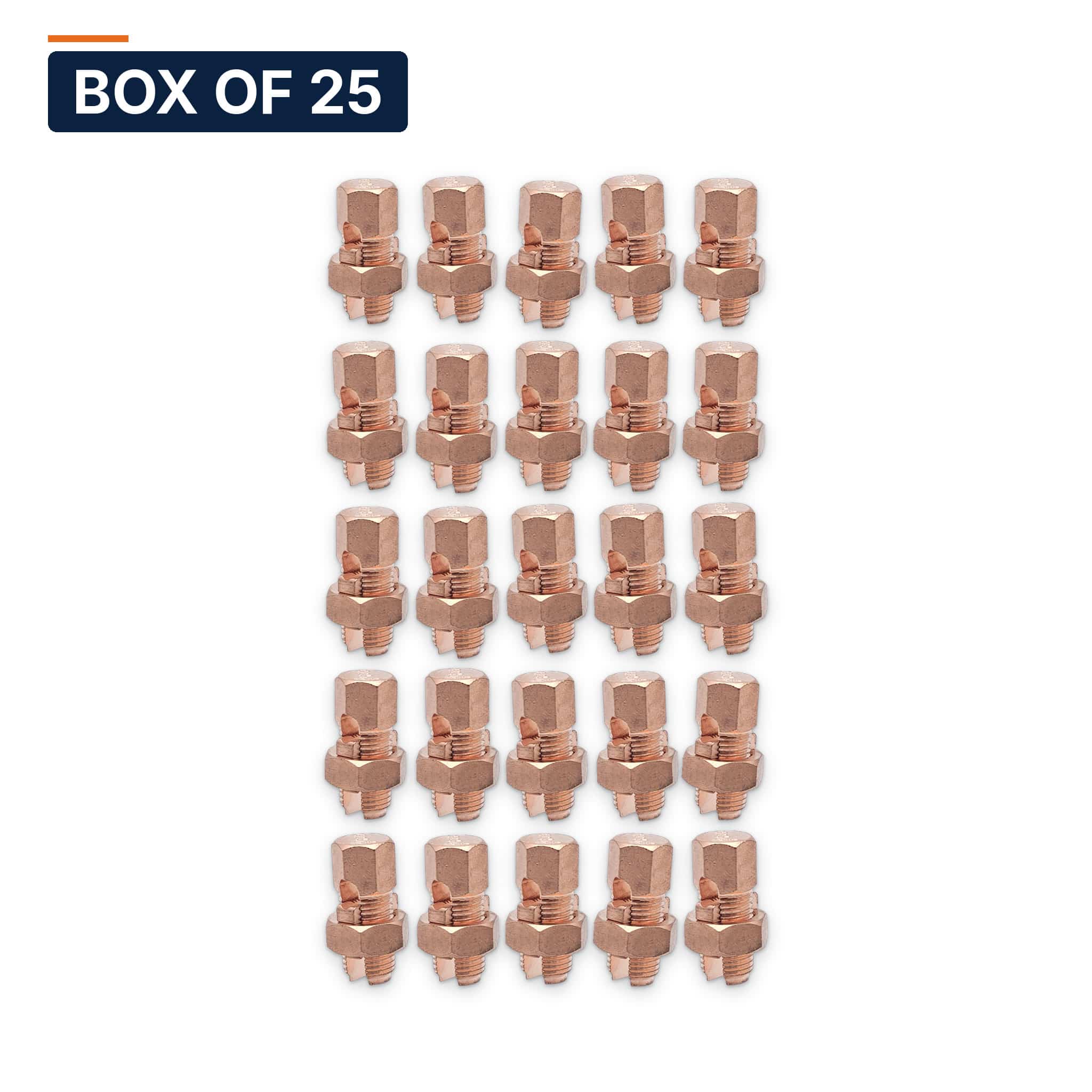

Conversions Tech Split Bolt Connector – 2 STR to 6 SOL Heavy-Duty Wire Splicing
The Conversions Tech Split Bolt Connector is a versatile, heavy-duty mechanical connector engineered for secure splicing and joining of copper conductors ranging from 2 STR to 6 SOL. Designed for reliability and ease of installation, this connector delivers a strong mechanical grip and low-resistance electrical connection suitable for residential, commercial, and light industrial applications.
Featuring a rugged split-bolt design, this connector applies uniform clamping pressure across conductors, ensuring long-term performance even in vibration-prone or demanding environments. Available with tin-plated or nickel-plated finishes, it offers enhanced corrosion resistance for indoor and outdoor installations when properly insulated.
Search terms: split bolt connector, copper split bolt, 2 STR split bolt, 6 SOL split bolt, wire splice connector, electrical splice, grounding split bolt, UL listed split bolt
Key Features & Benefits
- Wide conductor range: Supports copper conductors from 2 STR to 6 SOL.
- Secure mechanical connection: Split-bolt design ensures strong, even clamping force.
- High-conductivity construction: Copper body provides efficient current transfer.
- Corrosion-resistant finishes: Tin-plated or nickel-plated options available.
- 90°C temperature rating: Suitable for demanding electrical environments.
- UL & ANSI compliant: Meets recognized safety and performance standards.
Technical Specifications
| Wire Range | 2 STR to 6 SOL conductors |
| Material | Copper (high conductivity) |
| Finish Options | Tin-plated or nickel-plated for corrosion resistance |
| Temperature Rating | Up to 90 °C (194 °F) |
| Voltage Rating | Suitable for standard electrical systems |
| Standards | Compliant with UL and ANSI standards |
Typical Applications
- Splicing copper conductors in residential wiring systems
- Connecting multiple conductors in commercial electrical installations
- Electrical bonding and grounding applications (where permitted)
- Repairs and upgrades to existing wiring systems
- Outdoor and harsh-environment installations when properly insulated
Installation Notes
- Confirm conductor sizes fall within the 2 STR to 6 SOL range before installation.
- Clean conductors thoroughly to maximize contact area.
- Tighten split-bolt hardware evenly to ensure a secure connection.
- Apply insulation or protective covering after installation as required by code.
- Always follow NEC, local electrical codes, and project specifications.
Frequently Asked Questions (FAQs)
1) What is a split bolt connector used for?
Split bolt connectors are used to splice conductors inline or tap one conductor onto another.
2) What wire sizes does this connector support?
This connector supports copper conductors from 2 STR to 6 SOL.
3) Is this connector copper or aluminum?
This version is copper. If aluminum or AL/CU connectors are required, contact Conversions Tech for alternatives.
4) What finish options are available?
Finish options include tin-plated and nickel-plated for corrosion resistance.
5) Is this connector suitable for outdoor use?
Yes, when properly insulated and protected according to code and environmental requirements.
6) What temperature rating does it have?
The connector is rated for continuous operation up to 90°C (194°F).
7) Is this connector UL Listed?
Yes, this split bolt connector is compliant with applicable UL and ANSI standards.
8) Do I need special tools to install it?
No specialized tools are required. Standard hand tools are typically sufficient for installation.
9) Can this connector be reused?
Reuse may be possible depending on condition, but for critical or permanent installations, replacement is recommended.
10) Is this connector insulated?
No. Split bolt connectors are uninsulated and require insulation after installation if specified.
11) Is this suitable for grounding and bonding?
Yes, split bolt connectors are commonly used for grounding and bonding where allowed by design and code.
12) How do I select the correct split bolt size?
Select the connector based on the largest and smallest conductors being joined. Conversions Tech can assist with selection if needed.
Documentation
Download the full specification sheet and technical drawing for complete dimensional and compliance information:
Specification Sheet | Technical Drawing
