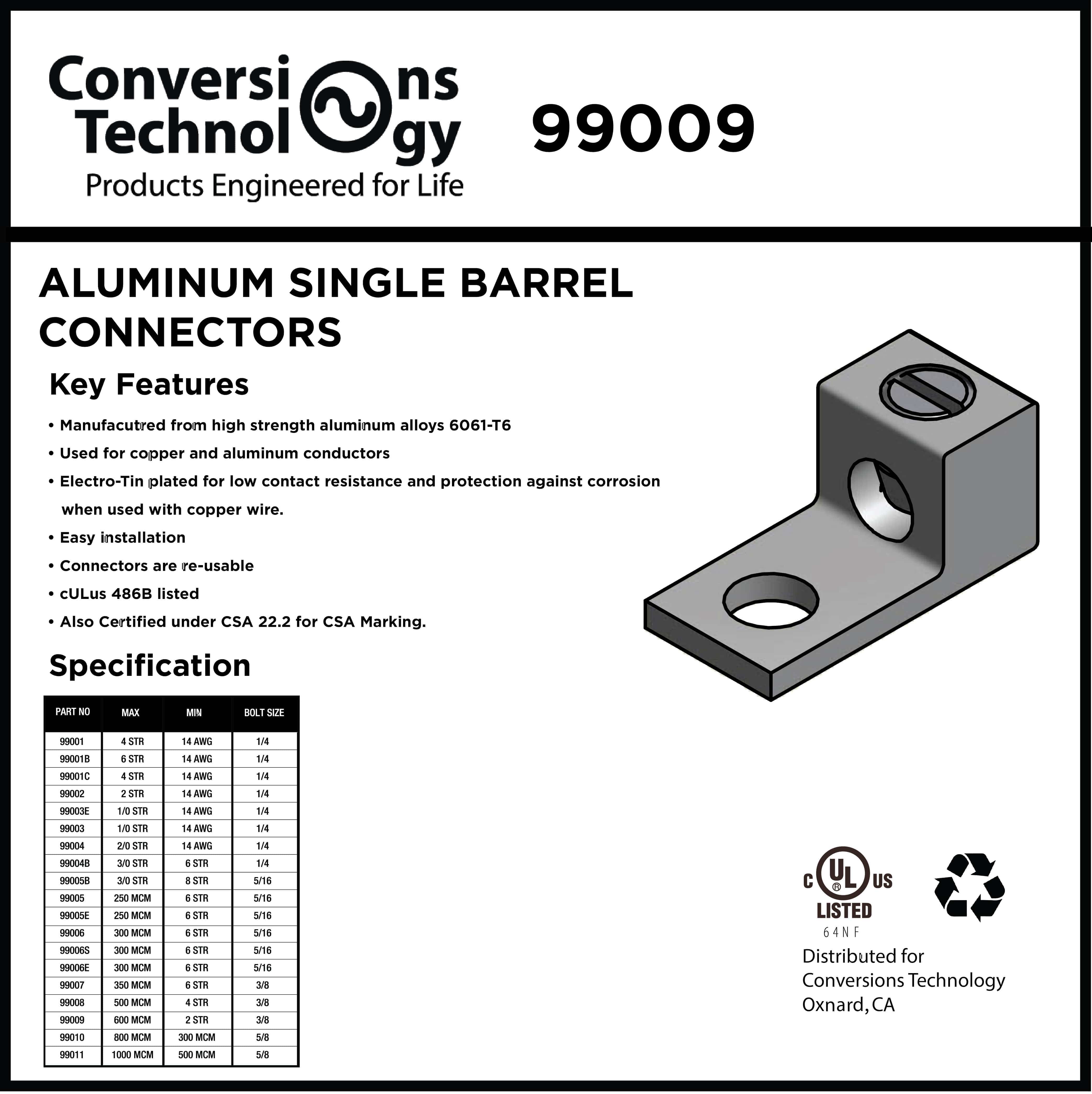

Aluminum Single Barrel Connectors 600 kcmil 3/8 Inch Stud Size
Shipping calculated at checkout
SKU: 210-99009
1000 in stock
Open here
Dual-Rated Aluminum Mechanical Lug — One Hole, 600 kcmil–2 AWG
CT Part No. CT-T1H1-600 • SKU 210-99009 • AL9CU Dual Rated
The CT-T1H1-600 is a single-conductor, one-hole mechanical connector machined from 6061-T6 aluminum alloy and electro-tin plated for corrosion resistance and low contact resistance. Dual rated AL9CU, it terminates both aluminum and copper conductors from 600 kcmil through 2 AWG using a slotted aluminum set screw — no special tooling or dies required. The one-hole pad accepts standard 3/8 in mounting hardware for panelboard, switchgear, transformer, and grounding terminations.
Specifications
| Parameter | Specification |
|---|---|
| Connector type | Mechanical set-screw lug, single conductor, one-hole pad |
| Conductor range | 600 kcmil – 2 AWG, aluminum or copper (AL9CU) |
| Body material | Aluminum alloy 6061-T6 |
| Set screw | Aluminum alloy 6061-T6, slotted head, 15/16-16 UNF thread |
| Finish | Electro-tin plated, minimum thickness 5 µm |
| Mounting | One hole, Ø10.3 mm (0.41 in) — accepts 3/8 in hardware |
| Product marking | AL9CU • 600MCM-2 |
Principal Dimensions
| Dimension | mm | in |
|---|---|---|
| Overall length | 81.0 | 3.19 |
| Pad length | 46.0 | 1.81 |
| Barrel length | 35.0 | 1.38 |
| Overall height | 39.7 | 1.56 |
| Pad width | 38.1 | 1.50 |
| Pad thickness | 11.1 | 0.44 |
| Mounting hole | Ø10.3 | Ø0.41 |
| Hole center to pad end | 22.2 | 0.87 |
| Conductor bore | Ø24.0 | Ø0.94 |
| Bore center height | 19.0 | 0.75 |
| Screw slot (L × W) | 19.05 × 7.0 | 0.75 × 0.28 |
| Set screw thread | 15/16-16 UNF | — |
Dimensional Drawing
Drawing No. CT-T1H1-600 Rev A • Third-angle projection • All dimensions in millimeters • General tolerances: ≤6 mm ±0.1, >6–30 ±0.2, >30–120 ±0.3, >120–400 ±0.5, angular ±0.5°
Features
- Dual rated AL9CU for use with aluminum or copper conductors
- Wide conductor range — one connector covers 600 kcmil through 2 AWG
- 6061-T6 aluminum body and set screw; electro-tin plated (min. 5 µm)
- Slotted set screw installs with standard hand tools — no crimping dies
- One-hole NEMA-style pad drilled Ø10.3 mm (0.41 in) for 3/8 in bolts
- All edges deburred; surfaces free of scratches, dents, and plating defects
Typical Applications
Service entrance equipment, panelboards and switchboards, transformer and switchgear terminations, grounding and bonding connections, and general feeder terminations for aluminum or copper conductors.
Cross reference: T1H1-600 • TA-600 type. Engineering datasheet CT-DS-T1H1-600 (Rev A) available — contact sales@conversionstech.com.
Specifications
| Part Number | 210-99009 |
| Category | Electrical connector |
| Weight | 2.0 lb |
| HS Code | 8536.90.4000 |
Cross-Reference: 210-99009
| Brand | Part Number | Notes |
|---|---|---|
| ILSCO | TA-600 | 2 AWG-600 kcmil, 3/8" stud, dual-rated — direct cross* |
| Burndy | KA36U | 2 AWG-600 kcmil, 3/8" stud, dual-rated — direct cross* |
| Conversions Tech | 210-99009 | stocked, ships same day |
*Cross by conductor range, barrel count, and stud size - verify for your application. Trademarks belong to their owners.
See also splicer/reducers and neutral bars. Contractor & distributor pricing →
