CT-T1H1-800 Mechanical Lug — 1-Conductor 1-Hole Dual-Rated AL/CU 300–800 kcmil 5/8in Stud
Shipping calculated at checkout
SKU: CT-T1H1-800
Only 3 in stock
Open here

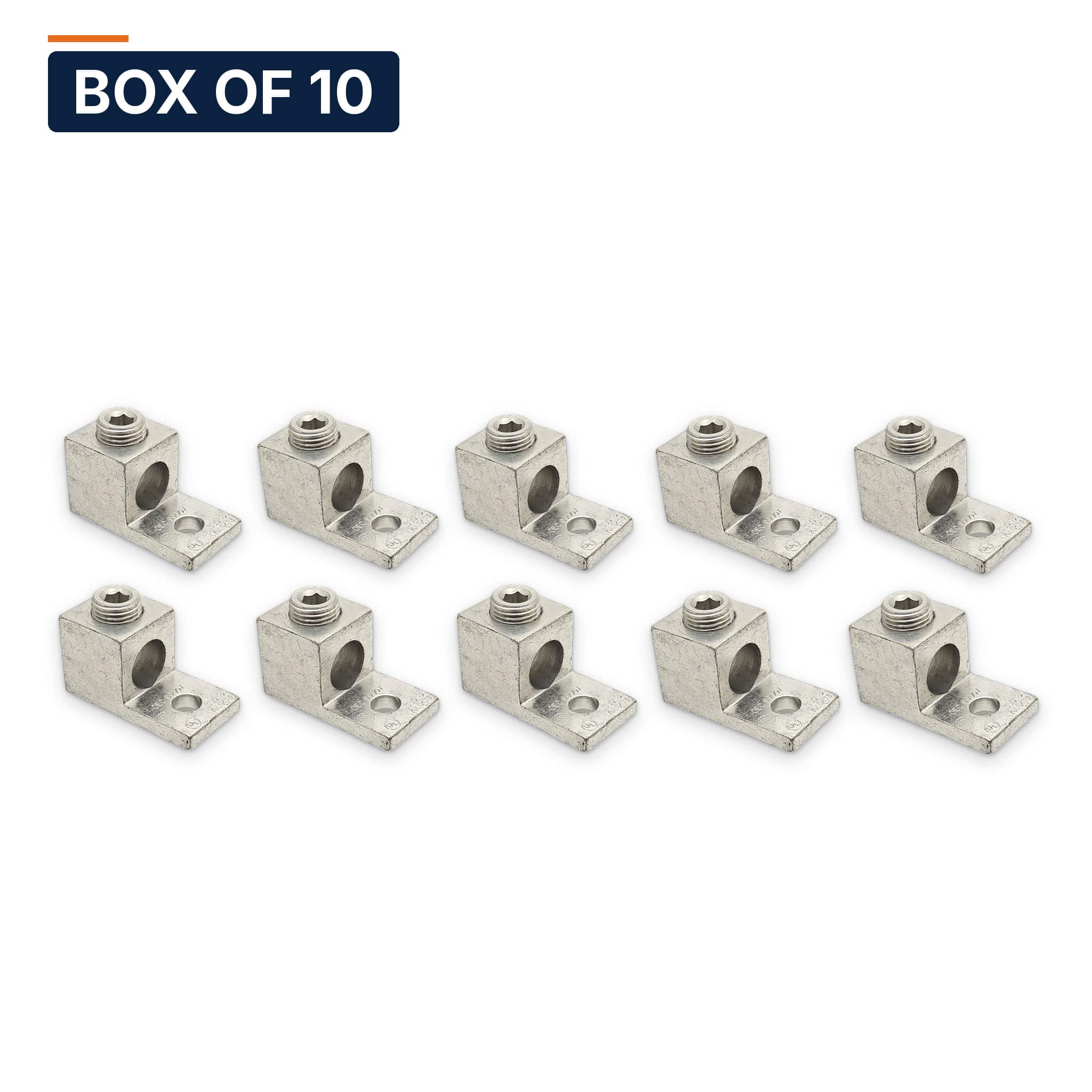

The Conversions Tech CT-T1H1-800 is a dual-rated mechanical lug for terminating aluminum or copper conductor (300-800 kcmil) with a reusable set-screw connection - no crimp tool or dies required. Machined from 6061-T6 aluminum alloy and electro tin plated for low contact resistance and corrosion protection.
| Specifications | |
| Conductor range | 300-800 kcmil (AL/CU dual rated) |
| Conductors | 1 |
| Mounting stud | 5/8 |
| Material / finish | 6061-T6 aluminum, electro tin plated |
| Rating | 600 V, 90C, UL 486A/B Listed |
| Competitor Cross-Reference — CT-T1H1-800 | |
| NSI | 800T |
| ILSCO | TA-800 |
| Burndy | KA40U |
| ABB / T&B Blackburn | ADR80 |
| Penn-Union | LA-800 |
Switching from a competitor? Same specs, same certifications, at a fraction of the price. See the full cross-reference hub or email CS@ConversionsTech.com — we match any part in 1 business day.
Competitor names and part numbers are trademarks of their respective owners, referenced for compatibility purposes only. Verify conductor range and stud size before substitution.
Standard termination hardware for load centers, panelboards, safety switches, transformers, and transfer switches. Ships same day when ordered by 2 PM ET.
Specifications
| Part Number | CT-T1H1-800 |
| Category | Electrical connector |
| Wire Range | 300–800 kcmil |
| Configuration | 1 |
| Weight | 0.22 lb |
| HS Code | 8536.90.4000 |
Cross-Reference: CT-T1H1-800
| Brand | Part | Notes |
|---|---|---|
| ILSCO ClearChoice | TA-800* | 1-conductor dual-rated mechanical lug; ILSCO TA-2/0 street price runs + vs CT |
| Blackburn (ABB) | ADR800* | dual-rated mechanical series |
| Burndy | KA series* | match by wire range 300–800 kcmil and stud size |
*Cross by published wire range/stud specifications - verify fit for your application. Trademarks belong to their owners. Dual-rated AL/CU mechanical lug, tin-plated aluminum body, 300–800 kcmil, 1-hole mount, UL 486A/B class.
