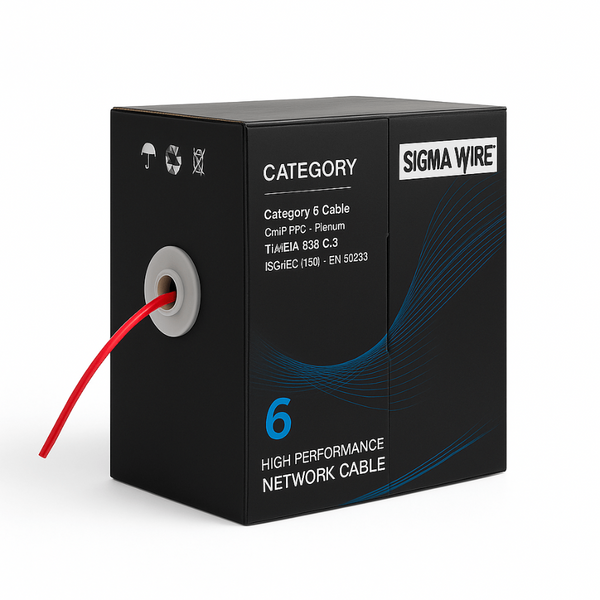

Cat6 CMP Plenum Ethernet Cable – 1000 ft Pull-Box (Red)
Shipping calculated at checkout
SKU: 950-144
Only 11 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech™ Cat6 CMP Plenum Cable – 1000 ft pull-box in safety-red. Built with pure 23 AWG solid bare copper and tested to 550 MHz, this low-smoke, UL/ETL-listed cable powers 10 GbE, PoE/PoE++, and HDBaseT runs while staying 100 % code-compliant for data centers, offices, and school plenum spaces.
- CMP/FT6 Plenum Jacket: Low-smoke, flame-retardant PVC tested to UL 910 for safe installation in return-air spaces.
- Pure Solid Bare Copper: Eight precision-tuned 23 AWG conductors ensure <2 % insertion loss—outperforming CCA and mixed-metal cables.
- 550 MHz Bandwidth: Exceeds ANSI/TIA-568-C.2 Cat6 specs; handles 10 GbE up to 55 m, 1 GbE to 100 m, plus PoE, PoE+, and PoE++ loads (up to 90 W).
- Star Separator & Tight Twist: Central spline and maintained pair geometry crush crosstalk (NEXT/PS-NEXT) for latency-free data streams.
- Installer-Friendly Pull-Box: Anti-tangle payout keeps runs smooth, slash install time, and avoids re-pulls.
- Third-Party Verified: UL Listed, ETL Verified, RoHS & REACH compliant; legend print every 2 ft simplifies inspections.
Technical Specifications
| Category Rating | Cat6 (ANSI/TIA-568-C.2) |
|---|---|
| Flame Rating | CMP / FT6 Plenum (UL 910) |
| Conductor Material | 100 % Solid Bare Copper |
| Gauge | 23 AWG |
| Pairs | 4 Unshielded Twisted Pairs (UTP) with Star Divider |
| Bandwidth | 550 MHz |
| Outer Diameter | 0.23 in ± 0.02 in (5.9 mm) |
| Cable Length | 1000 ft (305 m) – Reel-in-Box |
| Color | High-Visibility Red |
| Voltage Rating | 300 V |
| Operating Temp | -20 °C to +75 °C |
Ideal Applications
- Data-center trunk runs & MDF/IDF backbone drops
- PoE/PoE++ LED lighting, IP CCTV, Wi-Fi 6/6E access points
- AV-over-IP & HDBaseT 4K/60 video distribution
- Hospital, university, and high-rise office plenum spaces
- Future-proof projects where cable re-pulls cost a fortune
Boost uptime, crush latency, and stay inspection-ready—choose Conversions Tech Cat6 CMP cable for your next plenum install.
