1-Gang Die-Cast Weatherproof Box 3/4" Hubs | 18.3 in³ UL Listed
Shipping calculated at checkout
SKU: 210-31011
211 in stock
Open here

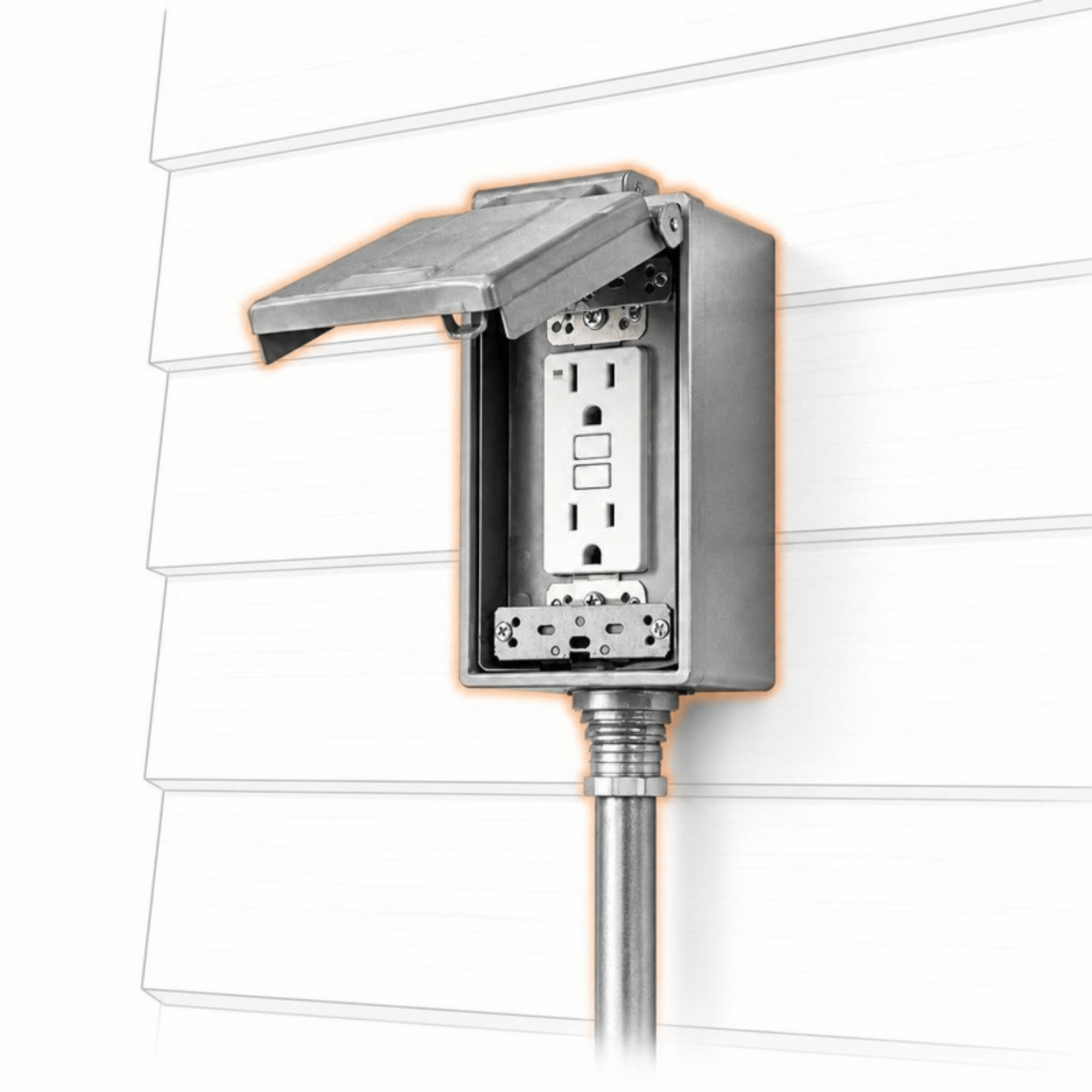

The 1-Gang Die-Cast Metal Weatherproof Electrical Box provides a rugged enclosure for single-gang devices including switches, GFCI outlets, receptacles, and outdoor lighting fixtures. Engineered for indoor and outdoor applications, this box delivers corrosion resistance and mechanical protection in wet, damp, and exposed locations. The seamless die-cast aluminum alloy construction with electrostatic gray powder coat finish resists UV degradation and rust. Three ¾″ NPT threaded hubs accommodate standard EMT and RMC conduit entry from the back and both sides.
Specifications
- Material: Seamless Die-Cast Aluminum Alloy
- Finish: Electrostatic Powder Coat, Gray (UV & Rust Resistant)
- Dimensions: 2.80″ × 4.50″ × 2.10″ (Depth)
- Hub Size: ¾″ NPT (Compatible with Standard EMT/RMC Conduit)
- Hub Count: 3 (Back + Two Sides)
- Internal Volume: 18.3 in³
- Mounting: Integrated Lugs for Secure Surface Installation
- Certifications: UL Listed, RoHS Compliant
- Applications: Switches, GFCI Outlets, Receptacles, and Outdoor Lighting Fixtures
Cross-Reference: 210-31011
| Brand | Part Number | Notes |
|---|---|---|
| Hubbell Bell | 5324-0 | Same trade size and fitting type |
| Conversions Tech | 210-31011 | Stocked; same-day shipping on in-stock items |
Crosses match trade size, fitting type and listing class. Verify fit against the manufacturer data sheet for your application. Trademarks belong to their owners. Look up any competitor number on the cross-reference hub.
FAQ
What conduit types work with the ¾″ threaded hubs?
The ¾″ NPT threaded hubs accept standard EMT and RMC conduit. Thread conduit into the hub and tighten to establish a sealed connection suitable for wet locations.
Is this box rated for outdoor use?
Yes. The die-cast aluminum construction with UV-resistant powder coat finish and threaded hub design provides weatherproof protection for outdoor installations when properly installed with compatible covers and gaskets.
What is the internal volume and why does it matter?
The 18.3 cubic inch internal volume provides sufficient space for device termination and conductor fill per NEC requirements for single-gang device boxes. Verify conductor count and size against NEC box fill calculations for your specific installation.
