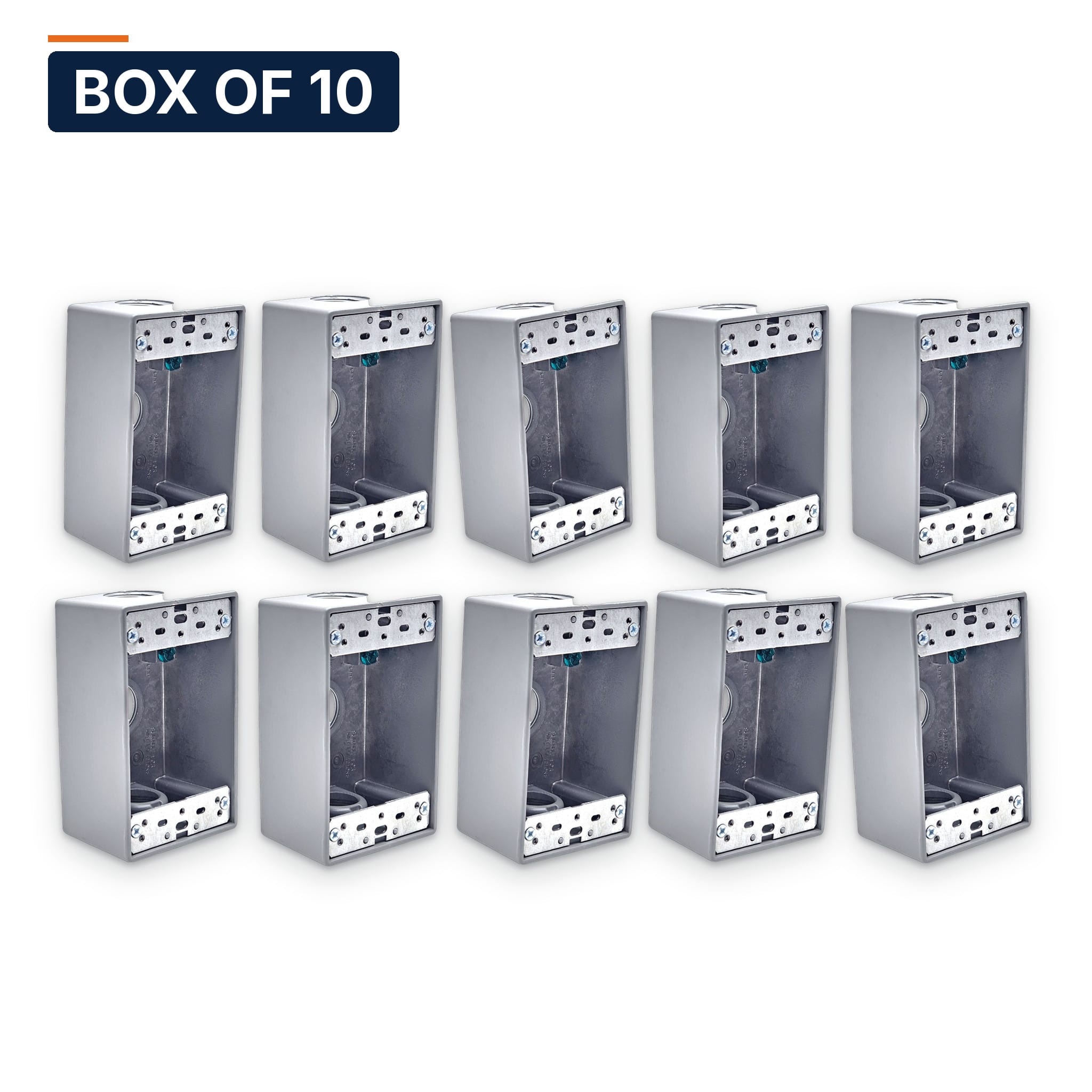

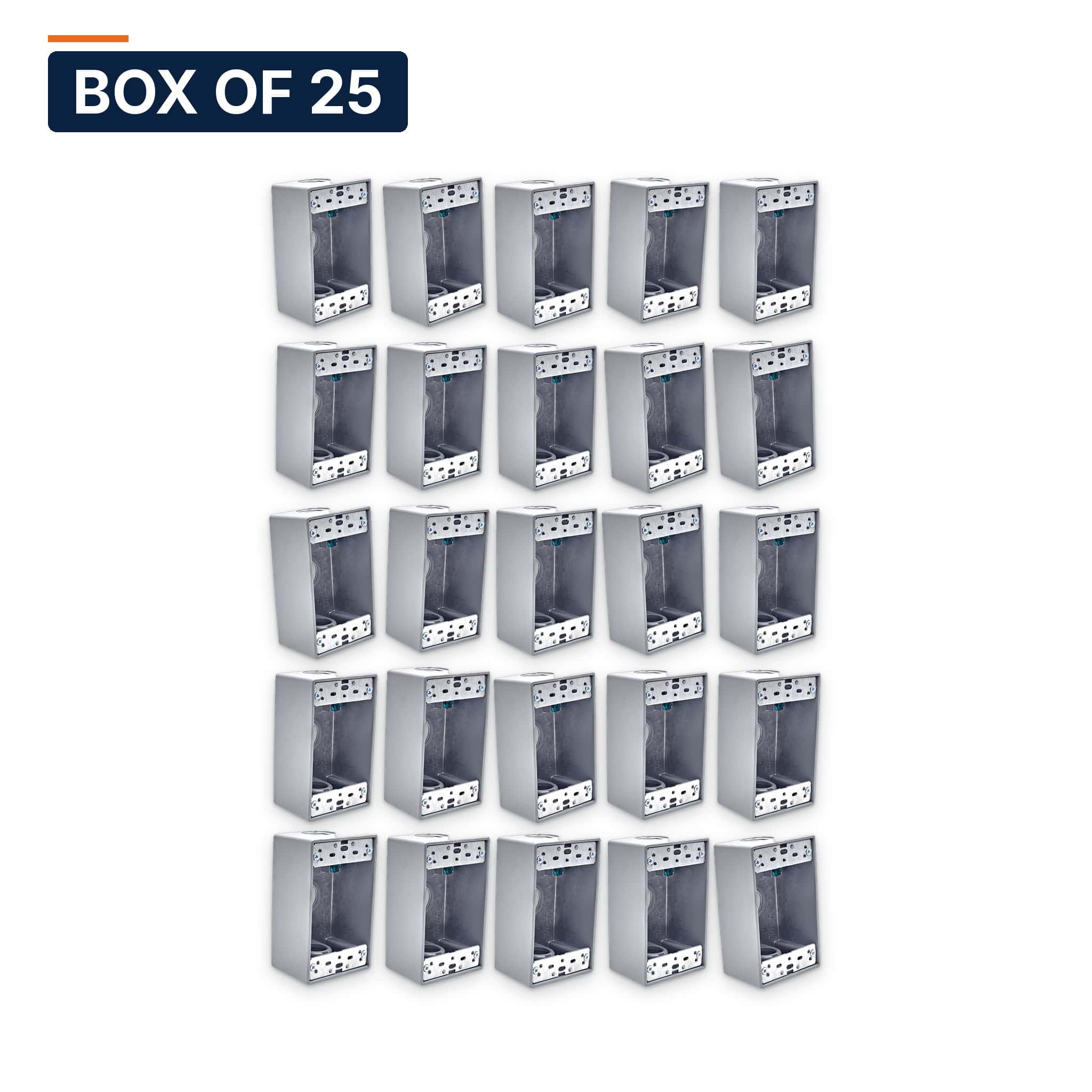

1-Gang Die-Cast Metal Electrical Box 3-Hub 1" Deep | UL Listed, RoHS
Shipping calculated at checkout
SKU: 210-31023
100 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

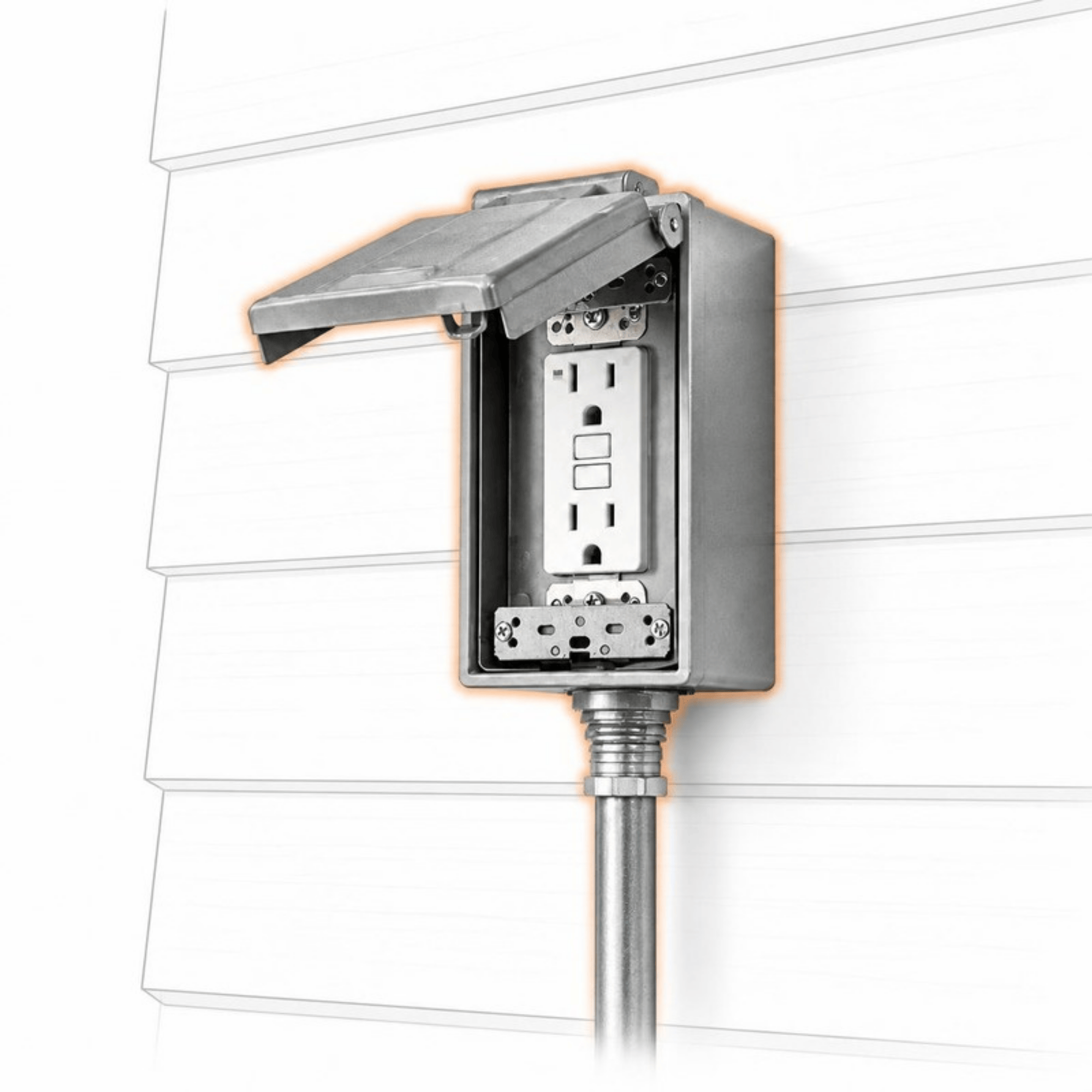

The Conversions Tech 1-Gang Die-Cast Metal Electrical Box is engineered for housing a single device—switch, outlet, or lighting control—in indoor and outdoor installations. The seamless die-cast aluminum alloy body with powder-coated gray finish provides corrosion and UV resistance for demanding environments. At 1.00" depth, this compact box suits shallow wall and surface-mount applications where space is limited. Three threaded hubs enable flexible conduit routing from back or side entry points.
Specifications
- Material: Seamless Die-Cast Aluminum Alloy
- Finish: Powder-Coated Gray (UV & Corrosion Resistant)
- Dimensions: 2.80" × 4.50" × 1.00" (Depth)
- Hub Size: ¾" Threaded Hubs (Fits EMT / RMC / PVC Conduit)
- Hub Count: 3 (Back and Two Sides)
- Gang Compatibility: 1-Gang (Single Device)
- Mounting: Integrated Surface Mounting Lugs
- Certifications: UL Listed • RoHS Compliant
- Hub Locations: Back and Sides for Flexible Conduit Access
- Grounding: Pre-Tapped Ground Screw Hole Included
Cross-Reference
Equivalent to Crouse-Hinds and Appleton 1-gang weatherproof box form factors. Provides comparable die-cast aluminum construction and hub configurations at lower cost.
FAQ
What conduit sizes fit the ¾" hubs?
The ¾" threaded hubs accommodate EMT, RMC, and PVC conduit with matching trade size fittings. Verify thread compatibility with your selected conduit system.
Is this box NEMA-rated for wet locations?
The die-cast aluminum body with powder-coated finish is weatherproof and corrosion-resistant. For wet location compliance, pair with appropriate gasketed covers and seal unused hubs with watertight closure plugs per NEC requirements.
Can this box be recessed in a wall?
This unit is designed for surface mounting with integrated lugs. The 1.00" depth suits shallow wall applications where minimal projection is required, but it is not intended for flush recessed installation.
