1 Gang weatherproof Grey box with (5) 1/2" threaded outlets side entry
Shipping calculated at checkout
SKU: 210-31004HV
Out of stock
Open here

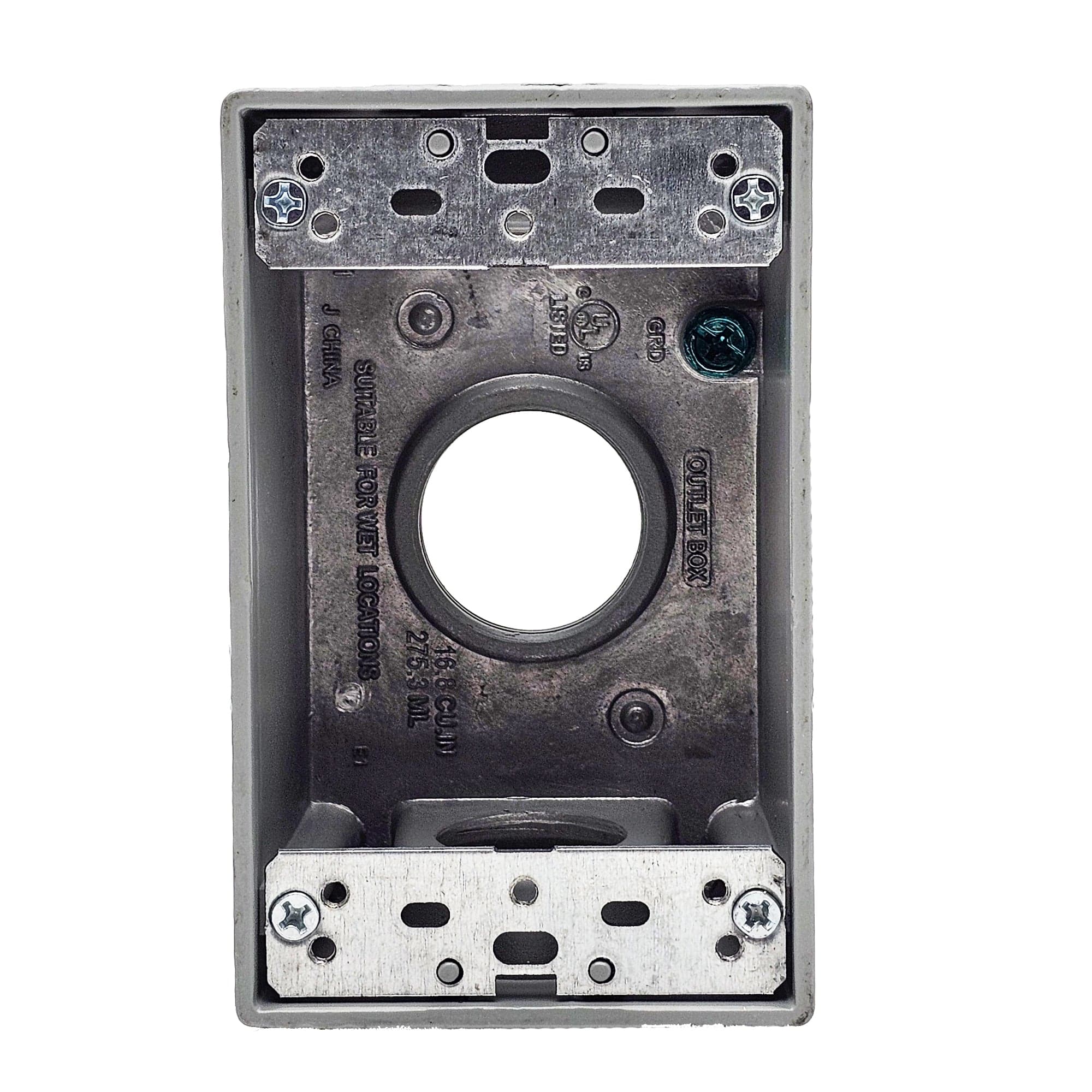

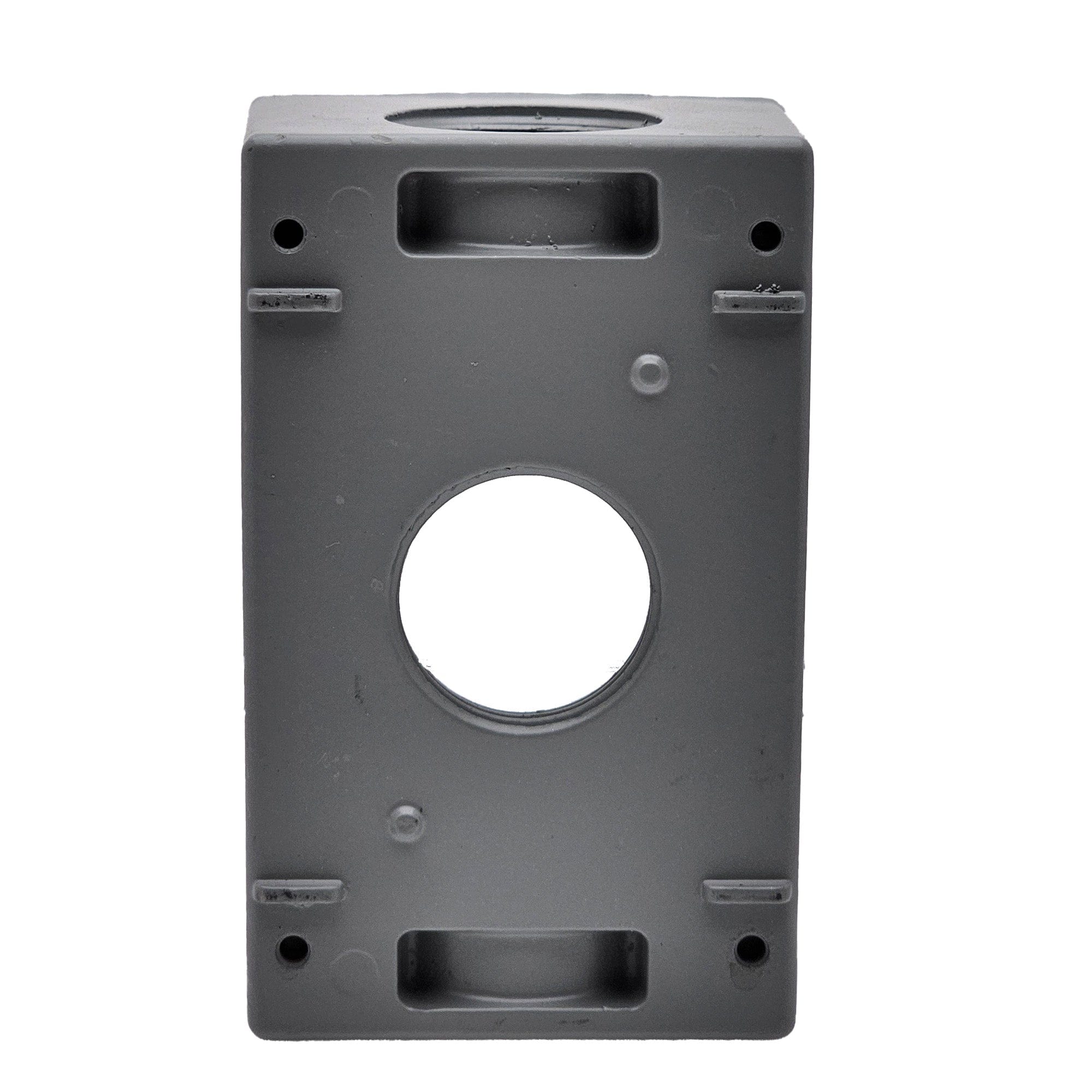

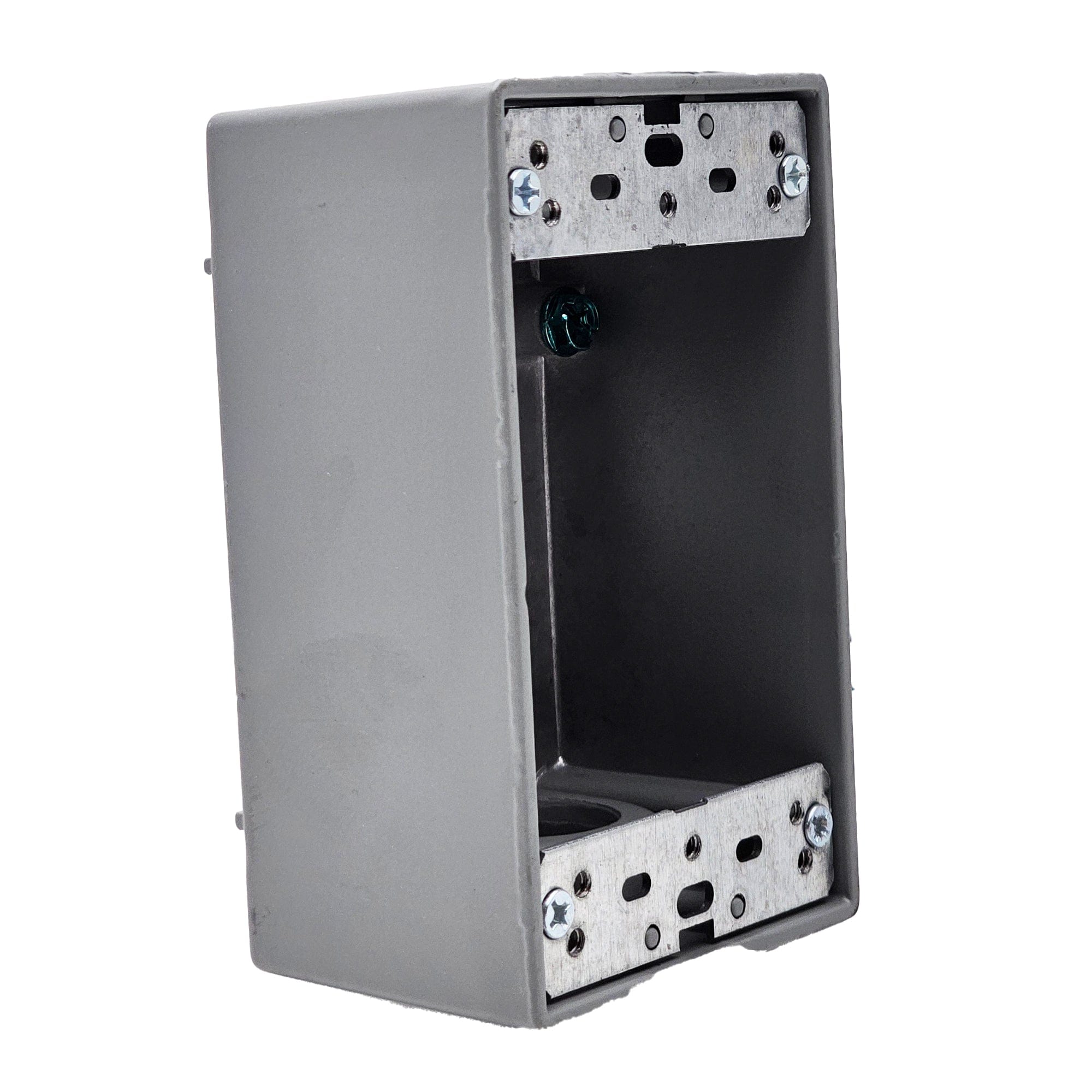

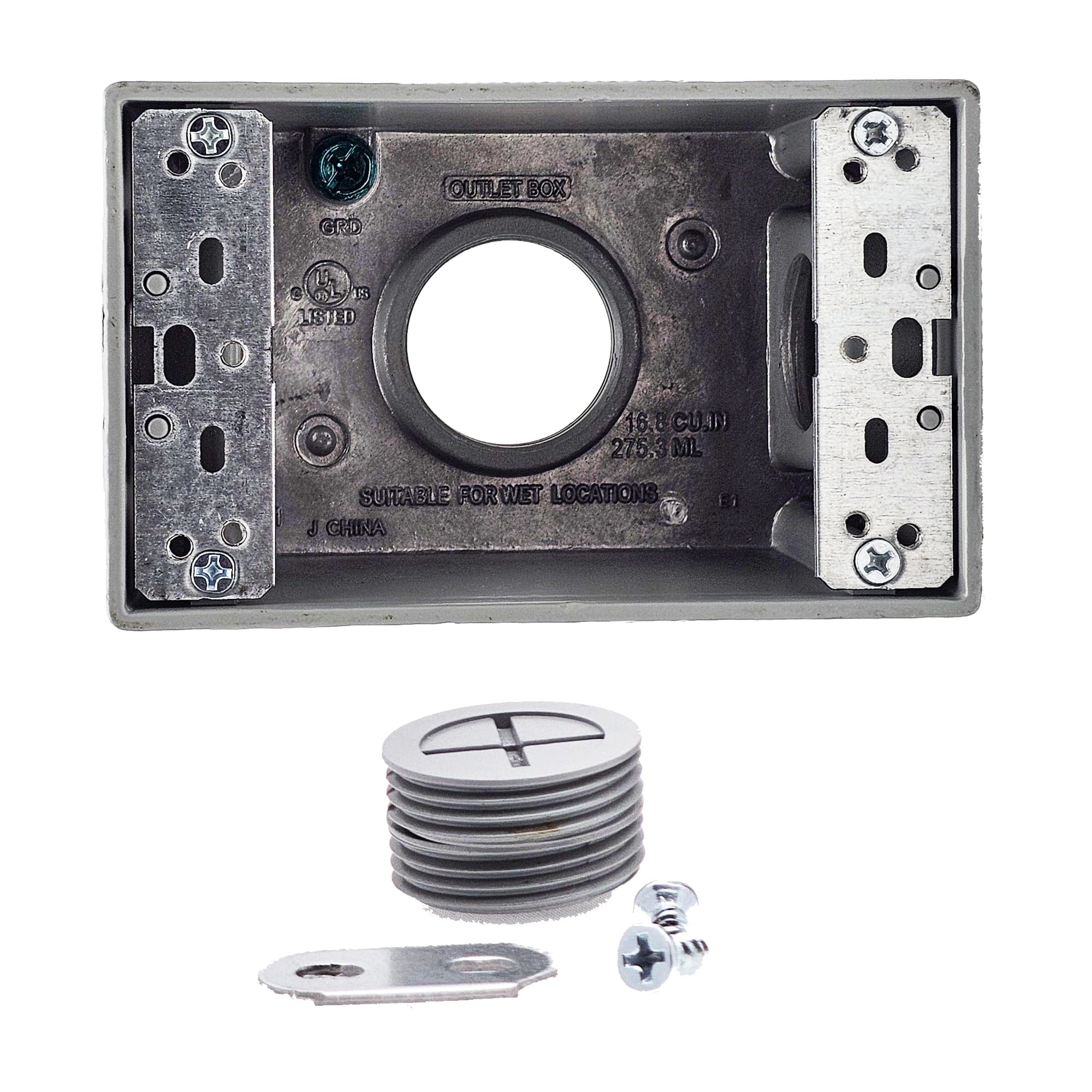

Die-Cast Metal 1-Gang Boxes Deep

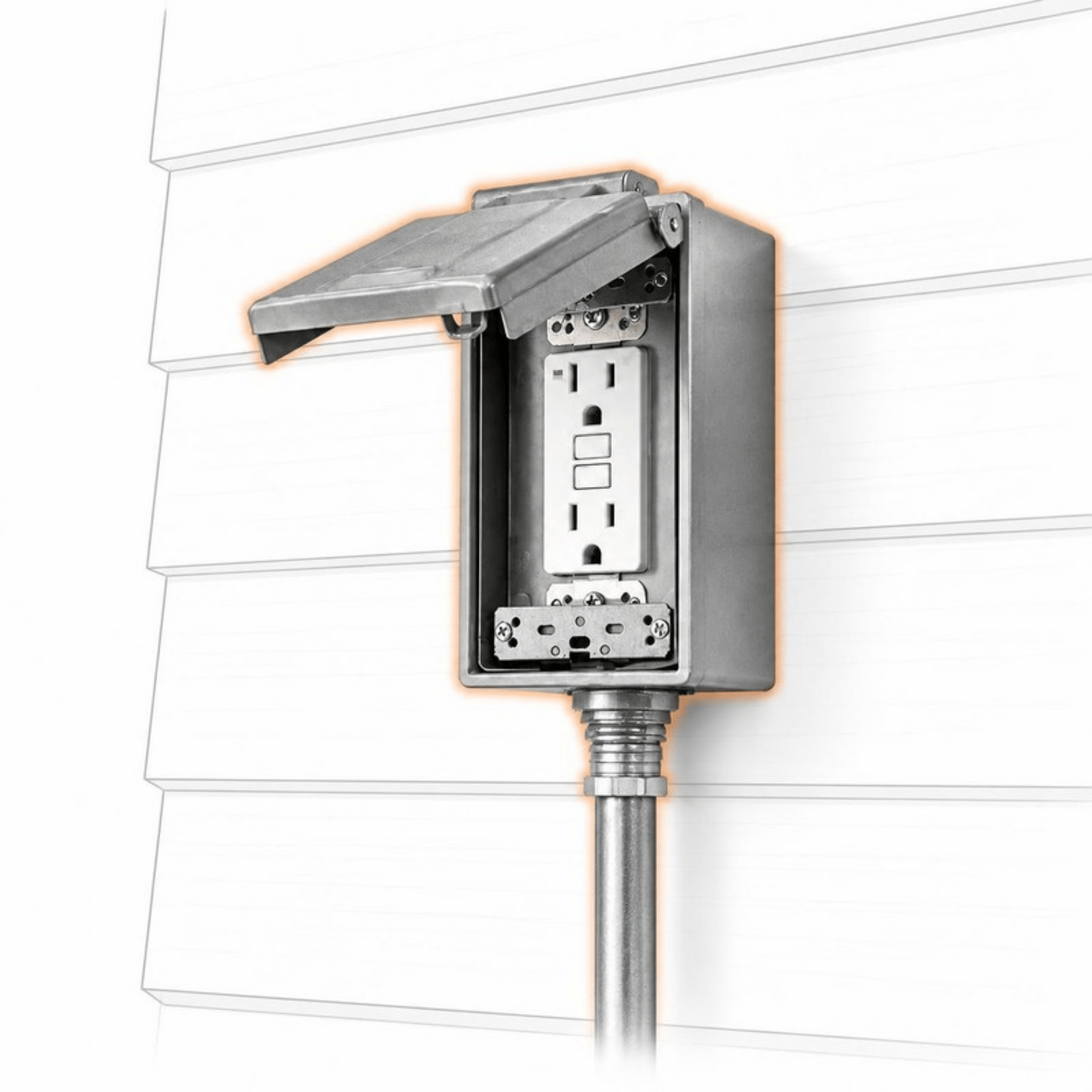

Precision-engineered die-cast metal 1-gang boxes, ideal for housing a single wired device such as a switch or outlet. These boxes are versatile, perfect for outdoor lighting fixtures and ensuring durability and protection for your electrical installations.
Specifications
- Material: Seamless die-cast metal for enhanced durability.
- Finish: Powder-coated in a neutral gray to fit various exteriors.
- Dimensions: 2.80" x 4.50" with a depth of 2.10", compact and efficient.
- Hub Size: Optimally designed for 1/2" hubs.
- Hub Count: 5 hubs provide versatile wiring options.
- Gang Compatibility: Perfectly suitable for 1 gang installations.
- Capacity: 18.3 cubic inches, offering ample space for wiring and devices.
- Mounting: Includes lug mounting for secure and easy installation.
- Certifications: Fully RohS and UL compliant, meeting strict safety standards.
- Hub Locations: Strategically placed at the back and each side for ease of wiring.
Installation Instructions
- Identify the ideal installation location based on your wiring layout.
- Secure the box in place using the pre-fitted mounting lugs.
- Ensure conduits are attached to the hubs for a snug fit.
- Wire and connect your device(s) within the box.
- Use the provided screws to mount your device onto the box.
- Apply closure plugs to seal any hubs not in use.
- For safety, attach the ground wire to the dedicated ground screw.
