2-Hole Copper Compression Lug 4/0 AWG 3/8" Stud | 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-09944
1000 in stock
Open here

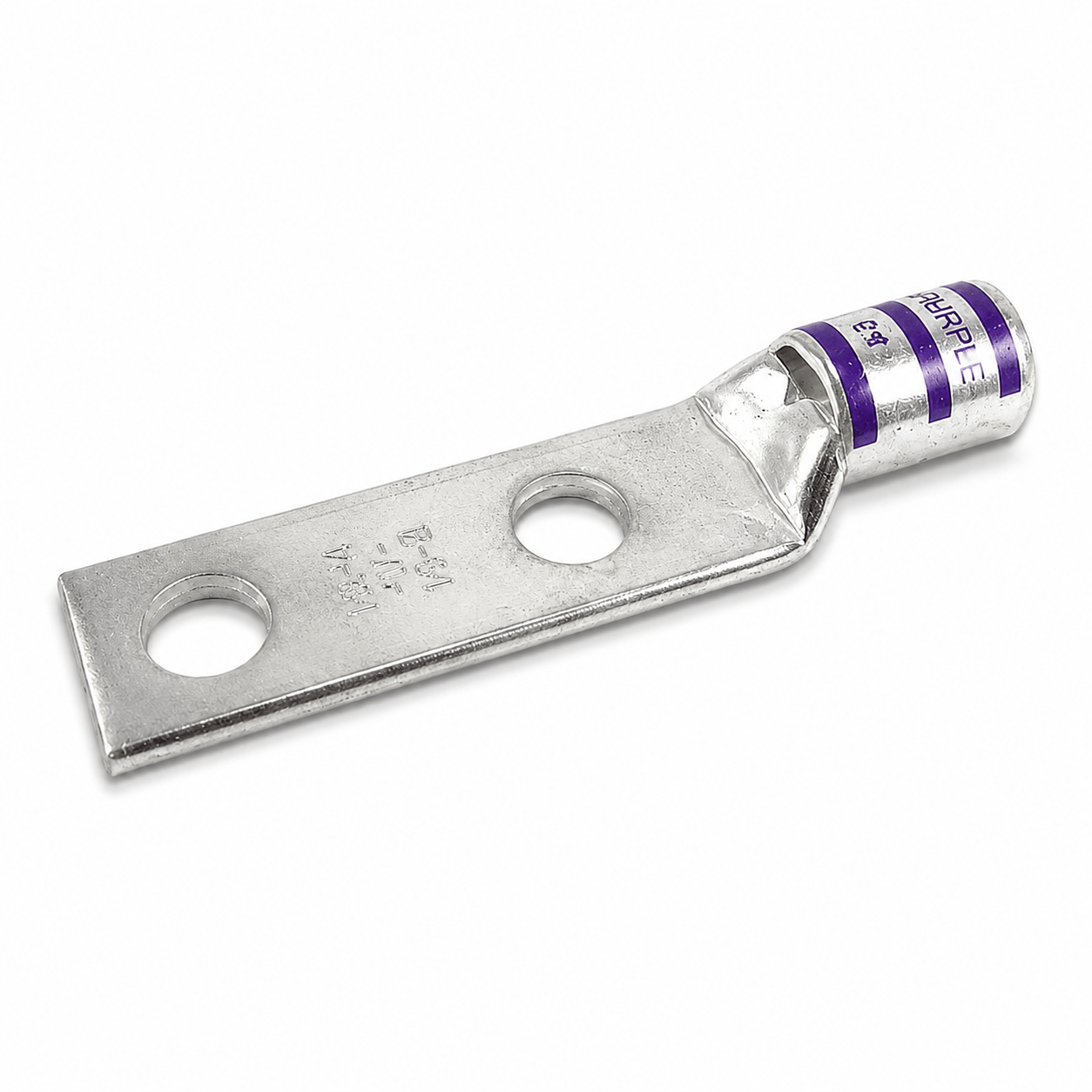

The Conversions Tech 2-hole copper compression lug is engineered for secure termination of 4/0 AWG conductors in industrial power distribution, switchgear, and transformer applications. The short barrel design with chamfered entry facilitates wire insertion, while the integrated sight window enables visual verification of proper conductor seating before crimping. Tin plating provides corrosion resistance for extended service life in standard electrical environments.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 4/0 AWG
- Stud Size: 3/8 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1 Inch
- Pad Size: 1.937" Length x 0.999" Width x 0.141" Thickness
- Barrel Length: 0.875 Inches
- Barrel Size: 0.546" Inner Diameter x 0.687" Outer Diameter
- Barrel Entry Type: Chamfered
- Overall Length: 3.303 Inches
- Color Code: Yellow
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-54
Cross-Reference
Equivalent to standard 2-hole compression lug form factors from major manufacturers including Burndy, Ilsco, and Panduit specifications for 4/0 AWG 3/8" stud applications.
FAQ
What crimping tool and die are required for this lug?
Use a compression tool with die index I-54. The chamfered barrel entry and sight window assist with proper conductor positioning; verify full insertion through the sight window before crimping.
Is this lug suitable for 90°C conductor applications?
Yes. The lug is rated for 90°C continuous operation when used with 90°C rated copper conductors and properly installed per applicable electrical codes.
What does the yellow color code indicate?
The yellow color code identifies this lug as compatible with 4/0 AWG conductor size per standard industry color-coding systems, enabling quick field identification.
Specifications
| Part Number | 210-09944 |
| Category | Electrical connector |
| Weight | 0.3 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 4/0 AWG, 3/8 Inch stud
CT P/N 210-09944 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA282N |
| Panduit | LCC4/0-12-X |
| NSI Industries | L40N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
