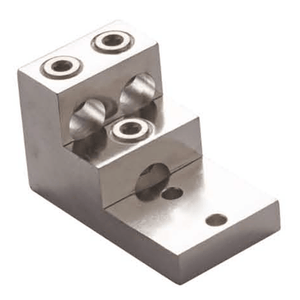

Aluminum Panel Board Connector | 3 Barrel | 2 Hole Mount | Electro-Tin Plated
Shipping calculated at checkout
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
This connector features three barrels, making it ideal for connecting multiple wires with ease. The two mounting holes allow for easy attachment to any panel board, and its compact size ensures it can fit into tight spaces without sacrificing performance.
Made from high-quality aluminum alloy, this connector is designed to withstand harsh environments and extreme temperatures. Its corrosion-resistant properties ensure it will provide long-lasting performance and reliable grounding for years to come.
Our team of experts has designed this connector with safety and reliability in mind. We understand the importance of proper electrical grounding and have ensured that our product meets the highest industry standards.
- Made from high strength aluminum alloy
- Electro-Tin plated for low contact resistance and protection against corrosion when used with copper wire
- Dual rated for copper and aluminum conductors
- CSA 22.2 certified
- Rated 600 Volts / 90°C
- Easy to install
In Inches, The Dimensions Are:
|
Variant
|
Max
|
Min
|
Stud Size
|
L
|
W
|
H
|
F
|
|
350 MCM | 5/16 Stud
|
350 MCM
|
6 STR
|
5/16
|
3.85
|
1.97
|
2.01
|
0.31
|
|
350 MCM | 3/8 Stud
|
350 MCM
|
6 STR
|
3/8
|
3.60
|
1.97
|
2.01
|
0.31
|
|
600 MCM | 3/8 Stud
|
600 MCM
|
2 STR
|
3/8
|
4.92
|
2.68
|
2.99
|
0.76
|
|
750 MCM | 3/8 Stud
|
750 MCM
|
1/0 STR
|
3/8
|
4.92
|
2.83
|
2.99
|
0.76
|
|
750 MCM | 1/2 Stud
|
750 MCM
|
1/0 STR
|
1/2
|
4.92
|
2.83
|
2.99
|
0.76
|
