Cat5e CMP 1000ft Box | Gray | Bare Copper | Plenum | Ethernet Cable
Shipping calculated at checkout
SKU: 960-209
100 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

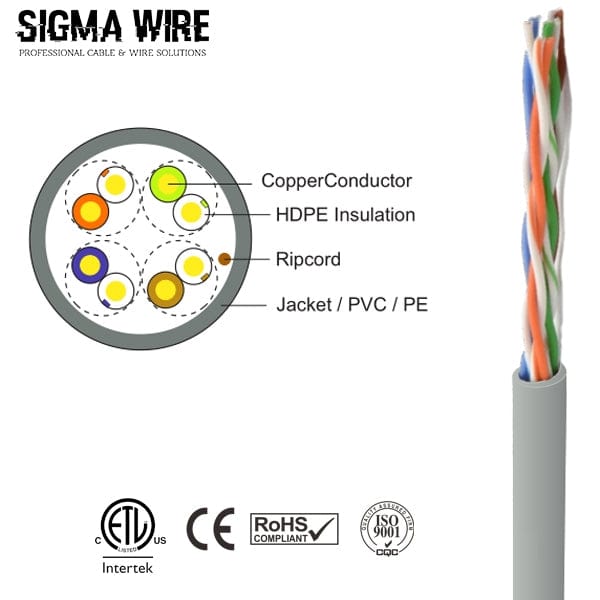

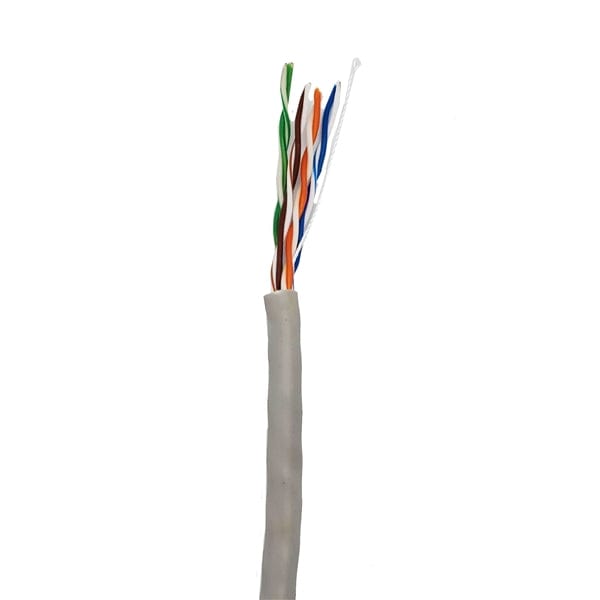

1000-ft Cat5e Plenum (CMP) Ethernet Cable – Solid 24 AWG Copper | Gray | Conversions Tech™
Conversions Tech™ Cat5e Plenum Cable powers enterprise Wi-Fi, VoIP, CCTV, and IoT in the strictest air-handling environments. Each precision-twisted solid 24 AWG bare-copper conductor drives 1000BASE-T, IP video, and PoE++ loads up to 90 W with 350 MHz certified headroom. The CMP PVC jacket meets UL 910 plenum flame-spread and smoke standards, while color-coded Red (example), White, or Gray options simplify cable-tray ID. Choose the white easy-pull box or gray pro reel for snag-free runs up to 1000 ft (305 m).
Key Performance Benefits
- Pure Bare-Copper Core – 99.99 % conductivity outperforms CCA for lower DC resistance, cooler PoE, and longer life.
- 350 MHz Certified Bandwidth – Exceeds ANSI/TIA-568.2-D for flawless Gigabit data, HD IP video, and low-latency VoIP.
- CMP Plenum Safety – UL 910, NFPA 262 compliant jacket resists flame & smoke in return-air ducts and plenum spaces.
- Precision UTP Geometry – Tight-lay twists and advanced dielectric slash NEXT & ELFEXT without bulky shielding.
- PoE+/PoE++ (IEEE 802.3af/at/bt) – Delivers up to 90 W to APs, cameras, sensors, and LED fixtures.

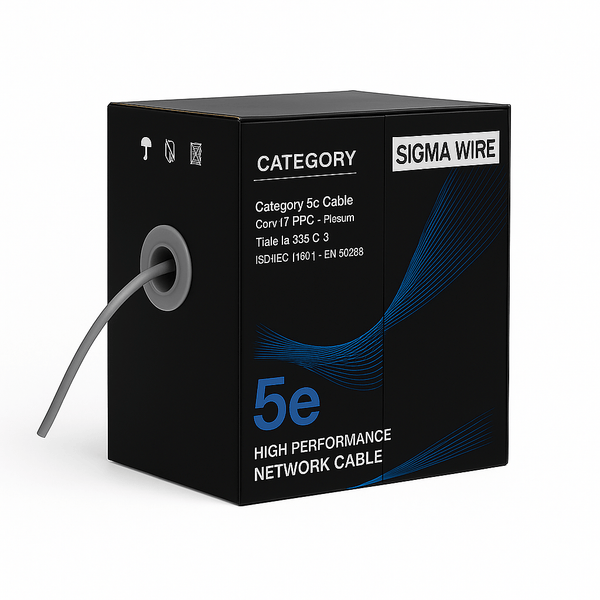

- Installer-Friendly Packaging – White variant: rugged pull-box with footage markers; Gray variant: smooth-feed reel for rack mounts.
- FOREVER WARRANTY – Lifetime replacement coverage & U.S. tech support from Conversions Tech.
Technical Specifications
| Category | Cat5e (ANSI/TIA-568.2-D) |
|---|---|
| Conductors | 4 × UTP, solid bare copper |
| Gauge | 24 AWG (0.51 mm) |
| Bandwidth | 350 MHz |
| Jacket Rating | CMP Plenum PVC – UL 910 |
| Colors | White (pull-box) · Gray (reel) |
| Length | 1000 ft / 305 m continuous |
| Temp Range | -20 °C → +75 °C |
| Compliance | UL 910, UL Code 444, NEC TIA-568-C.2, RoHS 3, cETLus |
| Part Numbers | CT-C5E-24SOLID-1000-WHT-CMP · CT-C5E-24SOLID-1000-GRY-CMP |
4 Reasons Pros Buy Direct from Conversions Tech
Headquartered in business-friendly Wyoming, we design, test, and ship every product from inside the United States—delivering genuine “Made-for-America” quality without the big-box markup.
Our in-house team owns every CAD file, mold, and QA station behind our weatherproof boxes, conduit bodies, and power inverters. Vertical control means tighter tolerances, UL-listed safety, and up to 30 % lower cost than private-label imports.
Thousands of SKUs sit ready to go. Orders placed by 2 p.m. ship the same day, keeping contractors, OEMs, and distributors on schedule.
Need a torque spec or an OEM quote at dawn? You’ll speak directly with the Conversions Tech engineering desk—not a script reader—for instant answers, custom kitting, and private-label options.
Bottom line: For rugged, code-compliant electrical solutions shipped fast from a trusted U.S. source, choose Conversions Tech and build it right the first time.
