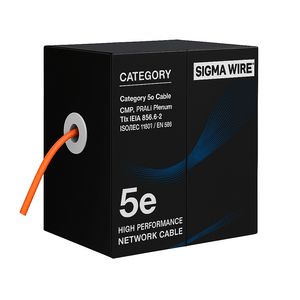

Cat5e CMR 1000ft Box | Orange | Bare Copper | Riser | Ethernet Cable
Shipping calculated at checkout
SKU: 960-234
100 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Cat 5e Riser-Rated Network Cable — 1000 ft Bare-Copper Spool
True-Gigabit speed. Zero installation drama.
Why Conversions Tech Cat 5e Beats Ordinary Riser Cable
- 350 MHz Bandwidth — Reliable Gigabit Ethernet & VoIP with headroom to spare.
- 24 AWG Bare-Copper Conductors — Up to 40 % lower resistance than CCA for stronger PoE++ runs.
- PoE +/PoE ++ & 4PPoE-Ready (IEEE 802.3af/at/bt) — Drive HD cameras, WAPs & LED lighting off one pull.
- Ultra-Low Return Loss — Twisted-pair geometry crushes EMI for rock-solid links.
- Tangle-Free Pull-Box — 1000 ft (305 m) sequential-footage spool speeds up installs & cuts scrap.
- Standards & Safety — ANSI/TIA-568.2-D, RoHS 3, & cETLus verified for code-compliant riser shafts.
Technical Specifications
| Item Type | Cat 5e UTP Riser (CMR) Cable |
|---|---|

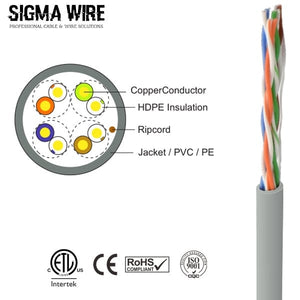

| Conductor | 24 AWG solid bare-copper (4 twisted pairs) |
| Bandwidth | 350 MHz |
| PoE Support | PoE +, PoE ++ / 4PPoE (IEEE 802.3af/at/bt) |
| Length | 1000 ft (305 m) tangle-free pull box |
| Certifications | ANSI/TIA-568.2-D • RoHS 3 • cETLus |
| Compliance | Flame-test riser rated (CMR) for vertical shafts |
Perfect For
- Commercial LAN Upgrades — Offices, schools, hospitals.
- Data Centers & IDF/MDF Rooms — Low-loss links to racks & patch panels.
- Video Surveillance — HD IP cameras & NVRs powered over Ethernet.
- Smart Buildings — PoE lighting, sensors & access-control hardware.
- Multi-Dwelling Units — Reliable broadband to every apartment.
