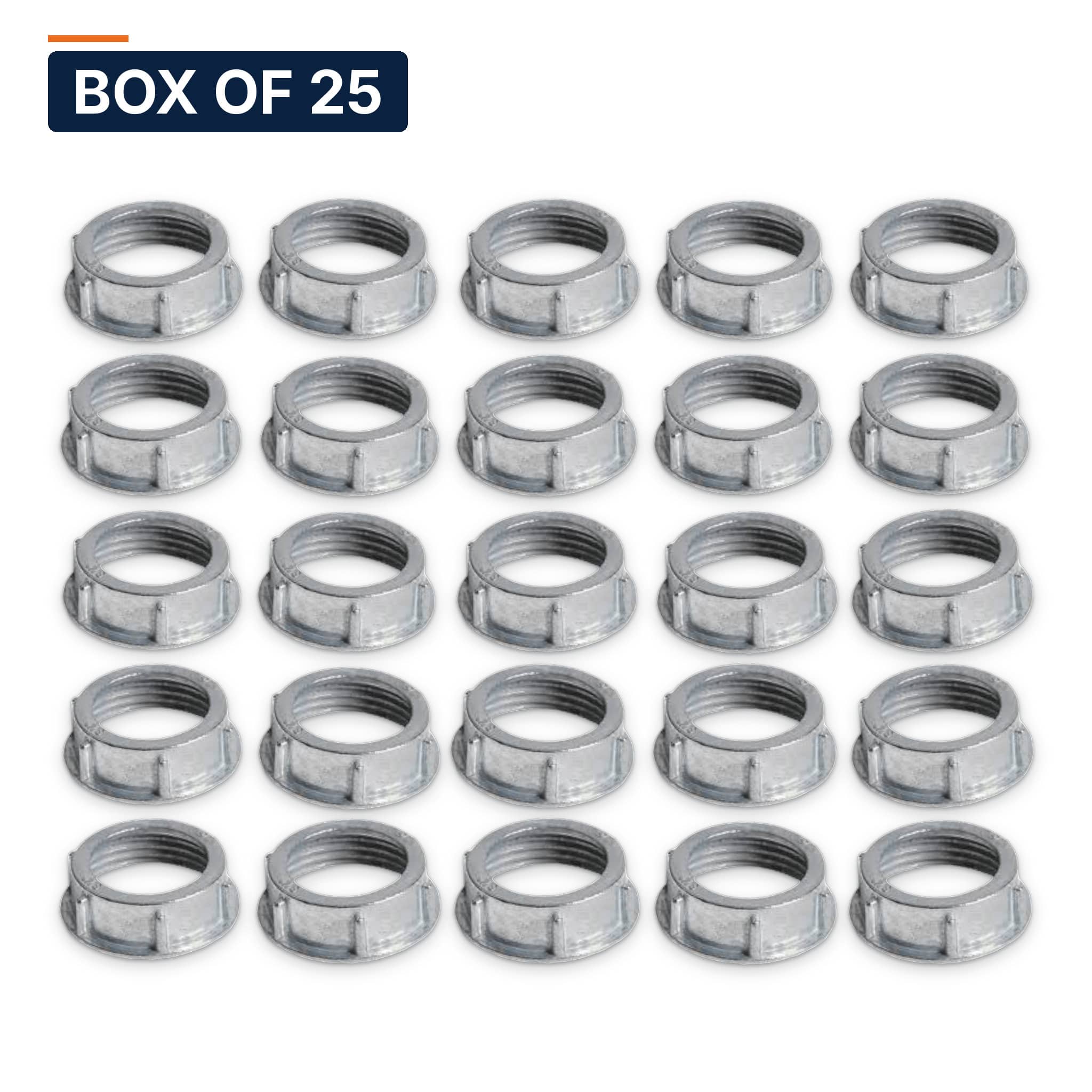

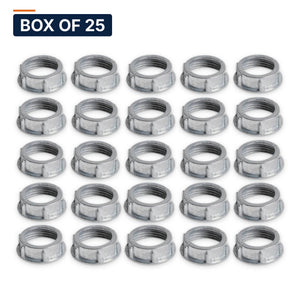

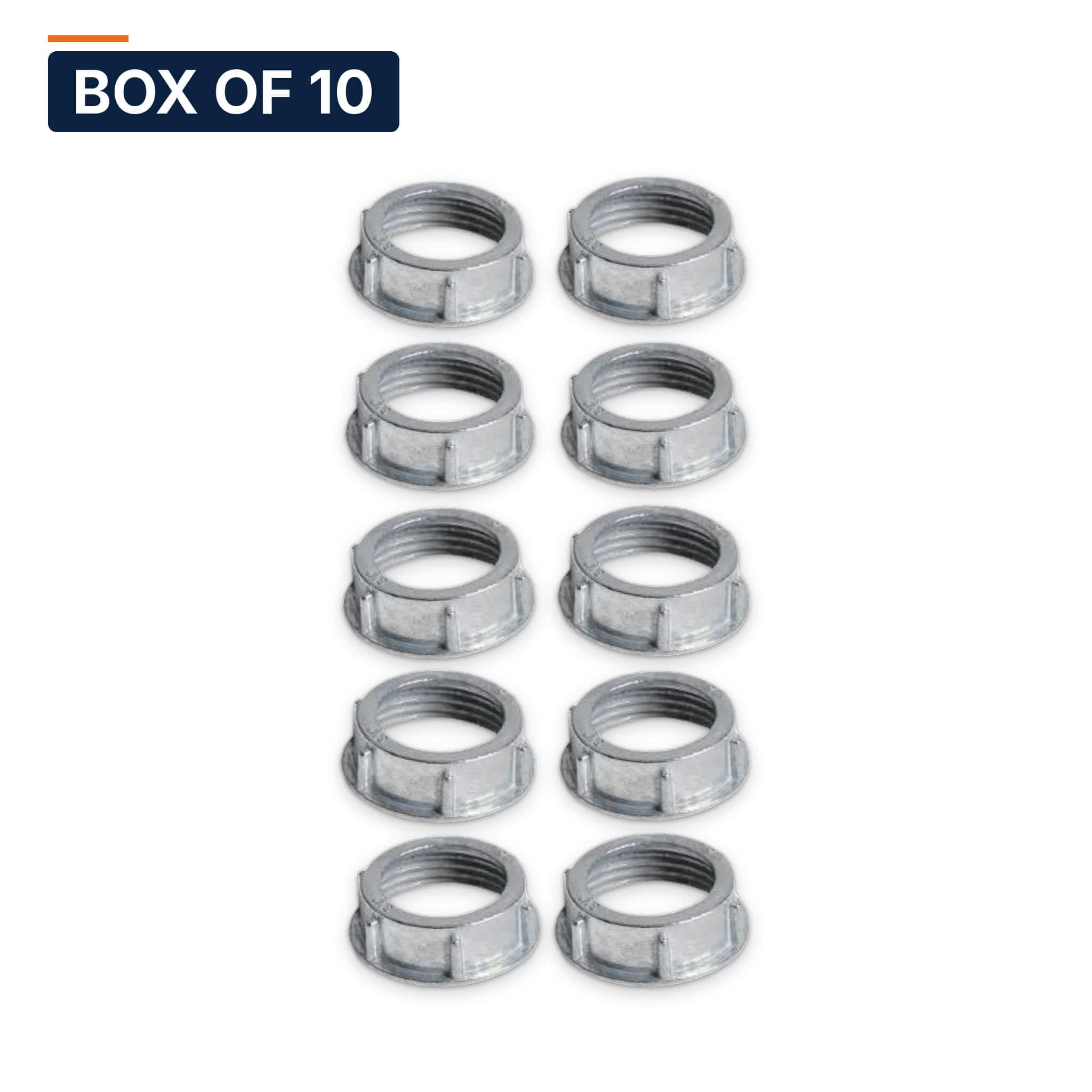

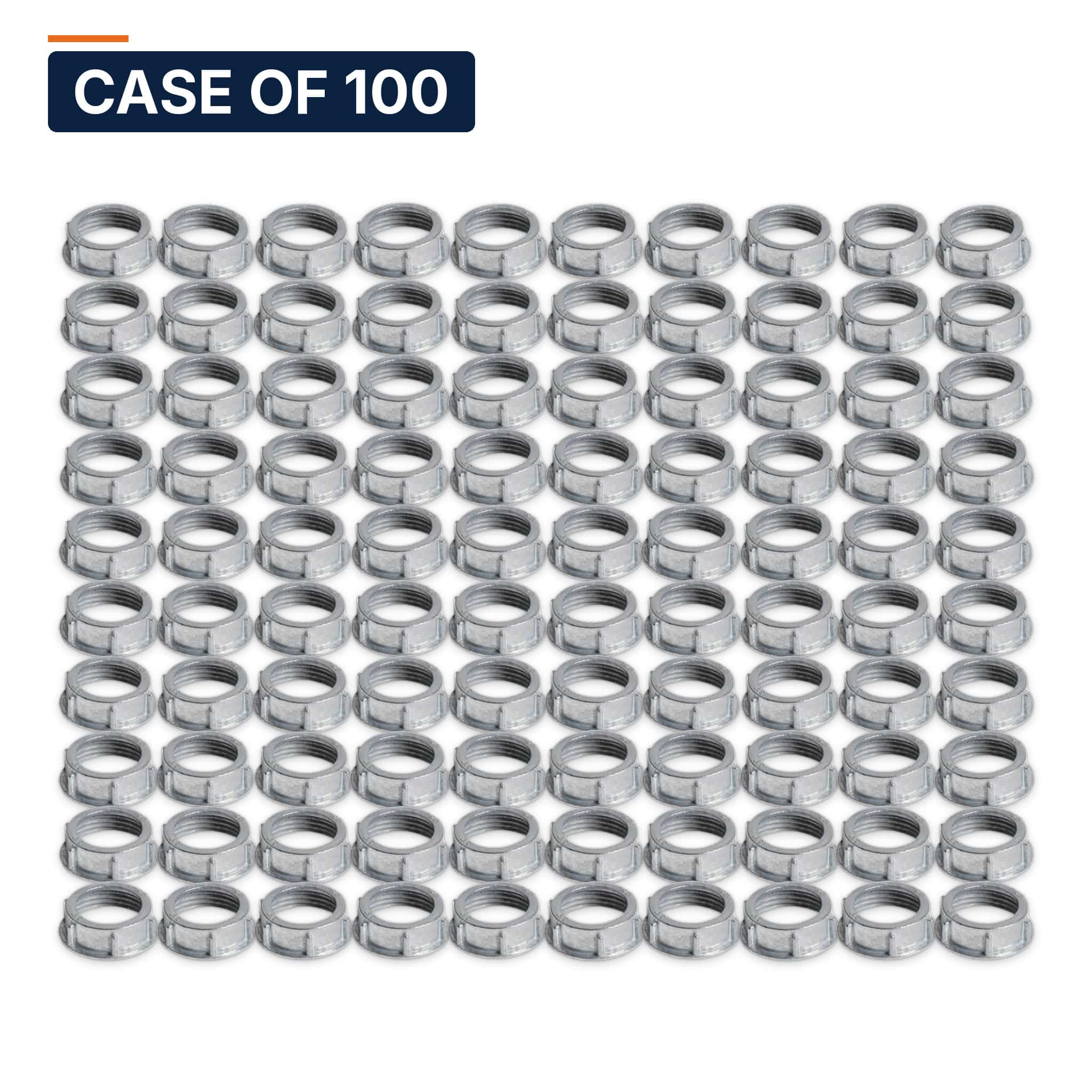

1-1/2 in. Conduit Bushing, Steel | UL 514B | 3113-0112
Shipping calculated at checkout
SKU: 3113-0112
1000 in stock
Open here
CT 3113-0112 — 1-1/2" conduit bushing, zinc-plated steel. For EMT / rigid / IMC trade size 1-1/2 (OD 1.740"). UL 514B.
| Part No. | 3113-0112 |
|---|---|
| Trade size | 1-1/2 in — fits OD 1.740 in |
| Raceway | EMT / rigid / IMC |
| Material / finish | Zinc-plated steel |
| Listing | UL 514B |
| Package | Sold each; box quantities priced through the trade desk |
Cross-reference
| Manufacturer | Part No. |
|---|---|
| RACO | 1106 class |
| Bridgeport | 1015-S class |
Crosses identify fittings of the same trade size, raceway, and listing class. "Class" entries are family-level — confirm the exact number on the manufacturer datasheet.
Where it's used
- Rounding the raceway edge inside the box to protect conductor insulation
- Threaded rigid and IMC entries
- Where 300.4(G) requires an insulating bushing for 4 AWG and larger, use an insulated or grounding bushing instead

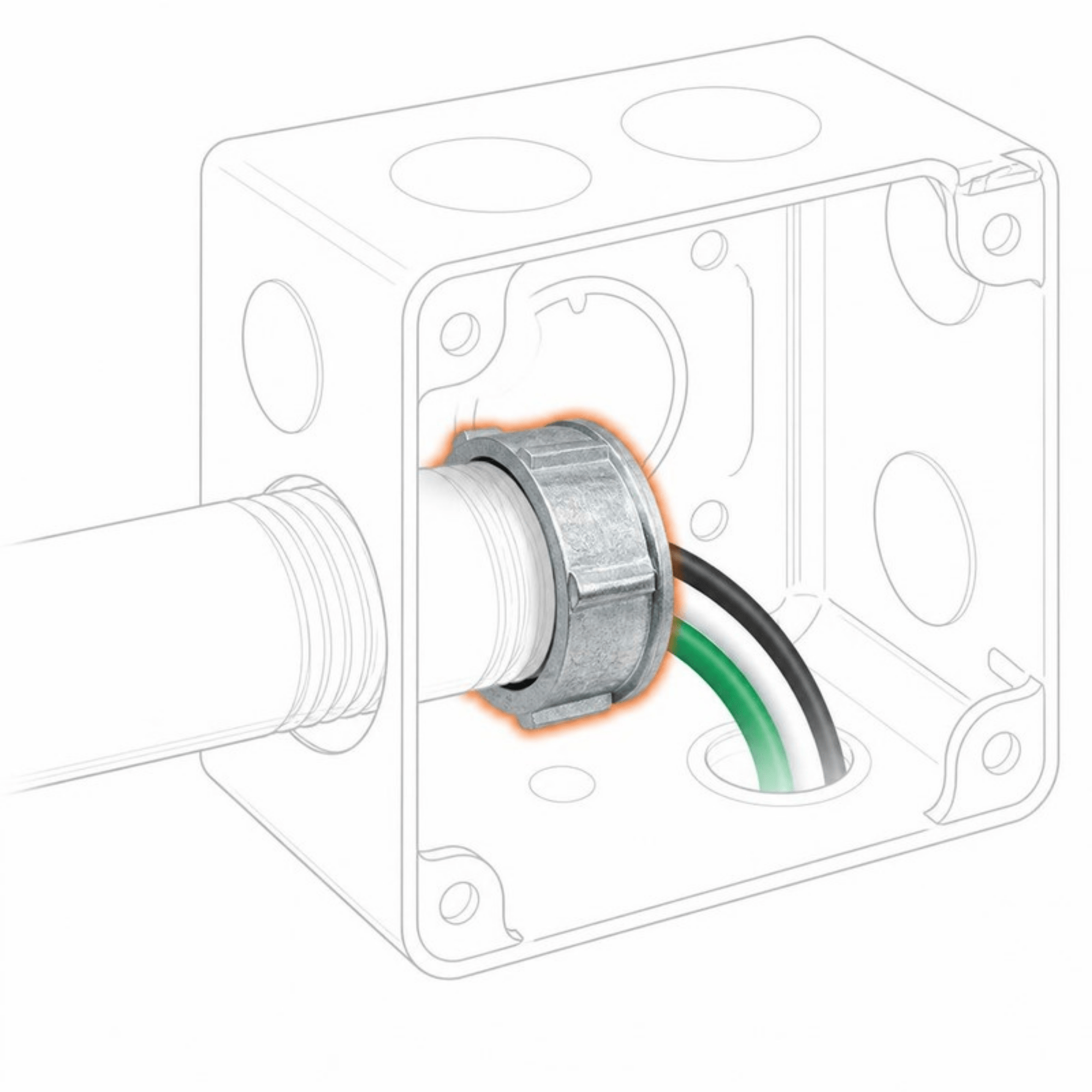

How to install
Thread on inside the enclosure after the locknut, hand-tight plus a quarter turn. Guide: Locknuts, Bushings and Grounding Bushings — NEC 250.97 / 250.92.
Complete the run — 1-1/2 in.
Connector · Coupling · Locknut · Grounding bushing · One-hole strap · Hanger
Stocked in Oxnard, CA — same-day shipping on orders by 2PM ET. Volume and trade pricing through the trade desk.
