Copper Standard Barrel One Hole Compression Lugs 1 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98016A
Out of stock
Open here
Goes with

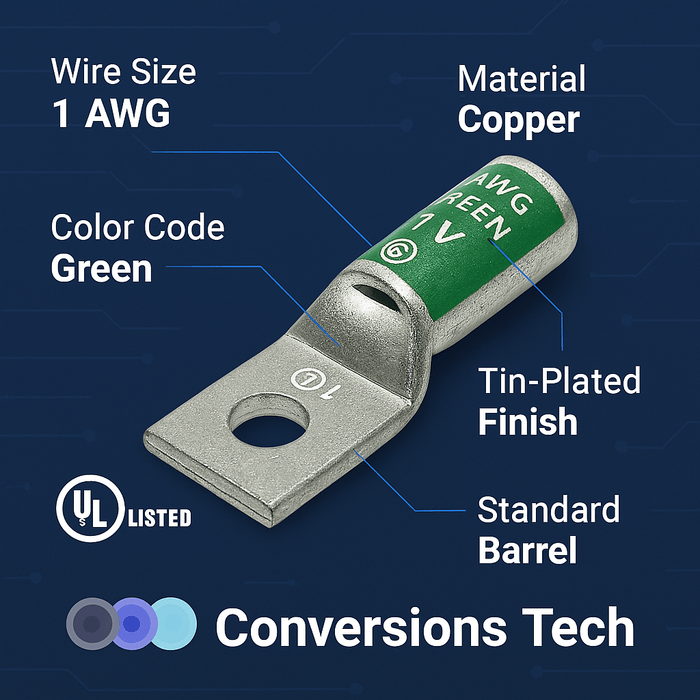

The Conversions Tech 1-Hole Lug is expertly crafted to support 1/0 AWG conductors, combining a standard barrel design with a sight window for accurate wire placement. Its robust tin-plated copper build ensures long-lasting durability and superior conductivity, while the green color code facilitates swift identification during installation. This lug offers a reliable solution for creating secure and efficient electrical connections in various applications.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-98016A |
| Manufacturer catalog number | SB112 |
| Conductor | 1 AWG copper, Class B stranded |
| Stud | 1/2 in, 1 hole |
| Barrel | Short, 0.80 in (E), chamfered entry, inspection window |
| Overall length | 2.11 in (B) |
| Tongue width | 0.673 Inch |
| Tongue thickness | 0.109 Inch |
| Die | Index 37, Green, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 130 A at 75 C |
| Color code | Green |
Key Features
- Expertly Crafted Copper Construction: Made from high-quality, tin-plated copper for excellent conductivity and long-term durability.
- 1/0 AWG Conductor Size: Specifically designed to accommodate 1/0 AWG cables, providing a reliable and secure connection.
- 1-Hole Configuration: The single-hole design ensures easy installation, promoting a stable electrical connection.
- Standard Barrel Design: Features a standard barrel for secure crimping, ensuring optimal contact between the wire and lug.
- Sight Window for Accurate Placement: The integrated sight window allows for precise wire insertion, ensuring a proper crimp.
- Green Color Code: The distinctive green color code simplifies identification, making installations faster and more efficient.
- Tin-Plated for Corrosion Resistance: The electro tin-plated finish enhances the lug’s corrosion resistance, making it suitable for a range of demanding environments.

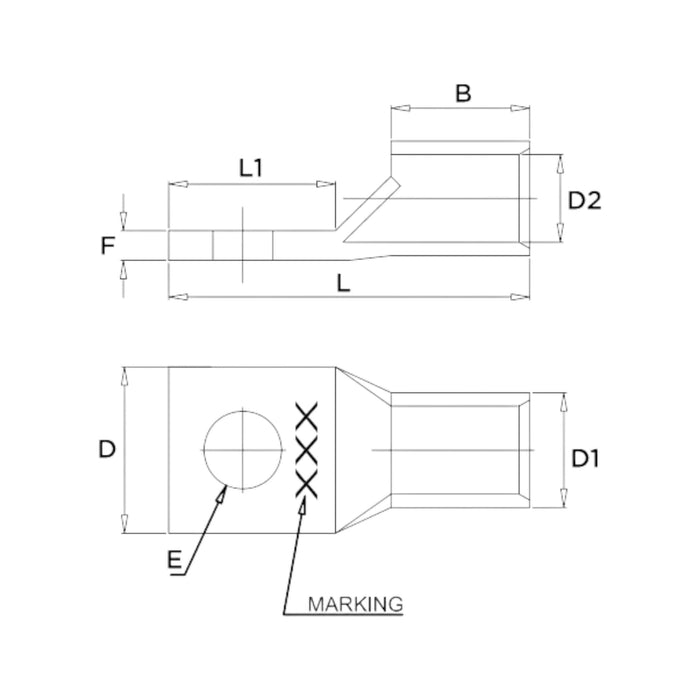

Technical Specifications
| Wire Size | 1 AWG |
|---|---|
| Stud Size | 1/2" Stud |
| Color | Green |
| Overall Length (L) | 53.6mm (2.1") |
| Length 1 (L1) | 28.7mm (1.10") |
| Diameter (D) | 17.8mm (0.70") |
| Diameter 1 (D1) | 11.7mm (0.46") |
| Diameter 2 (D2) | 9.1mm (0.35") |
| Width (B) | 20.3mm (0.80") |
| Width 1 (E) | 13.1mm (0.50") |
| Thickness (F) | 2.3mm (0.09") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 130A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
