Copper Short Barrel One Hole Compression Lugs 700 MCM 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98042B
1000 in stock
Open here

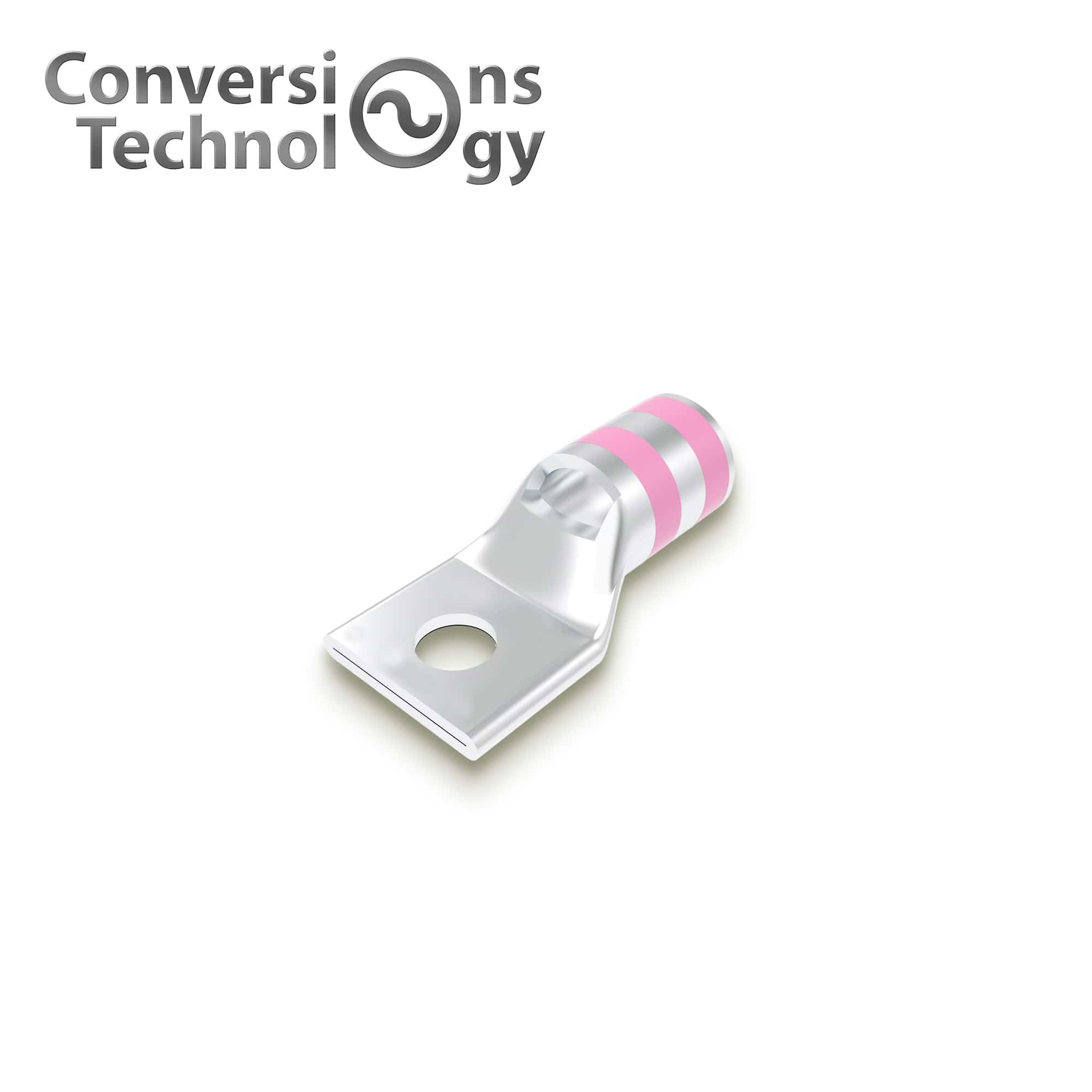

The Conversions Tech is a high-quality 1-hole copper compression lug designed for robust electrical connections. Featuring a conductor size of 700 MCM, a 5/8-inch bolt size, and a standard barrel, this lug ensures secure and efficient electrical terminations. Its tin-plated surface enhances durability and corrosion resistance, while the sight window allows for easy visual inspection during installation. The distinctive pink color code provides easy identification, making this lug a reliable and high-performance choice for a wide range of electrical applications.
Key Features
- High-Quality Copper Construction: Made from premium copper to ensure excellent electrical conductivity and long-lasting performance.
- 700 MCM Conductor Size: Designed for 700 MCM conductors, ideal for high-power, heavy-duty electrical systems.
- 5/8-Inch Bolt Size: Features a 5/8-inch bolt hole, providing a secure and stable connection to terminals.
- Standard Barrel Design: The standard barrel ensures a reliable and strong crimp connection for secure electrical terminations.
- Sight Window: Equipped with a sight window for visual inspection, making it easier to ensure proper wire insertion and crimping.
- Tin Plating: Coated with tin plating to enhance corrosion resistance, ensuring durability and reliable performance over time.
-
Pink Color Code: The distinctive pink color code simplifies identification during installations, improving efficiency and reducing installation errors.

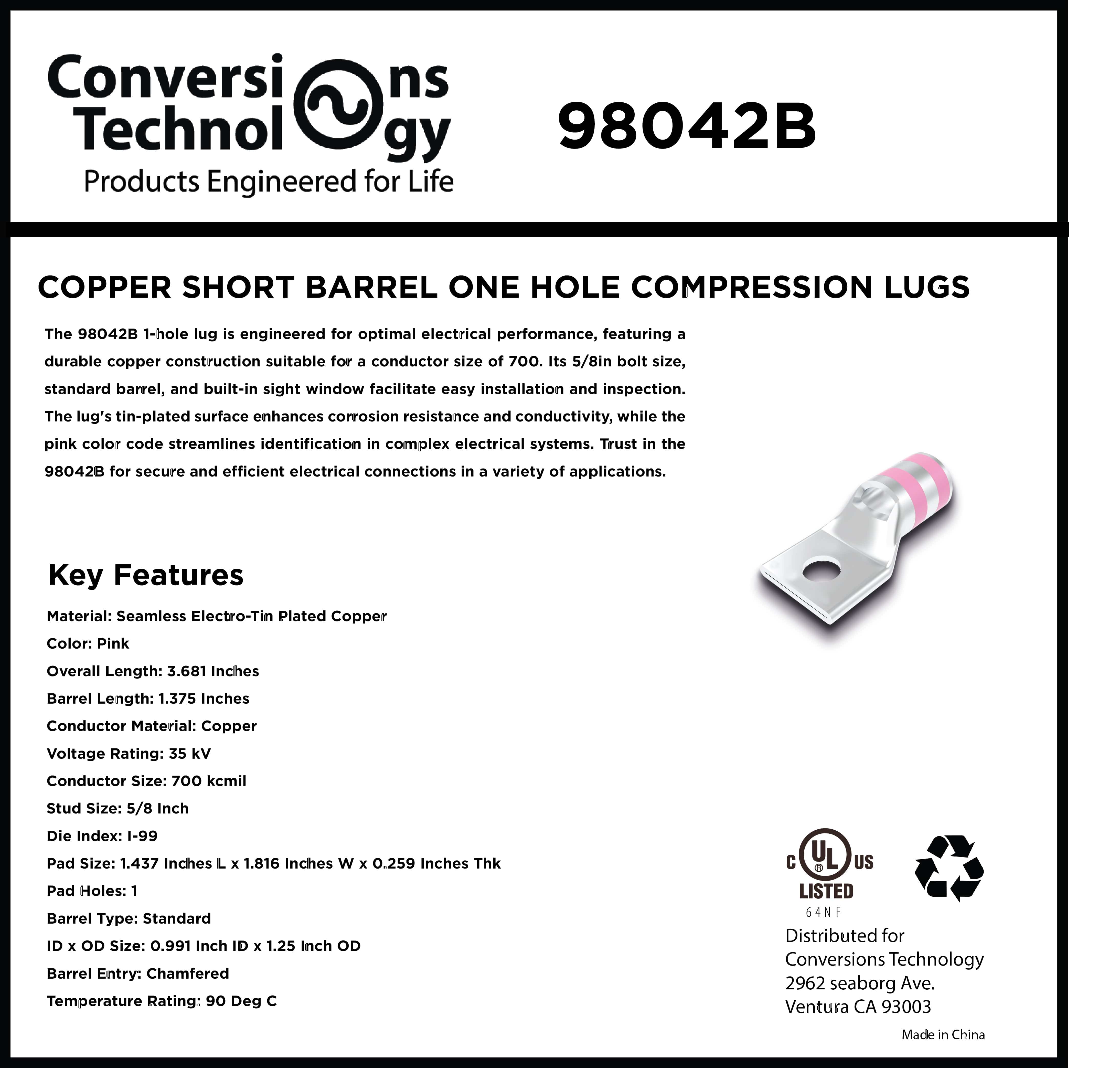

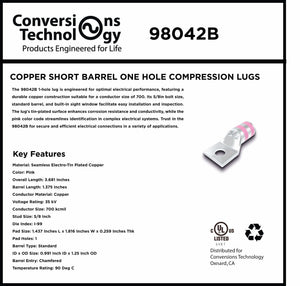

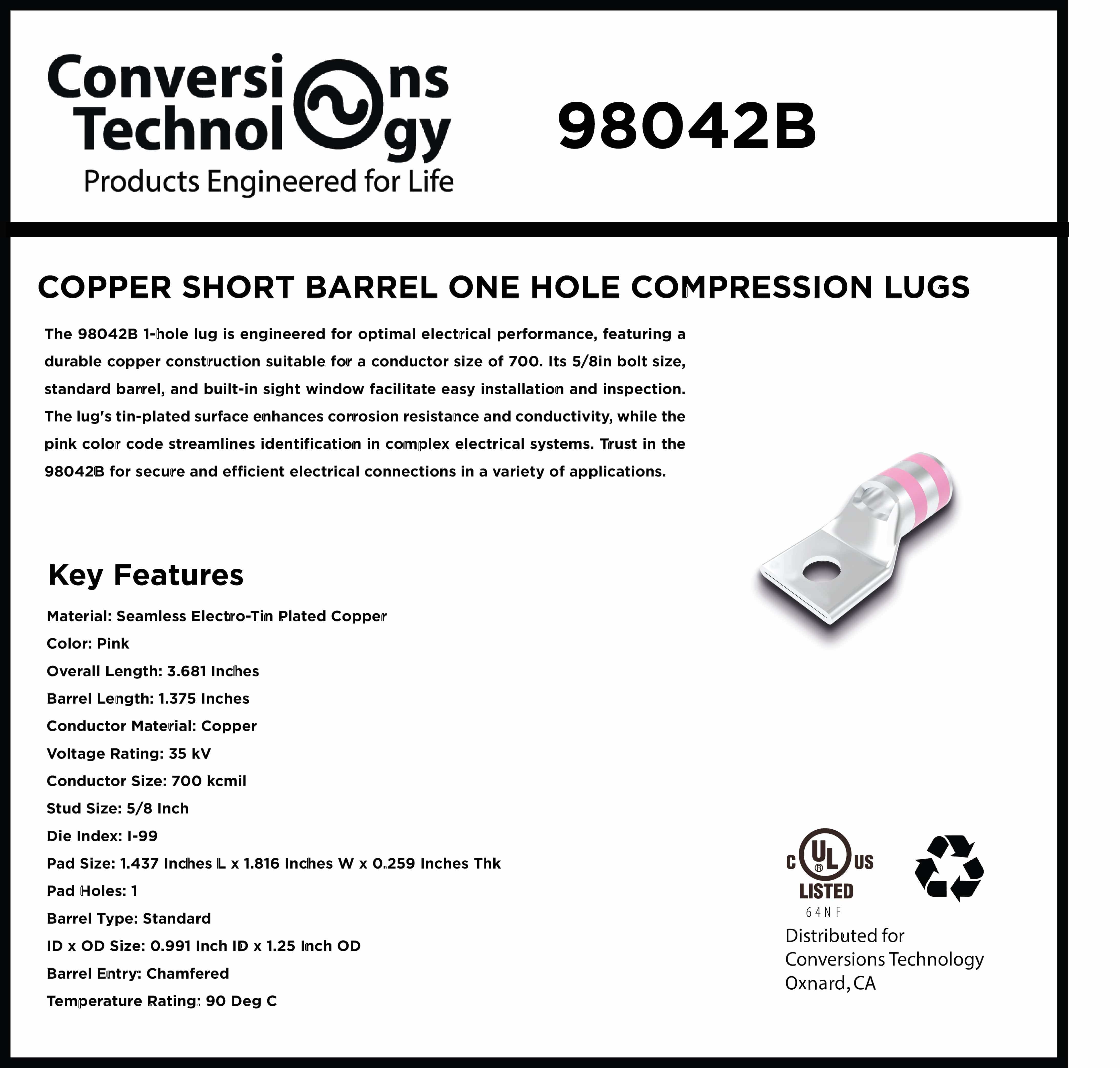

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Pink |
| Overall Length | 3.681 Inches |
| Barrel Length | 1.375 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 700 mcm |
| Stud Size | 5/8 Inch |
| Die Index | I-99 |

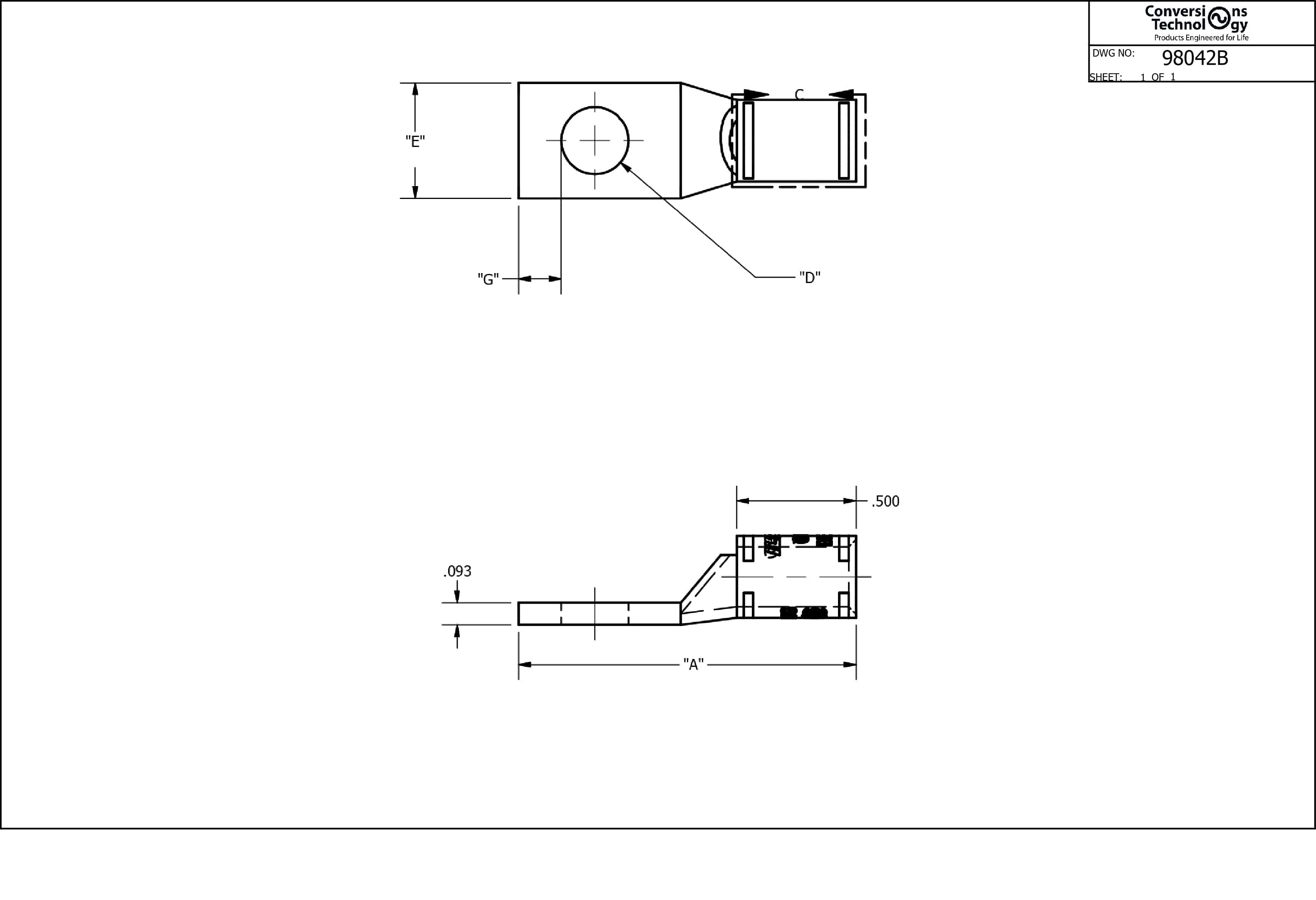

| Pad Size | 1.437 Inches L x 1.816 Inches W x 0.259 Inches Thk |
| Pad Holes | 1 |
| Barrel Type | Standard |
| ID x OD Size | 0.991 Inch ID x 1.25 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
