Long Barrel Compression Lug 6 AWG 5/16" Stud | 35kV 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-98065B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

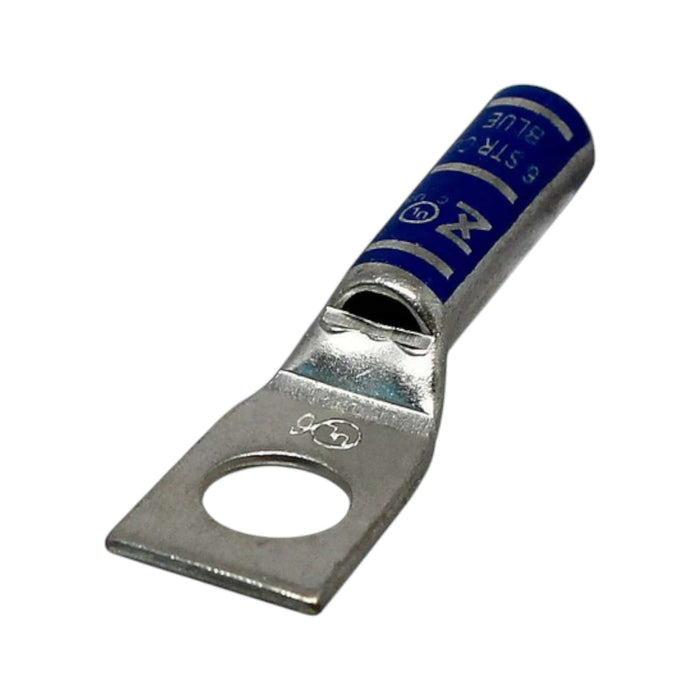

The Conversions Tech long barrel one-hole compression lug terminates 6 AWG copper conductors to 5/16-inch studs. The seamless electro-tin plated copper construction provides corrosion resistance and stable contact resistance over service life. Long barrel geometry increases pull-out strength and supports full compression crimping for medium-duty power distribution, panelboard terminations, and industrial control applications. Blue color coding enables quick field identification without sight window requirements.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 6 AWG
- Stud Size: 5/16 Inch
- Barrel Type: Long Barrel
- Barrel Length: 1.125 Inch
- Overall Length: 2.195 Inch
- Pad Size: 0.875 Inch L x 0.532 Inch W x 0.087 Inch Thk
- Pad Holes: 1
- Insulation ID/OD: 0.203 Inch ID x 0.295 Inch OD
- Barrel Entry: Chamfered
- Voltage Rating: 35 kV
- Temperature Rating: 90 Deg C
- Die Index: I-24
- Color Code: Blue
Cross-Reference
Equivalent to long barrel one-hole compression lugs from major manufacturers including Burndy, Panduit, and Ilsco. Conversions Tech lugs are engineered to US specifications and produced under certified partner factory agreements to deliver equivalent electrical performance at reduced procurement cost.
FAQ
What crimping tool and die are required for this lug?
Use a compression tool with die index I-24. The chamfered barrel entry facilitates wire insertion; ensure the conductor is fully inserted to the barrel stop before crimping.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating matches standard THHN/THWN-2 and XHHW-2 conductor insulations, allowing full use of 6 AWG copper ampacity tables per NEC.
Can this lug be used in medium-voltage applications?
The 35 kV voltage rating supports medium-voltage terminations where 6 AWG conductor is specified. Verify clearances and insulation coordination per applicable NEMA and IEEE standards.
