Long Barrel Compression Lug 4 AWG 3/8" Stud | 35kV 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-98066C
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

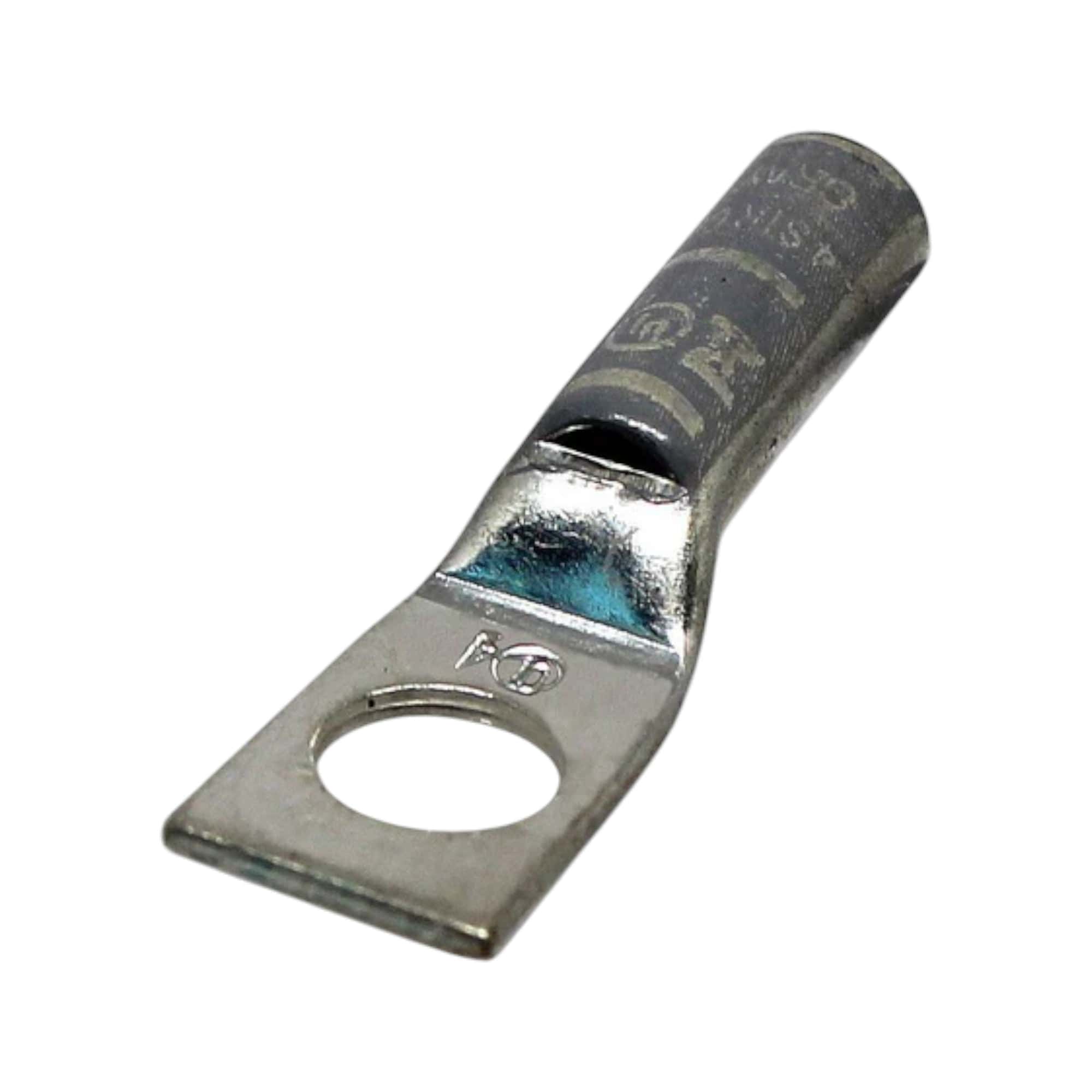

Long barrel one-hole compression lug for terminating 4 AWG stranded copper conductors in industrial, commercial, and utility power distribution systems. Electro-tin plated copper construction with chamfered barrel entry for wire insertion. Designed for high-current applications requiring secure, low-resistance connections to 3/8-inch studs.
Specifications
- Material: Seamless electro-tin plated copper
- Conductor compatibility: 4 AWG stranded copper
- Stud size: 3/8 inch
- Pad hole: Single-hole design
- Pad dimensions: 0.68 in (L) x 0.486 in (W) x 0.093 in (Thk)
- Overall length: 2.039 inches
- Barrel length: 1.125 inches (long barrel)
- Barrel entry: Chamfered
- Insulation ID/OD: 0.25 in (ID) x 0.343 in (OD)
- Voltage rating: 35 kV
- Operating temperature rating: 90°C (194°F)
- Crimp die index: I-29
- Color code: Gray
Cross-Reference
Equivalent to long barrel one-hole compression lugs from major manufacturers. Form factor matches industry-standard 4 AWG long barrel lugs for 3/8-inch stud termination.
FAQ
What crimp tool and die are required for this lug?
Use a compression tool with die index I-29. Verify proper crimp placement using the barrel length specification (1.125 inches) to ensure full compression over the conductor.
Is this lug rated for the conductor insulation size?
The insulation ID/OD of 0.25 in x 0.343 in indicates compatible insulation diameters. Verify your conductor insulation falls within this range for proper fit.
Can this lug be used in 35 kV applications?
The 35 kV voltage rating applies to the lug construction. Actual system voltage capability depends on complete installation geometry, clearances, and insulation coordination per applicable codes.
