Long Barrel Compression Lug 1 AWG 1/2" Bolt | 35kV 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-09857
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

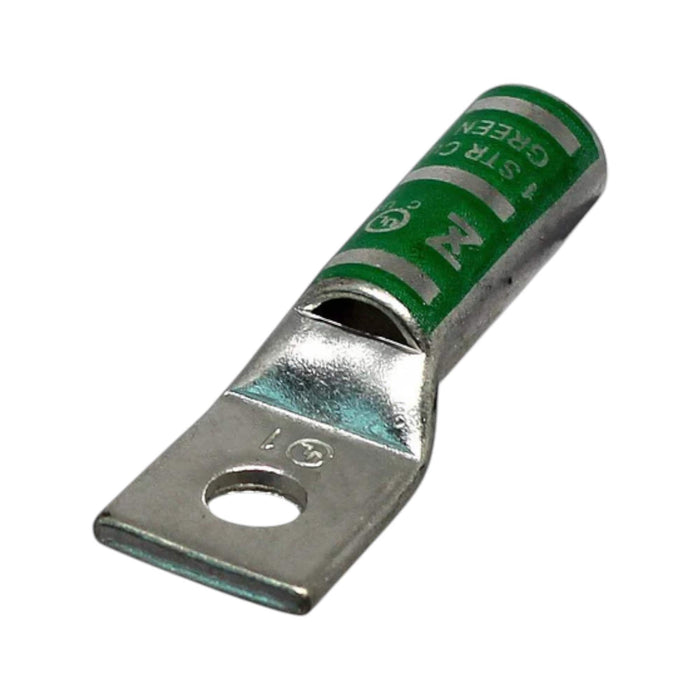

The Conversions Tech long barrel one-hole compression lug is engineered for secure termination of 1 AWG copper conductors. This tin-plated copper lug features a 1/2-inch bolt hole and extended barrel length for enhanced crimping surface area, delivering reliable electrical connections in power distribution, industrial equipment, and commercial electrical installations. The green color code enables quick field identification without requiring a sight window, streamlining installation workflows.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 1 AWG
- Stud Size: 1/2"
- Barrel Type: Long Barrel
- Barrel Length: 1.375"
- Overall Length: 2.58"
- Pad Size: 0.875" L x 0.673" W x 0.109" Thk
- Pad Holes: 1
- Insulation ID/OD: 0.359" ID x 0.468" OD
- Barrel Entry: Chamfered
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-37
- Color Code: Green
Cross-Reference
Equivalent to long barrel one-hole compression lug form factors from major manufacturers including Burndy, Panduit, and Ilsco. Designed to meet industry-standard dimensional and performance specifications at competitive B2B pricing.
FAQ
What crimping tool die do I need for this lug?
Use die index I-37. Verify your compression tool manufacturer's die chart to confirm compatibility with 1 AWG long barrel lugs.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating matches standard THHN/THWN-2 and XHHW-2 conductor ratings, allowing full use of 1 AWG copper ampacity per NEC tables.
Does the chamfered barrel entry require pre-twisting the conductor?
No. The chamfered entry facilitates straight insertion of stranded 1 AWG copper. Strip conductor to full barrel depth (1.375") and insert fully before crimping.
