Copper Long Barrel One Hole Compression Lug 700 MCM 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98081B
1000 in stock
Open here

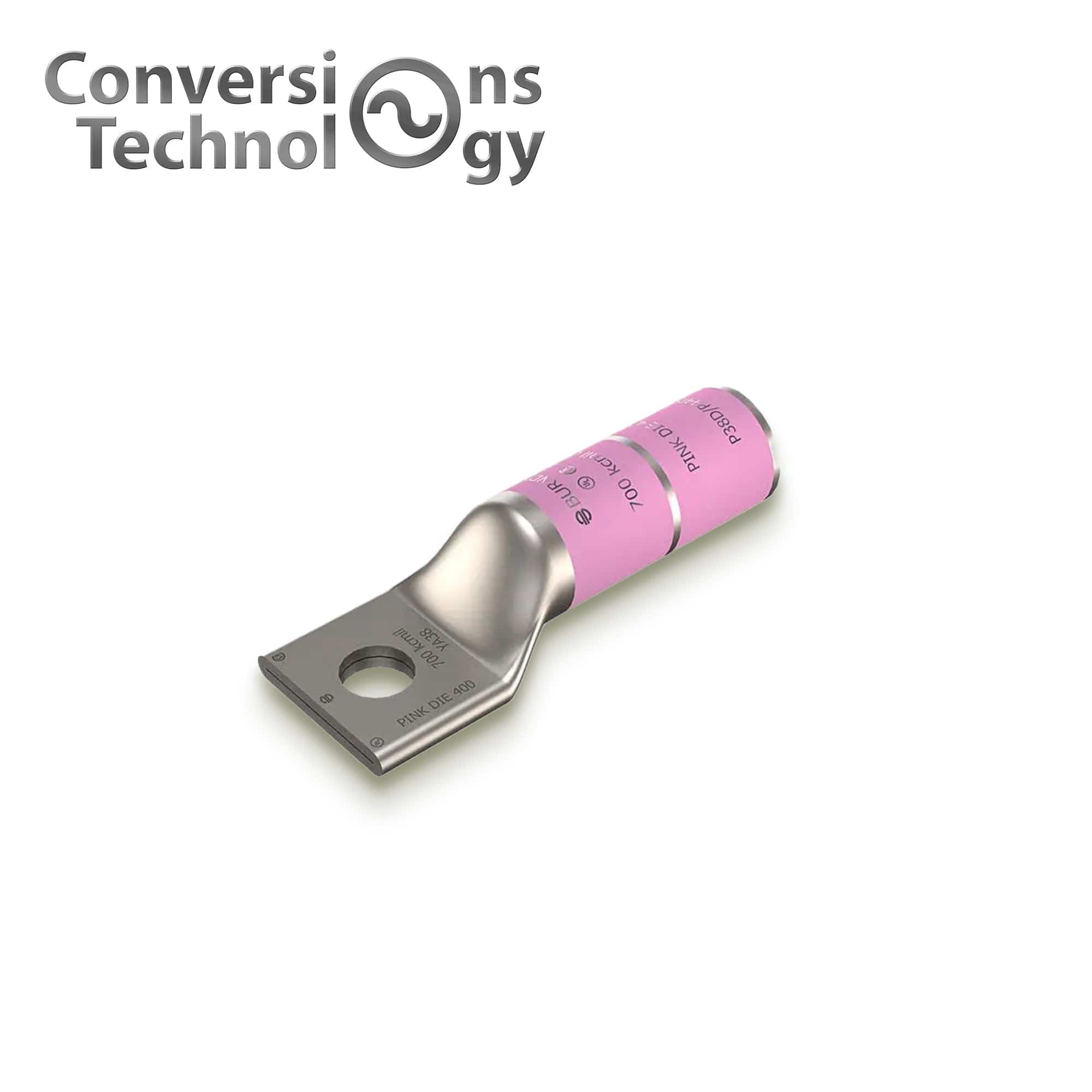

The Conversions Tech high-quality copper compression lug designed for 700 MCM conductors, featuring a 1-hole configuration, a 5/8-inch bolt size, and a long barrel for secure and stable connections. Its distinctive pink color code ensures easy identification, and while it does not include a sight window, the tin-plated finish enhances conductivity and corrosion resistance. This lug provides a reliable and durable solution for electrical connections, making it an ideal choice for demanding applications where long-lasting performance and efficient conductivity are essential.
Key Features
- Copper Construction – Made from high-quality copper, providing excellent electrical conductivity and durability.
- 700 MCM Conductor Size – Designed for 700 MCM wire, making it ideal for large electrical systems and heavy-duty applications.
- 1-Hole Design – Features a single hole for secure and easy fastening to the system.
- 5/8-inch Bolt Size – The 5/8-inch bolt size ensures a stable and secure connection.
- Long Barrel – The long barrel design ensures secure wire insertion and consistent compression for optimal conductivity.
- Tin Plating – Tin-plated surface enhances corrosion resistance, ensuring the lug performs well in various environmental conditions.
-
Pink Color Code – The distinctive pink color code allows for easy identification and ensures compatibility with standard color-coding systems.

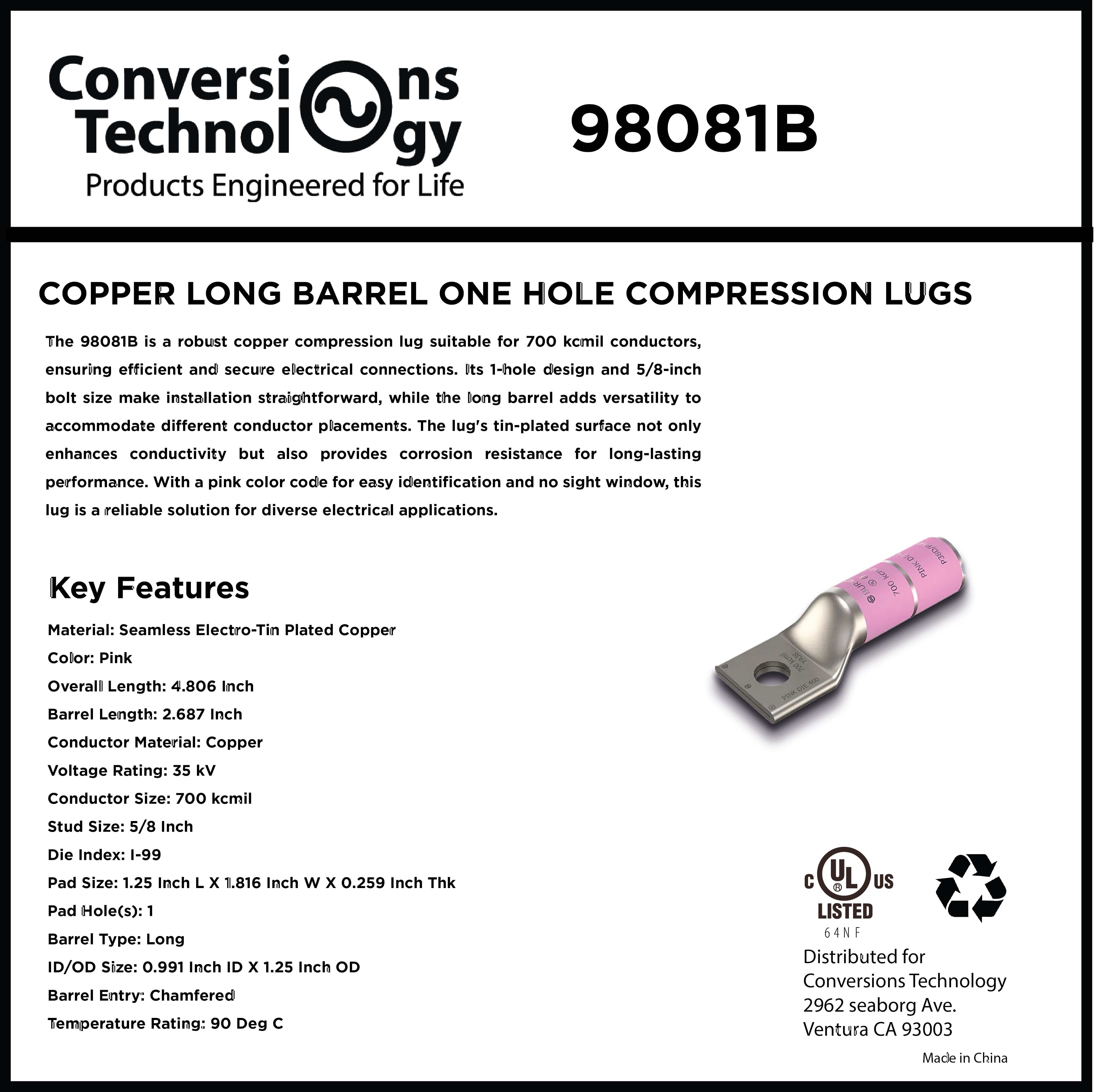

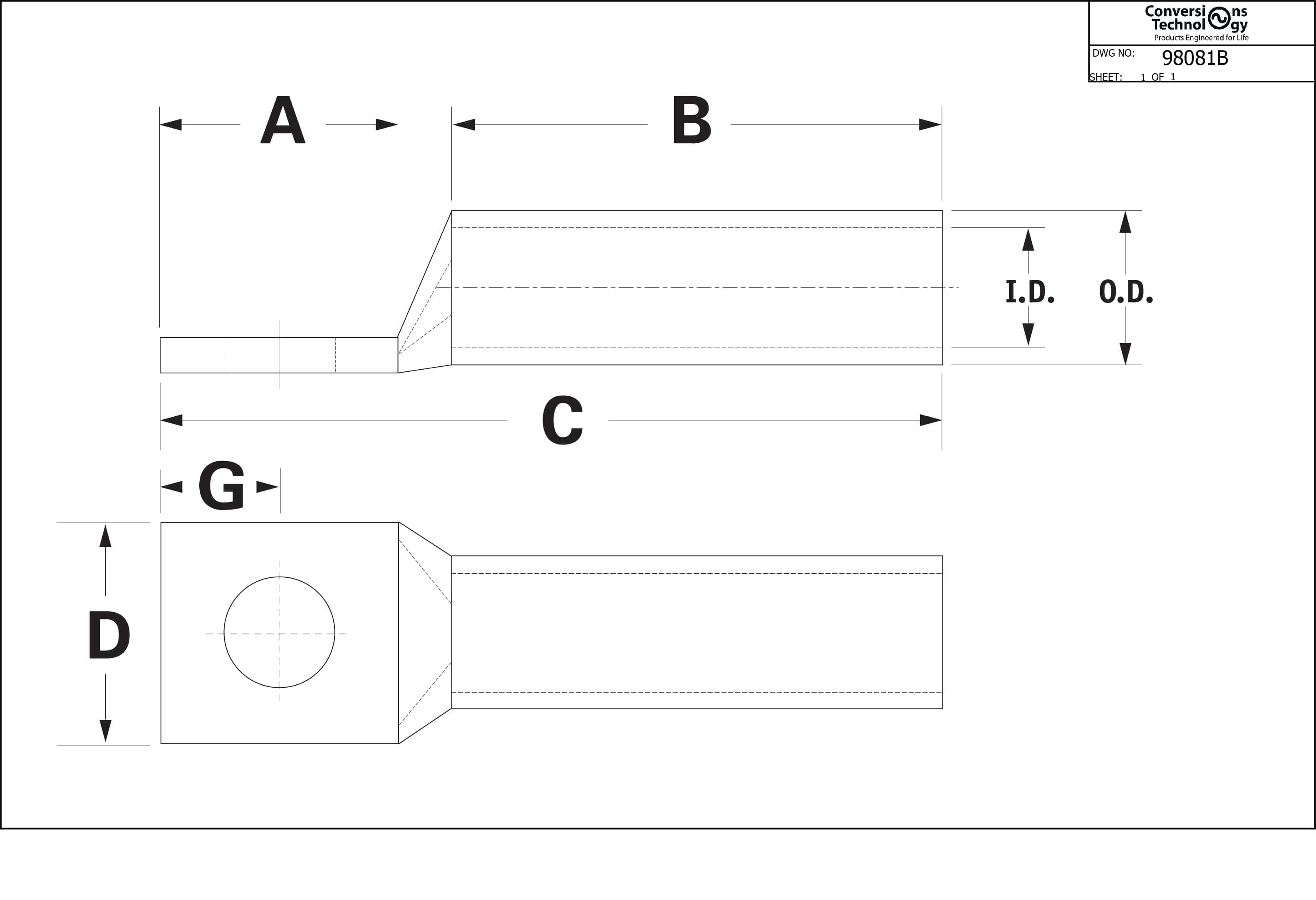

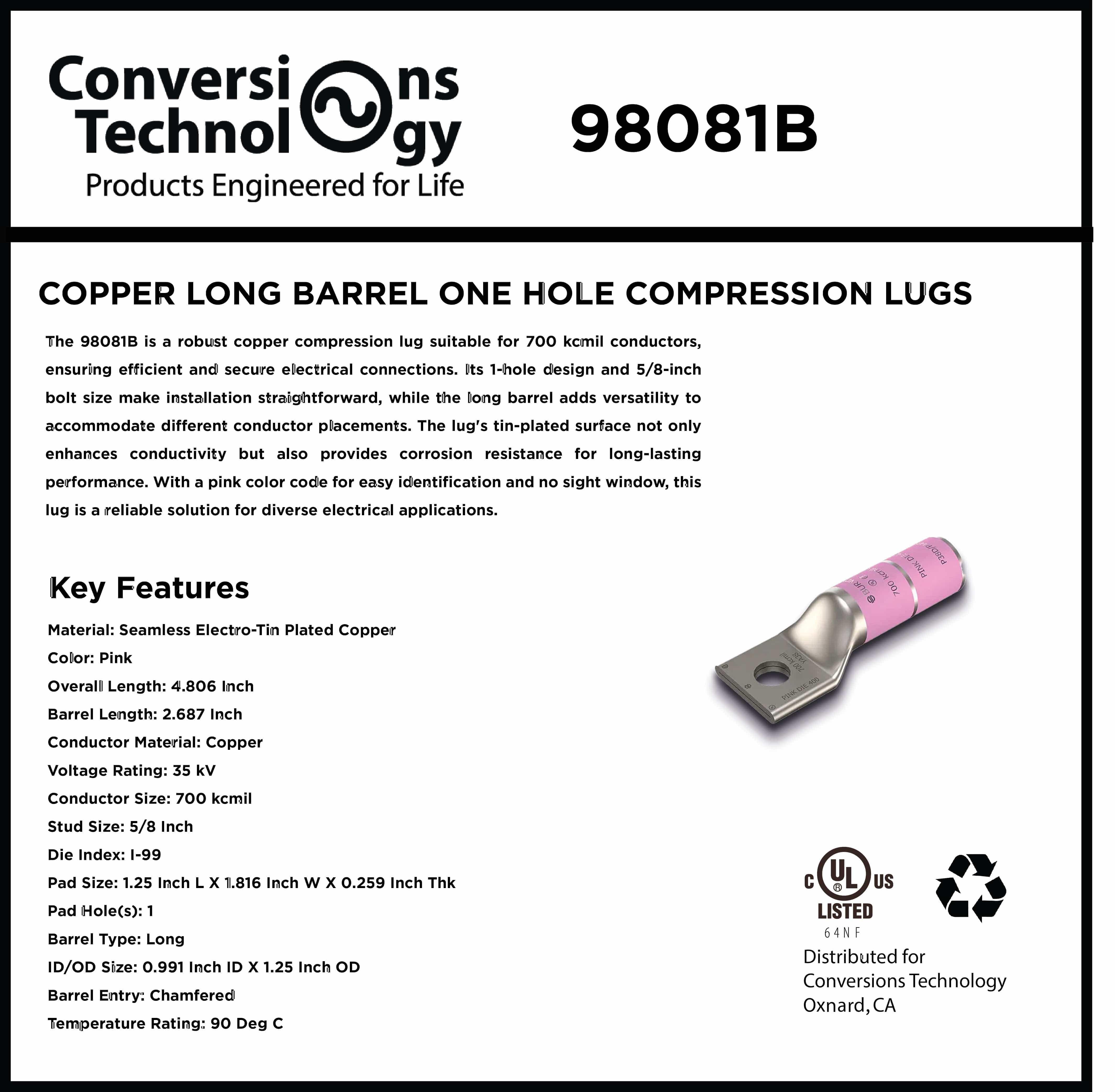

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Pink |
| Overall Length | 4.806 Inch |
| Barrel Length | 2.687 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 700 MCM |
| Stud Size | 5/8 Inch |
| Die Index | I-99 |
| Pad Size | 1.25 Inch L X 1.816 Inch W X 0.259 Inch Thk |
| Pad Hole(s) | 1 |
| Barrel Type | Long |
| ID/OD Size | 0.991 Inch ID X 1.25 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
