Copper Long Barrel One Hole Compression Lug 1000 MCM 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98082C
1000 in stock
Open here

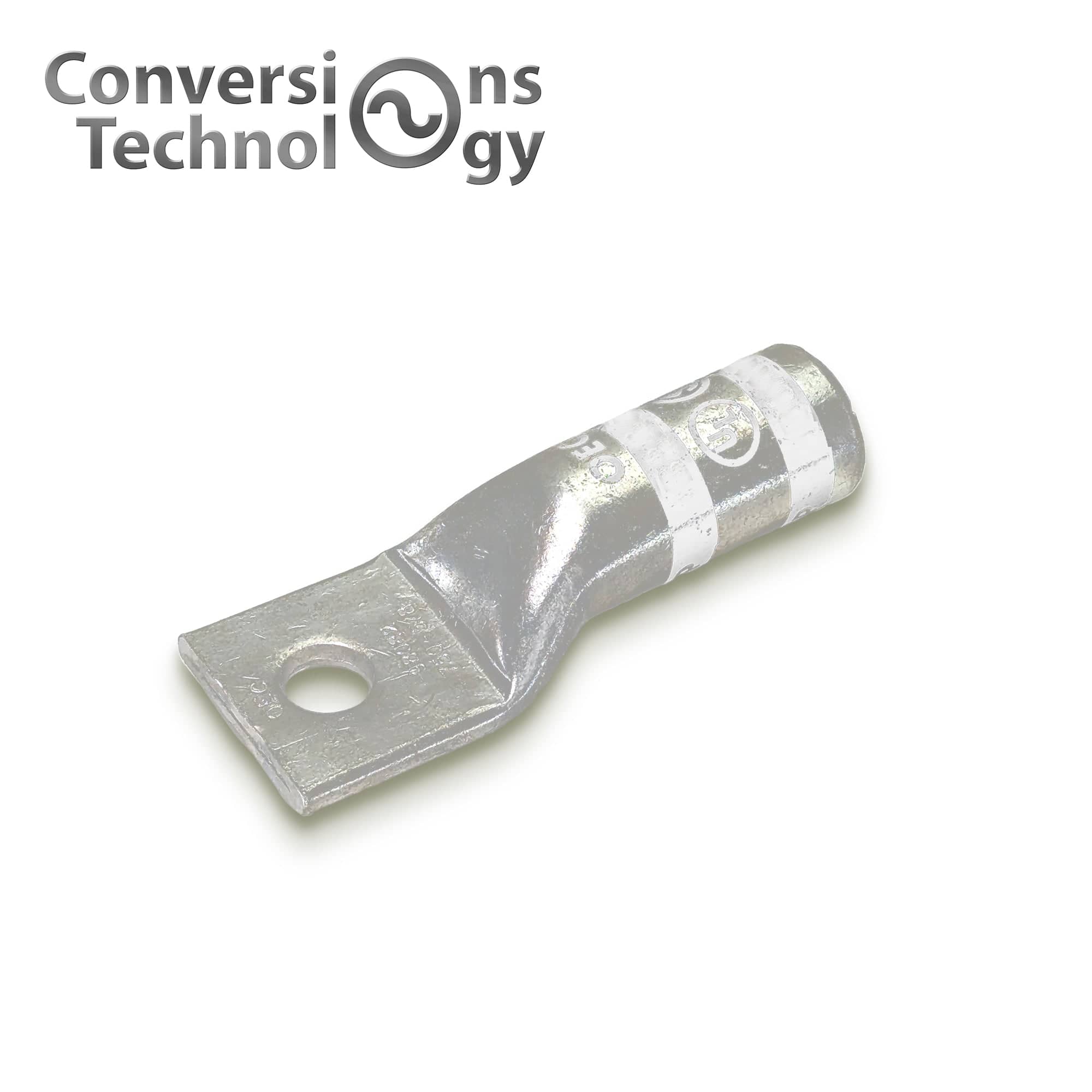

The Conversions Tech robust copper compression lug designed for 1000 MCM conductors, ensuring secure and efficient electrical connections. It features a single hole, a 5/8-inch bolt size, and a long barrel for enhanced durability and stability. The lug is tin-plated, providing superior corrosion resistance, and is marked with a white color code for easy identification. Although it does not include a sight window, it guarantees optimal conductivity and reliable performance in a variety of electrical applications, making it a trusted choice for high-power connections.
Key Features
- Copper Construction – Provides excellent electrical conductivity, ensuring reliable and efficient performance.
- 1000 MCM Conductor Size – Designed for 1000 MCM wire, making it suitable for large conductors in heavy-duty electrical applications.
- 5/8-inch Bolt Size – Features a standard 5/8-inch bolt size for secure and stable connections.
- Single Hole Design – Offers a single attachment point for easy and secure fastening.
- Long Barrel – The long barrel ensures secure wire insertion and consistent compression for optimal connection.
- Tin Plating – The tin-plated finish enhances corrosion resistance, ensuring long-lasting durability.
-
White Color Code – The white color code allows for quick identification and ensures compatibility with standard color-coding systems.

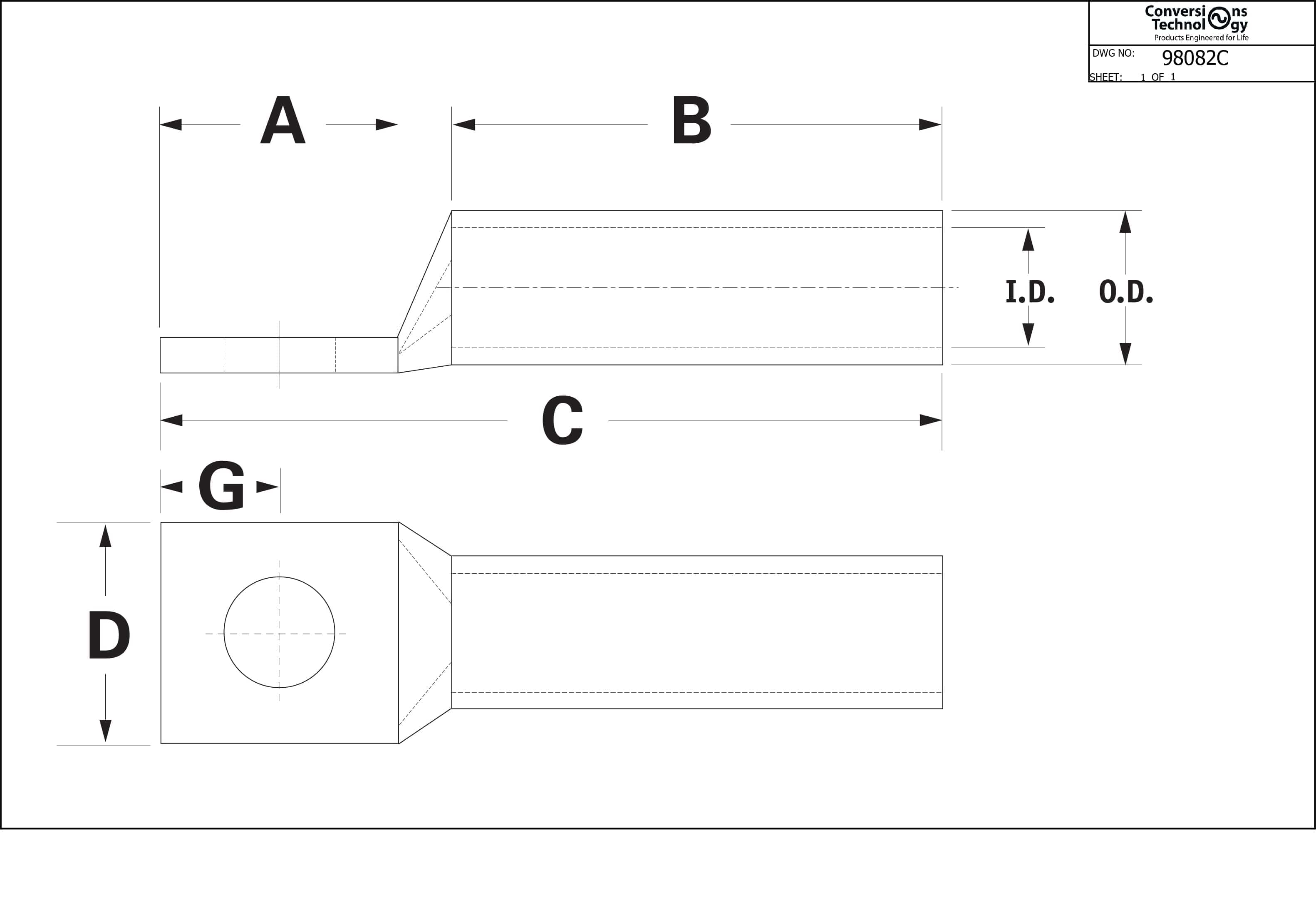

Technical Specifications
| Material | Seamless Electro Tin-Plated Copper |
|---|---|
| Color | White |
| Overall Length | 5.275 Inch |
| Barrel Length | 3 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1000 MCM |
| Stud Size | 5/8-Inch |
| Die Index | I-125 |
| Pad Size | 1.25 Inch Length x 2.169 Inch Width x 0.328 Inch Thickness |
| Pad Hole(s) | 1 |
| Barrel Type | Long |
| Inner Diameter | 1.172 Inch |
| Outer Diameter | 1.5 Inch |
| Cable Entry | Chamfered Type |
