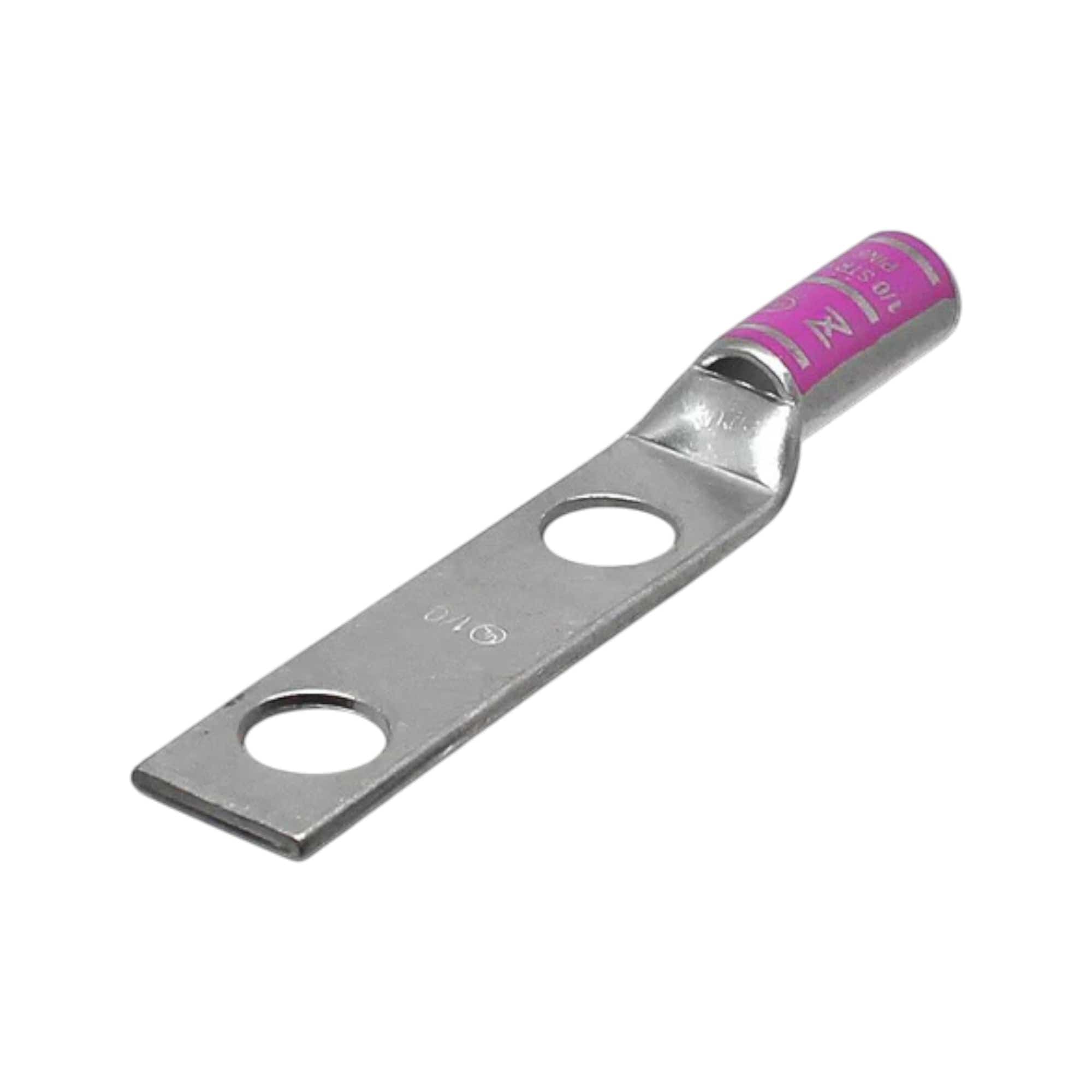

Copper Long Barrel Two Hole Compression Lugs 1/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98095
1000 in stock
Open here
The Conversions Tech robust copper compression lug is designed to provide secure, efficient, and durable electrical connections with 1/0 AWG conductors. Featuring a 1/4-inch bolt size, 1-inch hole spacing, and a long barrel for added stability, this high-quality lug ensures a strong and reliable connection. Its tin-plated finish enhances conductivity and provides superior corrosion resistance, making it ideal for demanding electrical environments. The distinctive pink color code facilitates easy identification, making it a reliable and practical choice for a wide range of electrical applications requiring long-lasting performance.
Key Features
-
Seamless Electro-Tin Plated Copper Material: Ensures conductivity and corrosion resistance for reliable electrical connections.
-
Pink Color: Facilitates easy identification with a distinctive color code.
-
3.793 Inch Overall Length: Provides ample length for secure conductor termination.
-
1.5 Inch Barrel Length: Accommodates 1/0 AWG conductors for efficient crimping.
-
35 kV Voltage Rating: Suitable for applications requiring high voltage resistance.
-
1/0 AWG Conductor Size: Designed to handle 1/0 AWG conductors for versatility.
-
1/4 Inch Stud Size: Compatible with common stud sizes for easy installation.
-
I-42 Die Index: Indicates compatibility information for proper crimping tools.
-
1.937 Inch L x 0.738 Inch W x 0.125 Inch Thk Pad Size: Provides a stable mounting surface for the lug.
-
2 Pad Holes: Allows flexibility in conductor termination and installation.
-
1 Inch Pad Hole Spacing: Facilitates consistent and efficient spacing in various applications.
-
Long Barrel Type: Enhances flexibility and ease of use during installation.
-
0.39 Inch Inner Diameter x 0.515 Inch Outer Diameter: Accommodates specific wire dimensions for secure connections.
-
Barrel Type Chamfered Entry: Streamlines conductor insertion, improving installation efficiency.
- Temperature Rating 90°C: Suitable for applications with elevated temperature requirements.
Technical Specifications
| Wire Size | 1/0 AWG |
|---|---|
| Stud Size | 1/4" |
| Color | Pink |
| Overall Length (L) | 80.1mm (3.15") |
| Neck Length (L1) | 43.8mm (1.73") |
| Neck Length (L2) | 25.4mm (1.00") |
| Outer Diameter (D) | 18.4mm (0.73") |
| Inner Diameter (D1) | 13.0mm (0.51") |
| Hole Diameter (D2) | 10.2mm (0.40") |
| Width (B) | 29.8mm (1.18") |
| Hole Spacing (E) | 7.1mm (0.28") |
| Thickness (F) | 2.7mm (0.11") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 230A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
