Two-Hole Copper Compression Lug 8 AWG 1/4" Stud | Long Barrel, 35 kV, 90°C
Shipping calculated at checkout
SKU: 210-98084B
990 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

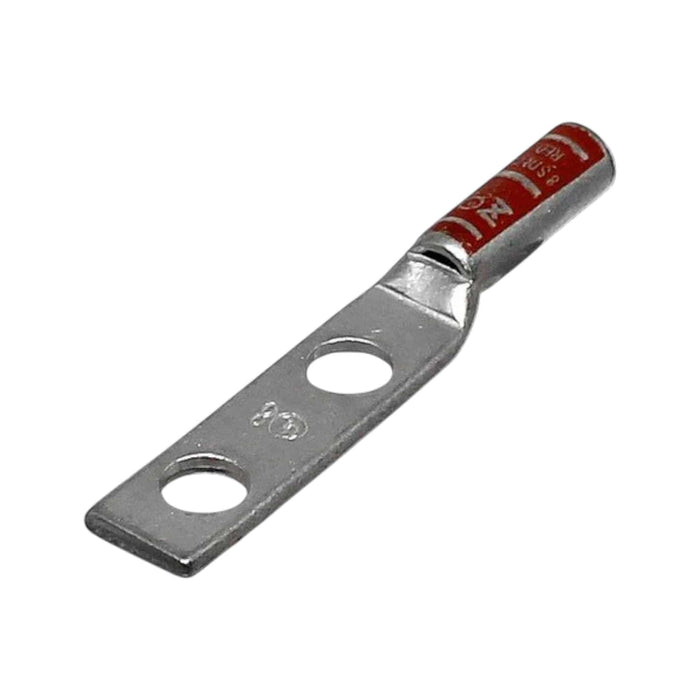

The Conversions Tech two-hole copper compression lug is engineered for terminating 8 AWG copper conductors in industrial and utility applications. The long barrel design maximizes contact surface area for high-reliability connections, while the dual-hole pad provides mechanical redundancy for critical circuits. Tin-plated seamless copper construction resists oxidation and ensures consistent conductivity over the installation lifecycle. The red color code allows immediate conductor size identification in crowded termination cabinets. Typical applications include switchgear terminations, transformer connections, motor control centers, and power distribution blocks where vibration resistance and long-term stability are required.
Specifications
- Conductor Size: 8 AWG
- Material: Seamless Electro-Tin Plated Copper
- Barrel Type: Long Barrel with Chamfered Entry
- Stud Size: 1/4 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1 Inch
- Pad Size: 1.437 Inch L x 0.486 Inch W x 0.093 Inch Thk
- Barrel Length: 0.812 Inches
- Overall Length: 2.444 Inches
- Insulation ID/OD: 0.179 Inch ID x 0.272 Inch OD
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-21
- Color Code: Red
Cross-Reference
Equivalent to Burndy YAV, Panduit LCA, and Ilsco OSL two-hole long barrel compression lug configurations. Conversions Tech lugs are engineered to US specifications and manufactured to equivalent dimensional and performance standards at lower unit cost.
FAQ
What crimping die do I need for this lug?
Use die index I-21. Verify your compression tool manufacturer's chart to confirm die compatibility with your specific tool model.
Is this lug rated for medium voltage applications?
Yes. The 35 kV voltage rating suits medium voltage terminations. Ensure proper insulation and clearances per NEC and local codes.
Why choose a long barrel over a standard barrel?
The 0.812-inch long barrel increases conductor contact area and mechanical grip, reducing resistance and improving pull-out strength in high-vibration environments.
