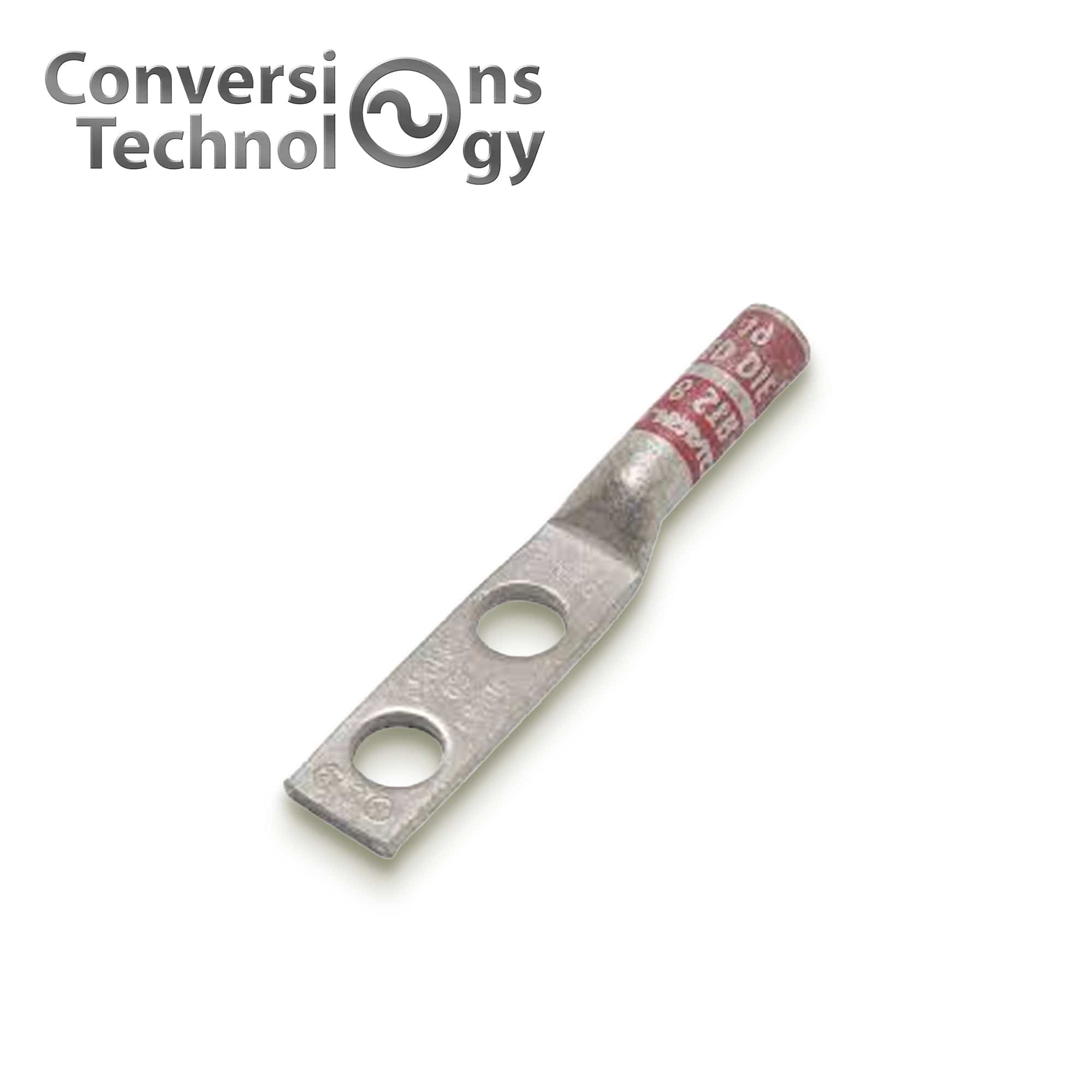

Copper Long Barrel Two Hole Compression Lugs 8 AWG 5/16 Inch Bolt Size
Shipping calculated at checkout
SKU: 210-98084E
1000 in stock
Open here
The Conversions Tech 2-hole copper compression lug designed for 8 AWG conductors, featuring a long barrel, 5/16-inch bolt size, and 1 3/4-inch hole spacing. Its tin-plated finish provides excellent corrosion resistance, while the distinctive red color code ensures easy identification. This lug guarantees secure and reliable electrical connections, making it an ideal choice for various electrical applications.
Key Features
- Designed for 8 AWG conductors - Specifically made to accommodate 8 AWG gauge cables, ensuring a secure and reliable connection.
- 5/16-inch bolt size - Compatible with 5/16-inch bolts, providing stable and reliable attachment to electrical components.
- Two holes for connection - Offers flexibility for different wiring configurations, ensuring a secure and stable attachment.
- 1 3/4-inch hole spacing - Provides precise alignment for secure installation.
- Tin-plated finish - Offers excellent corrosion resistance, enhancing the durability and longevity of the lug.
- Red color code - Easily identifiable for quick and accurate conductor size identification during installation.
-
Reliable electrical connections - Guarantees secure, stable, and efficient connections across a range of electrical applications.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Red |
| Overall Length | 2.944 Inches |
| Barrel Length | 0.812 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 8 AWG |
| Stud Size | 5/16 Inch |
| Die Index | I-21 |
| Pad Size | 1.937 Inch L x 0.593 Inch W x 0.093 Inch Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 3/4 Inch |
| Barrel Type | Long Barrel with Chamfered Entry |
| Insulation ID/OD | 0.179 Inch ID x 0.272 Inch OD |
| Temperature Rating | 90°C |
Why Pros Buy Direct from Conversions Tech
Engineered in the USA. Our U.S.-based engineering team designs and specifies our core product lines, and every product we carry — designed in-house or built to our exact specifications by certified partner factories — is quality-verified before it ships. UL/CSA listed where required, NEC compliant.
Cross-reference savings. Direct equivalents to Burndy, Hubbell, and other OEM part numbers at up to 30% less — same specs, same certifications, without the big-brand markup.
Real technical support. Need a torque spec, die reference, or an OEM quote? You’ll speak directly with the Conversions Tech engineering desk — not a script reader — for instant answers, custom kitting, and private-label options.
Fast US fulfillment. Orders in by 2PM ET ship same day from our US warehouse, nationwide ground and expedited.
