Long Barrel Two-Hole Compression Lug 6 AWG #10 Bolt | 35kV 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-98085A
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

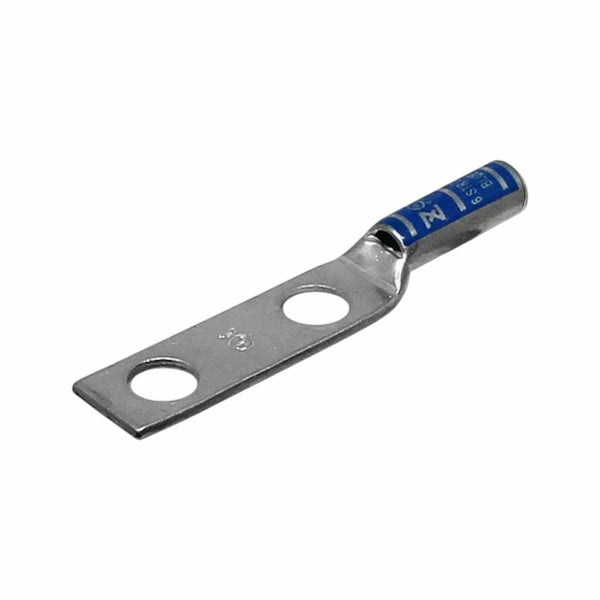

Long barrel two-hole compression lug engineered for 6 AWG copper conductors. Features #10 bolt mounting with dual pad holes on 1/2 inch spacing, providing mechanical redundancy for critical power distribution, transformer terminations, and industrial panel connections. The long barrel design maximizes contact surface area for full-tension crimps, while the tin-plated seamless copper construction resists oxidation in standard indoor and outdoor electrical environments.
Specifications
- Conductor size: 6 AWG
- Stud size: #10
- Pad holes: 2
- Pad hole spacing: 1/2 inch
- Barrel length: 1.125 inches
- Overall length: 2.57 inches
- Pad size: 1.25 inch (L) x 0.411 inch (W) x 0.087 inch (Thk)
- Fitting size: 0.203 inch ID x 0.295 inch OD
- Material: Seamless electro-tin plated copper
- Color code: Blue
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-24
- Entry type: Chamfered barrel type entry
- Design type: Long barrel type
Cross-Reference
Equivalent form factor to Burndy YAV-L, Panduit LCBX, and Ilsco LBLF series two-hole long barrel compression lugs. Used in utility substations, commercial switchgear, and OEM power equipment where dual-bolt mounting improves mechanical stability under fault conditions.
FAQ
What crimping die is required for this lug?
Die index I-24. Verify die compatibility with your crimping tool manufacturer specifications before installation.
Can this lug be used for 6 AWG stranded and solid copper?
Yes. The 0.203 inch ID barrel accommodates standard 6 AWG copper conductor constructions. Chamfered entry facilitates conductor insertion.
Is this suitable for 35kV medium voltage applications?
The lug is rated 35kV. Confirm overall system insulation and clearances meet applicable NEC and utility standards for the specific installation voltage class.
